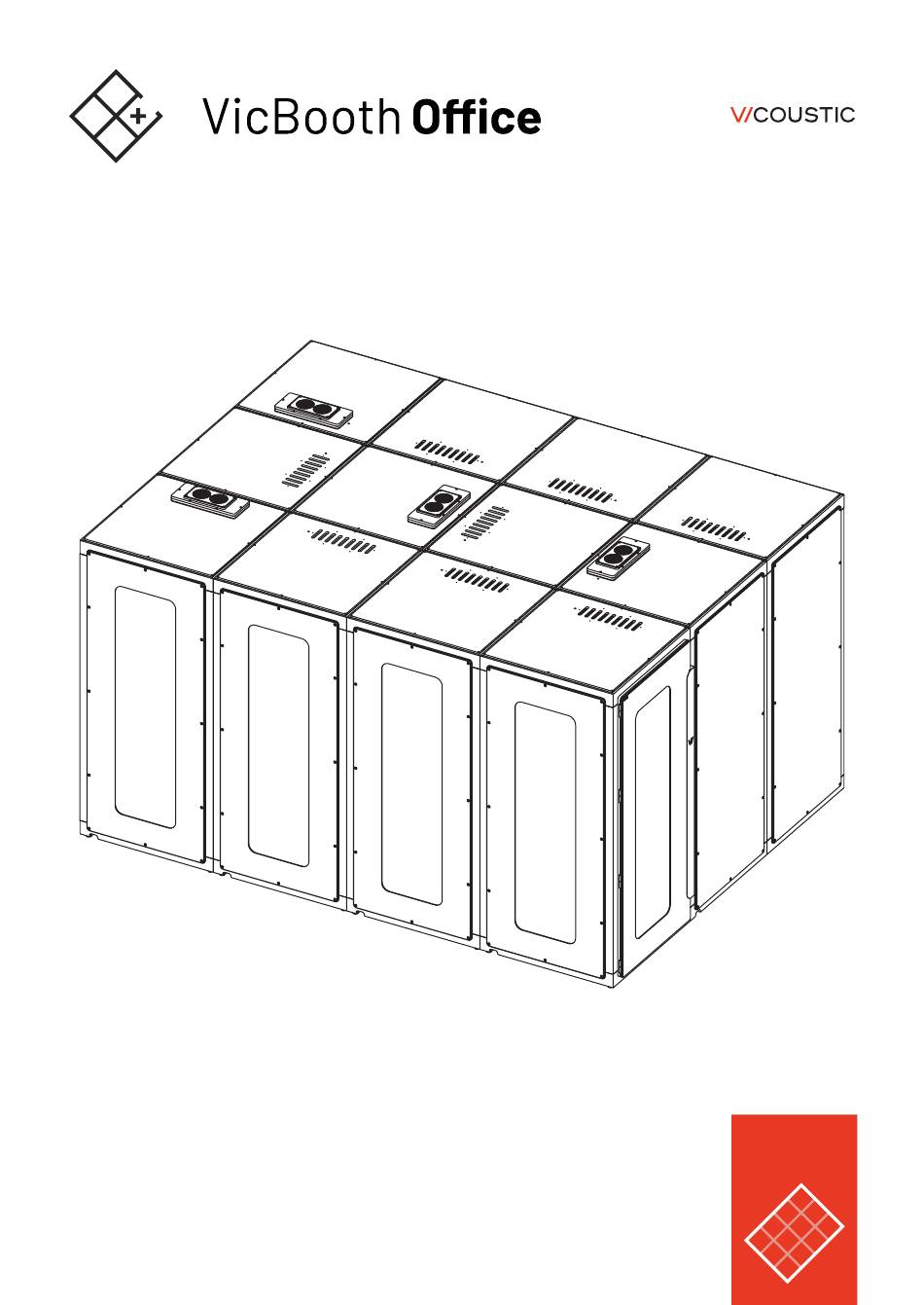

- Page 1 Installation Manual...
-
Page 2: Material Needed
Material Needed Included Ceiling | 12 uni. Door | 1 uni. Lateral | 13 uni. Floor | 12 uni. Structure | 24 uni. 192 uni. 96 uni. 96 uni. 78 uni. 312 uni. 78 uni. 36 uni. 6 uni. 48 uni. 96 uni. - Page 3 48 uni. 48 uni. 4 uni. 3 uni. 6 uni. Ventilation unit | 4 uni. Insulation Seal | 4 uni. USB power adapter | 4 uni. Remote control electrical outlet | 4 uni. USB extension cable (0.3m) | 4 uni. USB extension cable (3m) | 4 uni.
-
Page 4: Exploded View
Exploded View... - Page 5 Remove the floor panels and the 3 PET layers from the floor structure. Unscrew the floor levelers to half their length (about 15 mm - 0.59 in), with exception of the center one, that should stay fully retracted. ~15mm | 0.59’ ’ Level the floor structure using the 5mm Hex Key (X) - adjust the center leveler last and make sure it stays in contact with the floor.
- Page 6 Place the Floor Structures on the ground according to the diagram. Trim the supplied foam seal to match the base width. Apply foam seal on one side of the contact surface to ensure an acoustic seal. Step’ s Material Foam seal scissors...
- Page 7 Join the floor structures according to the diagram using the 63mm screws (K) and the flat heads (E). Use the 4mm Hex Keys (X). Step’ s Material...
- Page 8 Readjust the level of the floor on both axes with the assistance of a bubble level. Once the structure is levelled on both axes, the center levellers that were collected should be adjusted so that they touch the floor. Step’ s Material Bubble Level down The precise leveling of the floor structure is crucial for the correct assembly and operation of the VicBooth - use...
- Page 9 Insert the wooden dowels (A) in the floor structure according to the diagram. Step’ s Material Screw the metal fittings (B) in the floor structure according to the diagram. Step’ s Material...
- Page 10 Insert the locking cams (C) in the Structure Pillars and insert the wooden dowels (A) in the top end of the structure pillars. Step 1 Step’ s Material 1 uni. Step 2...
- Page 11 Apply the foam seal on one side of the contact surface of the structure pillars to ensure an acoustic seal. (only applies on 10 pillars, on the side that is in contact between the parts). Step’ s Material Foam seal...
- Page 12 Fit the structure pillars on the floor structure according to the diagram and rotate the locking cams (C) by hand using a screwdriver - make sure the beams are completely inserted before rotating the locking cams to the locked position. Step’...
- Page 13 Join the structure pillars using the 31mm screws (G) and the flat heads (E). Use the 4mm Hex Keys (X). Step’ s Material...
- Page 14 Remove the top covers and the ceiling panels from the ceiling structure - the PET and Vicycle layers stay attached to the top cover. Screw the metal fittings (B) in the ceilling structure according to the diagram. Step’ s Material...
- Page 15 Trim the supplied foam seal to match the ceilling width. Apply the foam seal only on the sides of the structure that are in contact with another structure. Please see the assembly diagrams (step 16) so you can see which sides of the structures are in contact with each other.
- Page 16 Fit the ceiling structure on top of the structure pillars according to the diagram and rotate the locking cams (C) by hand using a screwdriver - make sure the structures are completely inserted before rotating the locking cams to the locked position. Step’...
- Page 17 15 16 Assembly diagrams. 10 10 11 11 12 12...
- Page 18 Join the ceilling structures using the 63mm screws (K) and the flat heads (E) as you add modules, according to the diagram. Use the 4mm Hex Keys (X). Each ceiling frame junction must be fixed by three screws. Step’ s Material...
- Page 19 Fit the side panels - this step must be executed by two persons. Make sure the side panels are placed in the correct position according to the diagram below. Each side is composed by a PET panel and an MDF panel with melamine.
- Page 20 Make sure the holes are aligned before placing the screws (You can use two screwdrivers to help align the holes in the center of the panel). We advise one person to align the panels with the help of the screwdrivers and the other one to fasten the screws.
- Page 21 Carefully separate the Door Frame from the Door. Fit the Door Frame using the 45mm screws (H) on the top and lower ends, and the 31mm screws (G) on the sides. Use the flat heads (E) and the 4mm Hex Keys (X). If you have purchased a VicBooth with a left door, the installation of the door frame and door will be reversed.
- Page 22 Use the spacer provided to ensure even spacing of the door frame. Tighten the bolts following the order of fixing the screws as described in the diagram and the indications concerning the type of screws to be used. Fit the door by carefully sliding the hinges down into the hinge shaft on the Door Frame.
- Page 23 In some cases, due to the unevenness of the floor, slight bend can occur on the door frame. It may be necessary to loosen and/or tighten some fixing screws on the door frame so that it stays as parallel as possible to the door and guarantees perfect contact between the two surfaces.
- Page 24 Fix the angle brackets, according to the diagram. Remove the G screw and use the R screw to fix the angle bracket to the frame. Using an electric screwdriver, fix the Q screws in the indicated position Step’ s Material...
- Page 25 Fit the ceiling panel using the “I” screws and flat washers according to diagram. The interior peripheral ceilings must be fitted above the angle brackets, sliding them through the free space between them and the ceiling structures Step’ s Material The Ventilation grids on the floor and ceiling should not be covered or obstructed under no circumstances.
- Page 26 Fit the connection plates using the “M” screws . Step’ s Material 8 uni. 1 uni. 4 mm...
- Page 27 Install the metal beams between the L Brackets and fix them using the R screw. Step’ s Material...
- Page 28 Place the top cover on the ceiling structure according to the diagram. Fit the ceiling panels using the “J” screws. Step’ s Material...
- Page 29 If you need to insert a cable or power strip into the VicBooth Office, you must do so from the inside out. Lift the cable entry cover and force the plug through the layers of PET so that it runs out through the cutout made for this...
- Page 30 Place the ventilators on the cabin ceilings according to the diagram. You can connect the fans individually, or connect up to two fans, using the 0.30m USB extension cable supplied with each device. The switches should be set to high to avoid overloading the system. Follow the instructions for assembling the ventilators, which can be found inside the product box.
- Page 32 Get exclusive content on VicBooth Office For post-sale support, including warranty service or repair, register your VicBooth Office at: vicbooth.vicoustic.com/register. With your registration you will have access to the latest news, exclusive promotions and special offers. Main Office, R&D & Logistics Avenida do Pólo 3, Nº...
