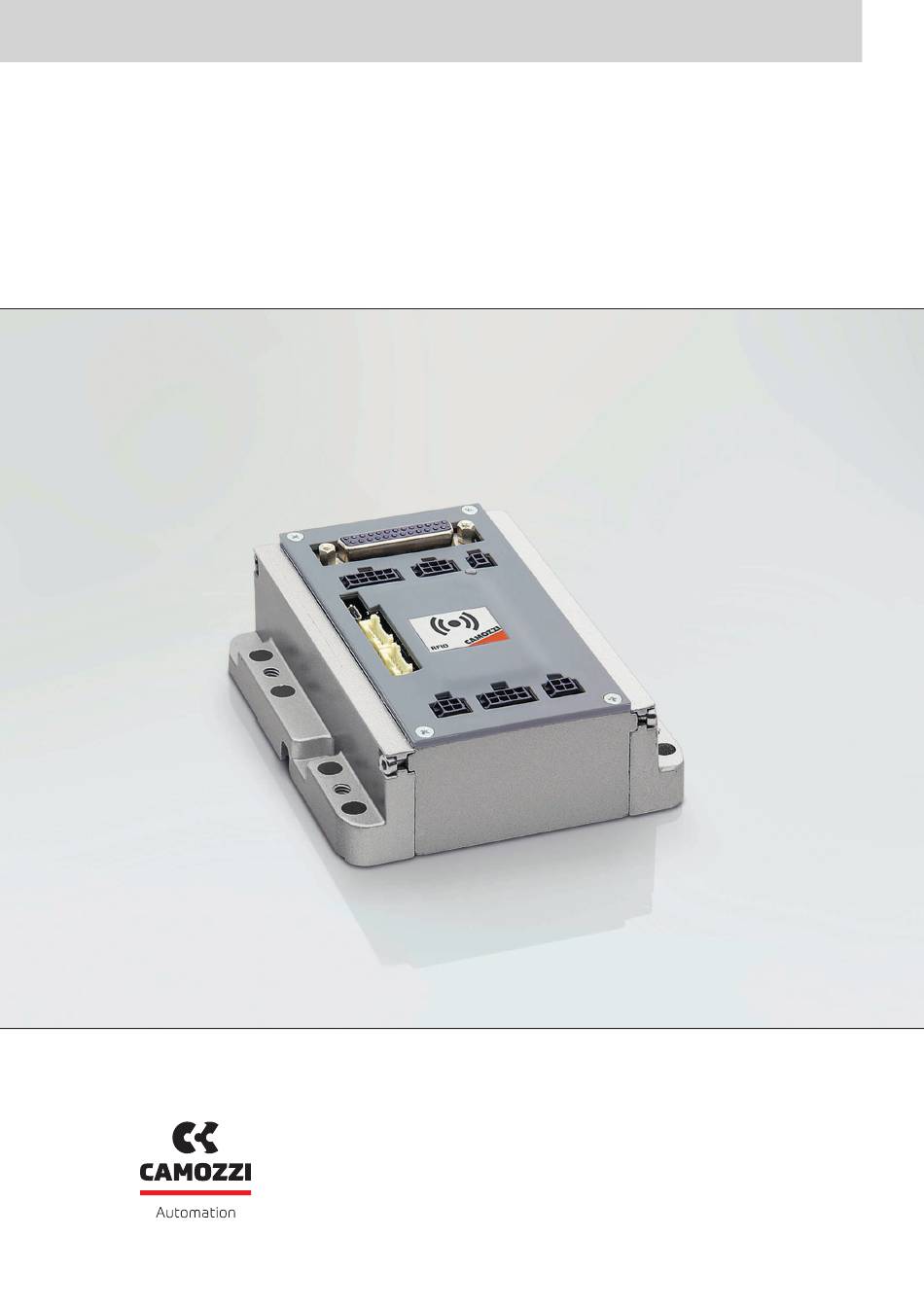

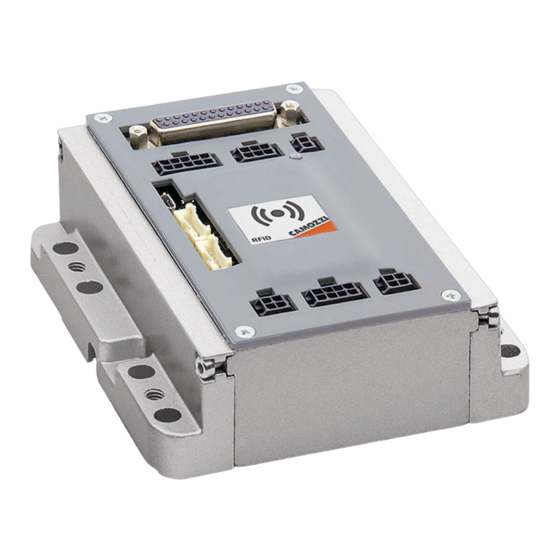

- Page 1 USE AND MAINTENANCE INSTRUCTIONS Series DRCS drive for Stepper motors...
-
Page 2: Table Of Contents
Contents 1. Product identification 2. General recommendations 3. General characteristics and conditions of use 4. Electrical circuit 5. Product transport and storage 6. System general description 7. Installation and start-up DRCS power supply DRCS encoder Proximity connector Motor connector Brake connector CANopen connector 25-pin SUB-D connector Inputs... -
Page 3: Product Identification
• The product described in this manual may be used in circuits that must comply with the standard EN ISO 13849-1. • For information regarding component reliability, contact Camozzi. • Before proceeding to use this product carefully read all information in this document. -
Page 4: General Characteristics And Conditions Of Use
Activation of the oscillation system in order to reduce the vibrations to obtain Anti-resonance smooth motion and speed control, by dampening the oscillation time Signalling Green Led Configuration Digital, using Camozzi’s configuration software QSet Control methods Digital Inputs, Frequency, CANopen (only for models DRCS-XXX-X-C-X-X) Data retention memory Flash Data backup memory E²prom... -
Page 5: System General Description
The DRCS drive can be configured via USB or wirelessly using the Bluetooth protocol (only for models DRCS-XXX-X-X-X-B). The DRCS drive is configurable through Camozzi’s software QSet (for more details on using this configurator and its features, refer to the specific manual). -
Page 6: Drcs Power Supply
Series DRCS drive for stepper motors 7.1 DRCS Power Supply When choosing the power supply, adhere to all regulatory and safety requirements of the DRCS drive, presented in this manual. It is important to choose the correct voltage and current. It is important to use power supplies equipped with “soft start”... -
Page 7: Proximity Connector
EXcom1 Series DRCS drive for stepper motors 7.3 Proximity connector 2K2 5% 1/2W Signal Description +24V +24V power for external proximity (ref. GND) Input for Homing sensor Common (ref. for pin 1) FINE CORSA NPN EXCOM1 Excom1 common (PNP=GND and NPN=+24V DC) Common (ref. -
Page 8: Brake Connector
- Homing input (PIN 3): defines the zero position; the method used to conduct the Homing procedure is configurable with Camozzi’s QSet software (for more details on using the configurator, specifically this feature, refer to the manual). In order to activate the Homing procedure, it is necessary to follow these steps:... -
Page 9: Outputs
Series DRCS drive for stepper motors Strobe Line number Homing á Line 1 á Line 2 á Line 3 á Line 4 á Line 5 á Line 6 á Line 7 á Line n EXCOM Line n+1 1K3 5% 1/2W Line 127 á... -
Page 10: Steps To Realise A Movement
EC-060623 is for a DRCS drive that has this resistor installed, which can be mounted on one of the two CANopen connectors. • To configure the DRCS drive, download the QSet software setup file from http://www.camozzi.com and proceed with installation following the on-screen instructions. For more details, please refer to the QSet manual. -
Page 11: Operation
• Always wear the correct personal protective equipment as required by local authorities and in compliance with current legislation. • If replacement of worn parts is required, use only the original Camozzi kit and ensure that the work is performed by specialised and authorised personnel. Otherwise, product certification will be rendered invalid. - Page 12 Tel.+39 030 3792790 service@camozzi.com Product Certification Information concerning product certifications, EC standards, conformity declarations and instructions productcertification@camozzi.com Camozzi Worldwide Details about our sales network can be found on the Camozzi website in the Contacts section A Camozzi Group Company www.camozzi.com Continuous Innovation...
