1. Quality standard
All our products correspond to the active standards related to sanitary furniture, namely
NF-22 for bathroom furniture and EN-251 for shower equipment.
2. Product overview
SLIMSC drain: Extra-flat drain adapted for Ø90mm shower tray, without cover. Efficient
flow Horizontal outlet. Bi-injected gasket guarantees a 100% watertight installation,
integrated slope of 2% for an optimal draining. PP cartridge and anti-odour silicone
membrane. Hair filter. Stainless steel tray. Easy to clean. Access to pipes

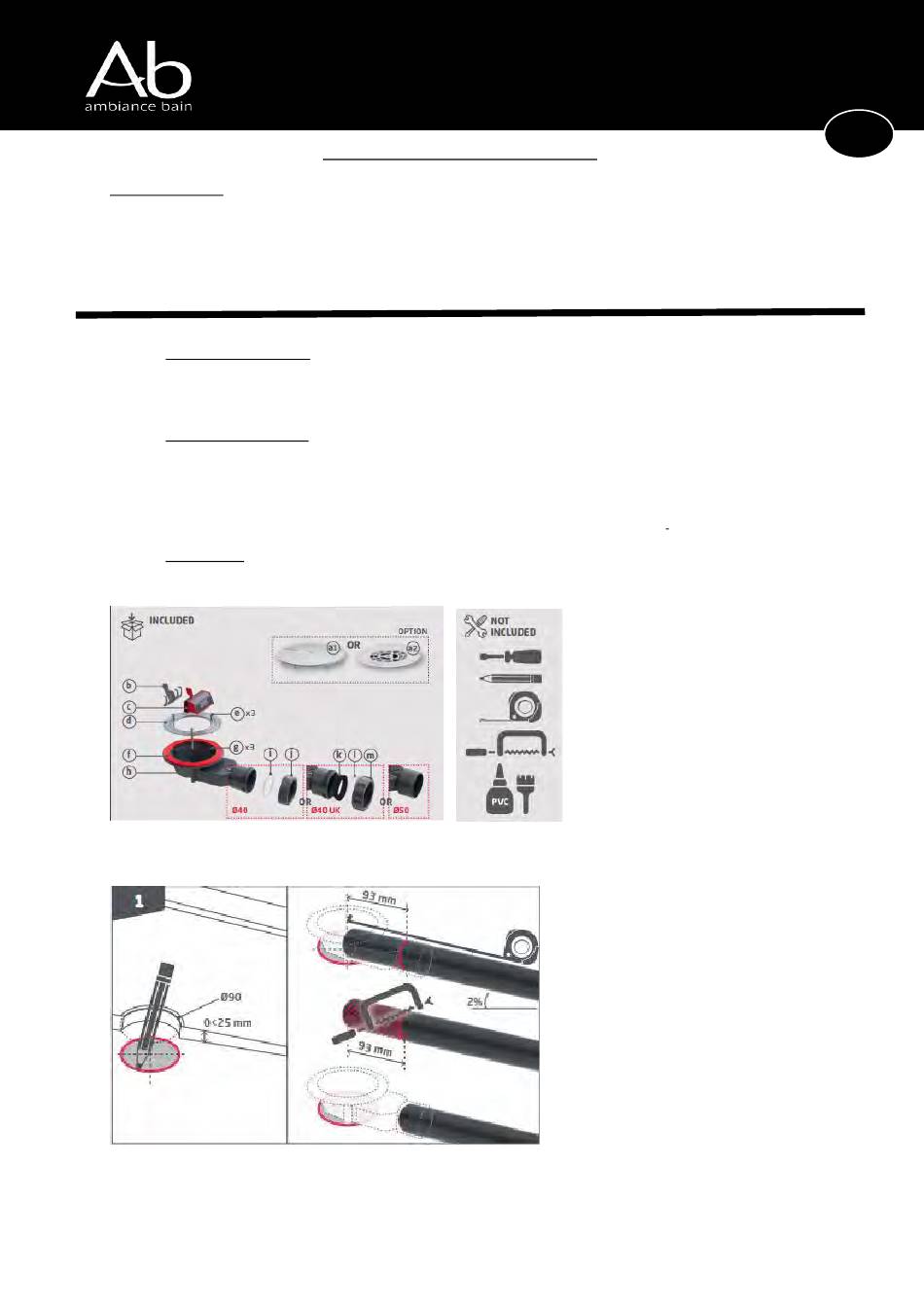

3. Assembly
Included :
1/
ASSEMBLY
INSTRUCTIONS
SHOWER WASTE SLIMSC
.
Position the tray as required.
Mark the position of the waste
under the tray with a pencil.
Remove the tray. Define the
lenght and position of the outlet
pipe.
C149
V1.1
UK
1
