Summary of Contents for TEVERUN UKC2
- Page 1 NINGBO TEVERUN TECHNOLOGY CO.,LTD Product Specification Customer Name: Customer Audit: Product Name: Colorful TFT Display Product Model: UKC2 Date of Issue: Approval: 1 / 11...
- Page 2 NINGBO TEVERUN TECHNOLOGY CO.,LTD Specification Model UKC2 ： 1. Product Name TFT LCD display Model:UKC2 2. Supplier NINGBO TEVERUN TECHNOLOGY CO.,LTD 3. Parameters 3.1 3.5 inch TFT colourful screen 3.2 48V/60v/72v power supply 3.3 Rated operating power : 1W 3.4 USB charging port : DC 5V 500mA...
-
Page 3: Introduction To The Product

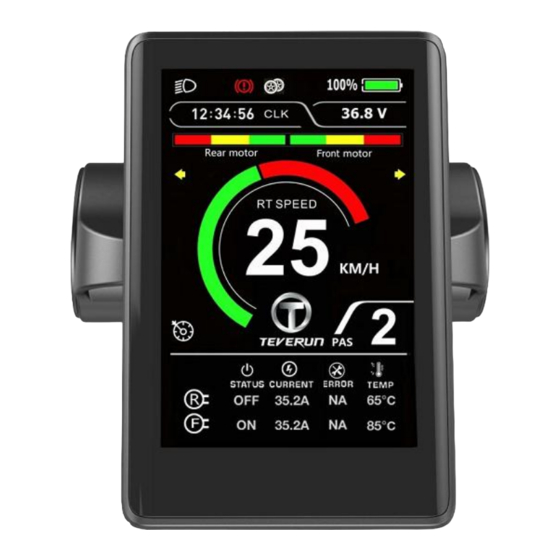

NINGBO TEVERUN TECHNOLOGY CO.,LTD Specification Model UKC2 ： 5. Introduction to the Product 5.1 Dimension: 3.5inch colorful TFT screen. 5.2 Kilometer or Mile mode can be set according to customers’ habits. 5.3 Intelligent power indicator: It can provide a stable power indication through the optimization algorithm. - Page 4 NINGBO TEVERUN TECHNOLOGY CO.,LTD Specification Model UKC2 ： 6. TFT screen instructions Double-drive Brake Batter Headlight Clock Power Speed Cruise Control Trip and Speed Interface: Current Error Motor Temperature Main(rear) Motor Front Motor 6.1 Screen Interface: The default mode is information mode. Click M button to switch modes.
- Page 5 NINGBO TEVERUN TECHNOLOGY CO.,LTD Specification Model UKC2 ： 6.4 Brake display：when the brake is working,showing 6.5 Assist levels can be indicated. 6.6 Real time power indication. 6.7 Clock display：showing the clock information 6.8 Real time current indication. 6.9 Motor ON/OFF state is reported.
- Page 6 NINGBO TEVERUN TECHNOLOGY CO.,LTD Specification Model UKC2 ： 4 and 5. And the default value is 1. 7.3 Headlight/Display Model Change Press and hold UP button for 1 second to lower the backlight brightness and headlight is on(controller support is needed). At the same time, switching daytime/night mode.Press and hold UP button for 1 second again, headlight will be off and change the display mode.
- Page 7 NINGBO TEVERUN TECHNOLOGY CO.,LTD Specification Model UKC2 ： adjusting the brightness 8.2 Clock:Press M button to enter the clock setting menu. Press UP/DOWN button to set Year/Month/Day/Hour/Min/Sec.When finish setting and press M button and return to previous menu. adjusting time 8.3 System setting:Press up/down button to switch different functions.
- Page 8 NINGBO TEVERUN TECHNOLOGY CO.,LTD Specification Model UKC2 ： Time to auto-off setting 8.5 Wheel：Press UP/DOWN to modify the wheel diameter setting. Optional wheel diameters vary from 8 to 14 inch. Wrong wheel diameter selection can lead to abnormal speed. Press M button to confirm the setting or POWER button to cancel current setting.
- Page 9 NINGBO TEVERUN TECHNOLOGY CO.,LTD Specification Model UKC2 ： Speed magnets ranges from 1 to 88 Assist parameter:Assist1/ Assist2/ Assist3/ Assist4/ Assist5 EABS level→1 to 5 F start level→1 to 5 R start level→1 to 5 F current→current limit of front motor R current→current limit of rear motor...
- Page 10 NINGBO TEVERUN TECHNOLOGY CO.,LTD Specification Model UKC2 ： Factory data reset 8.9 Password：Press M button to enter the password setting menu. Press UP/DOWN button to adjust the password number and enter setting menu. Choose Start Password and press ON/OFF, which means turn on/off the password. Choose Reset the Password menu to enter the new password setting menu.
- Page 11 NINGBO TEVERUN TECHNOLOGY CO.,LTD Specification Model UKC2 ： 8.11 Exit the menu. Select M button to confirm or press M twice on any option in the main menu to return to the main interface. 9 Assembly instructions 9.1 Please pay attention to the screw’s torque value. Damages caused by excessive torque are not covered by the warranty.
