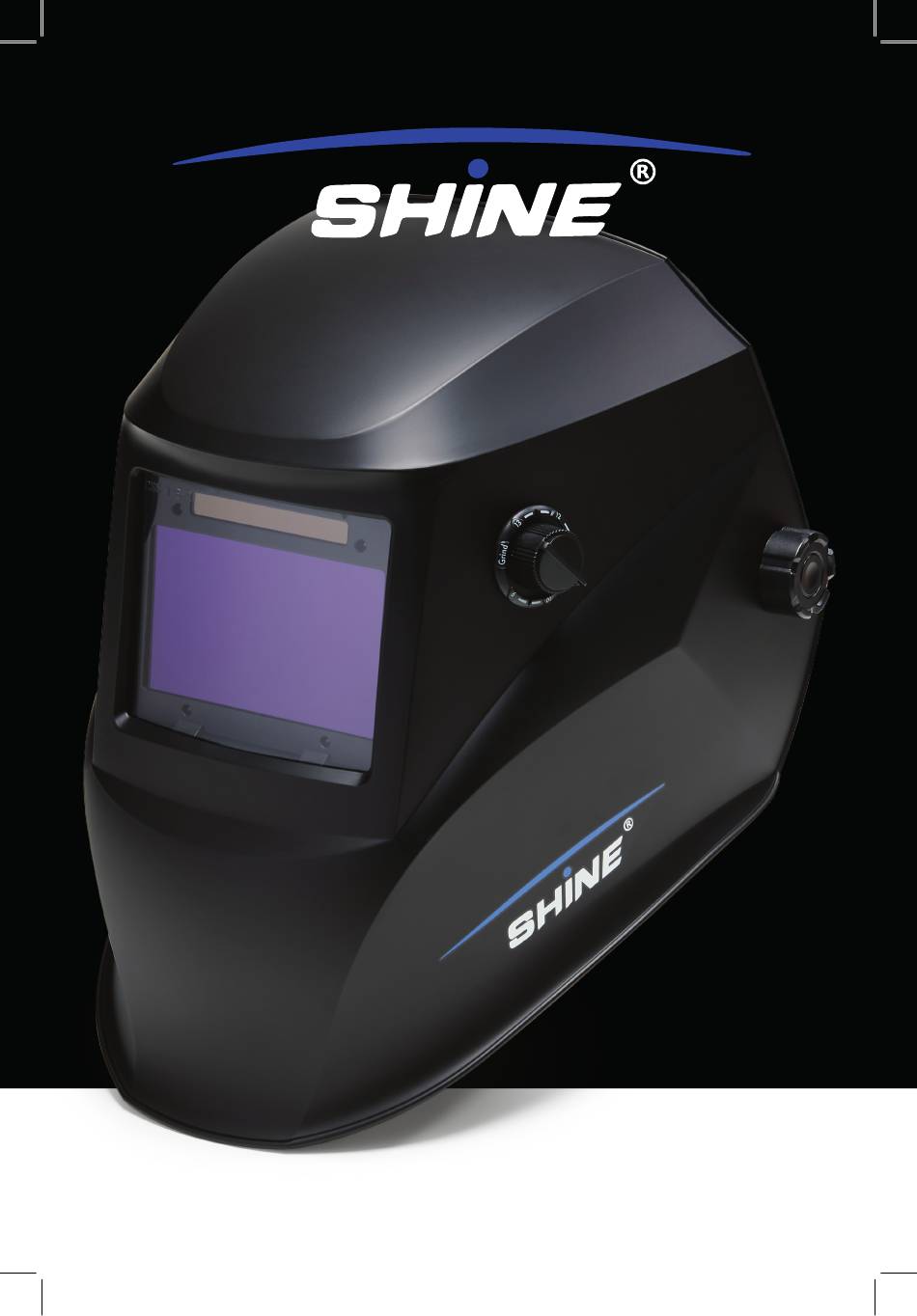

- Page 1 SHINE 5000X WELDING HELMET...
-
Page 2: Safety Warnings
Parts breakdown 1. CHARACTERISTICS 2. WARRANTY The Shine 5000X automatic welding helmet is equipped with a The auto-darkening helmets are warranted for 2 years from the filter set that can become dark. The filter is transparent before date of purchase. The duration of use depends on various factors welding, so the operators may observe the work surface clearly. -
Page 3: Technical Data
The operator may adjust the headband by using the 2. THE POWER SUPPLY buttons and the segmental positioning plate to select an • The power of the shine 5000X helmet is provided by appropriate observing angle. solar cells with one replaceable lithium battery CR2450. •... -
Page 4: Troubleshooting
- English - 7. RECOMMENDED SHADE SETTINGS 8. TROUBLESHOOTING PROBLEM RESOLUTION • Stop welding or cutting immediately. • Make sure the sensors are facing the arc and no obstructions. The ADF does not darken when welding. • Check the mode that is on WELD not GRIND. •... -
Page 5: Parts Breakdown
- English - 9. PARTS BREAKDOWN NUMBER PART NAME NUMBER PART NAME Helmet shell Headgear slider(with 5 slots) Block nut Headband tightness adjusting knob Outer protection plate Block washer adjustment(up and down) Automatic filter Headband screw(long,on right) Inner protection plate Block washer(on right) Battery cover plate Segmental positioning plate(on right)
