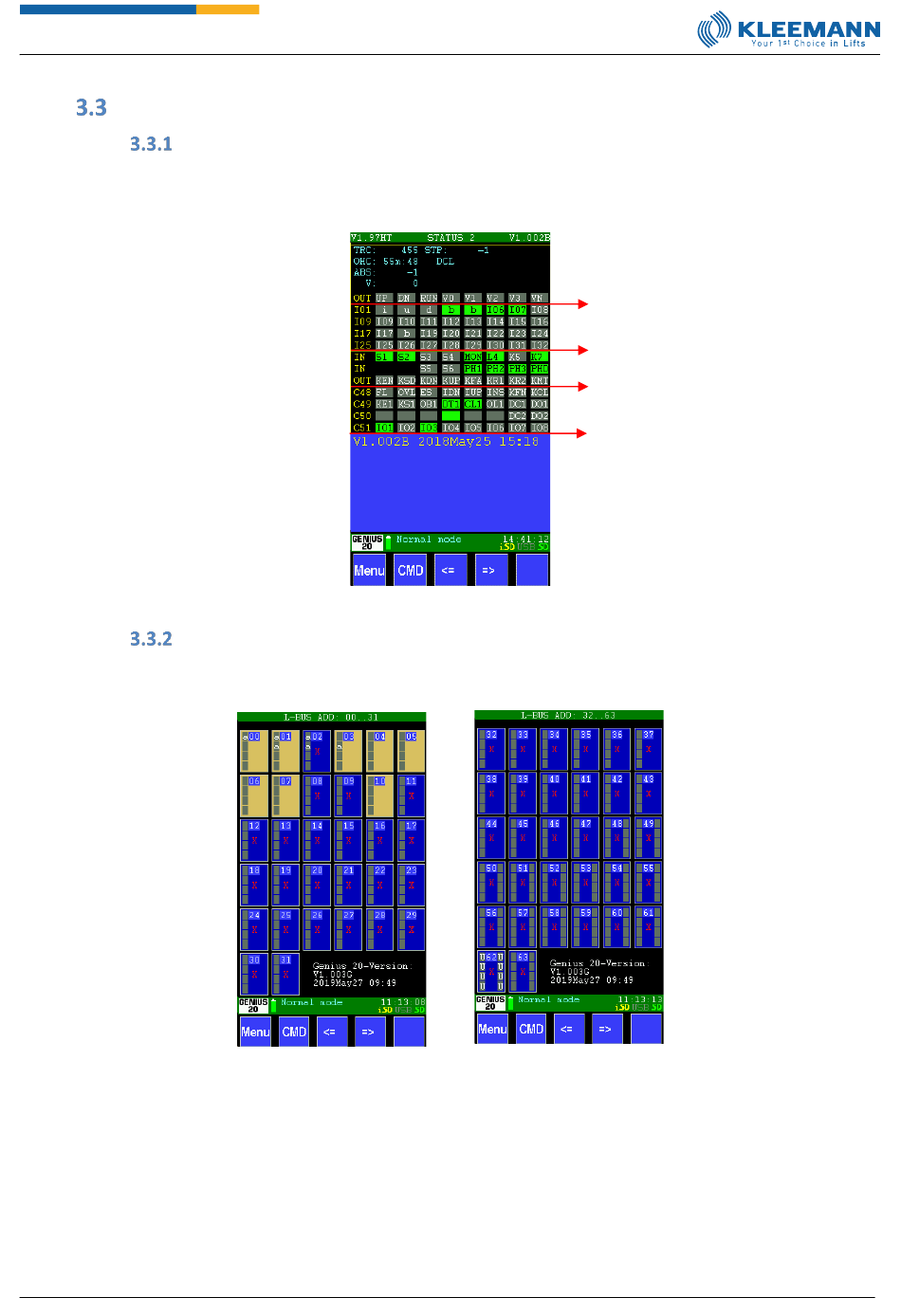

Bus system indication

KMPRO, KMREL, KMCTB

All signals of the processor board (KMPRO), the I/O32 cards, the relay board (KMREL) and KMCTB board
(C48-C51) are displayed here. If a bus module is not available, the name is shaded in red.
The landing modules of door side 1 are displayed. The I/O ports with the assignment abbreviation and
the switching state are displayed per module.
When changing to the next page you can either display the landing bus with modules 32..63 (if
assigned) or the car bus.
At the bottom there are the Menu button, the CMD button and the button to change to the previous
and next page.
162

Landing bus

KMPRO signals
I/O32 cards' signals
KMREL signals
KMCTB signals
MA06-03-1-01
