Bay Networks BayStack UPS45 Quick Reference Manual

BayStack UPS45 Quick Reference Guide

About Your New BayStack UPS45

This Uninterruptible Power Supply (UPS) is designed to prevent
blackouts, brownouts, sags and surges from reaching your
computer and other valuable electronic equipment. This UPS
also filters out small utility line fluctuations and isolates your
equipment from large disturbances by internally disconnecting
from the utility line, while supplying power from its internal
batteries until the utility line returns to safe levels.
While running on battery, an internal alarm will sound (periodic
beeps).
If the utility power does not return, the UPS will continue supplying
power to the connected equipment until exhausted. A continuous
beeping will sound two minutes before the UPS' s final low battery
shutdown. If using a computer, you must manually save your
files and power down before the UPS turns itself off.

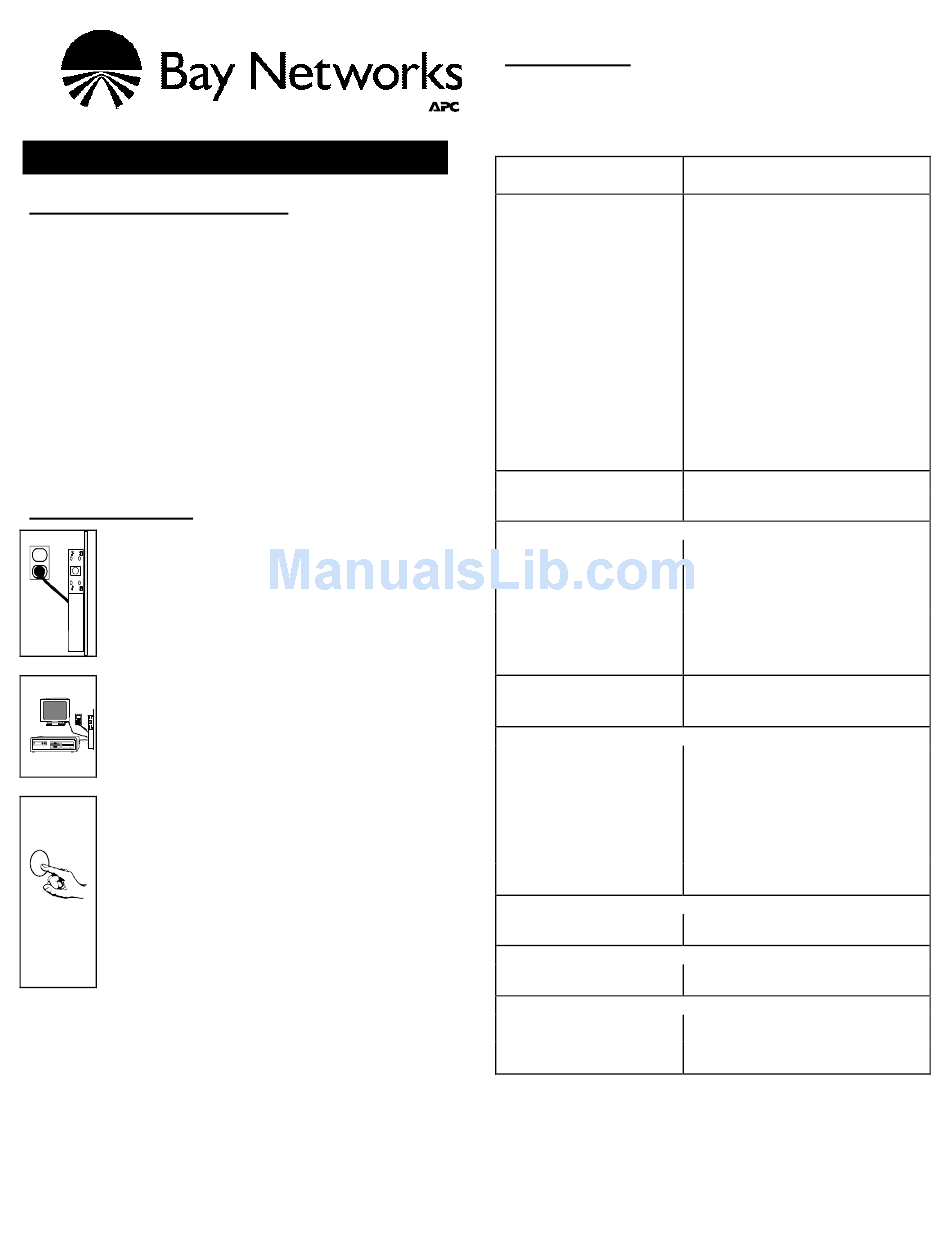

Installation and Setup

1. Install UPS
·
Plug the power cord into the power supply.
2. Connect Equipment
·
Do not power laser printers through the UPS.
·
Use your equipment' s power cords to connect to
the UPS.
·
Turn on all connected equipment.
3. Turn on UPS
·
Press the UPS' s ON switch to turn on your UPS.
This will power-up connected equipment.
I
·
The unit performs a self-test automatically when
turned on, and every two weeks thereafter.
·
The UPS charges its battery whenever it is
connected to utility power. The battery charges
fully during the first 4 hours of normal operation.
Do not expect full runtime during this initial
charge period.

Troubleshooting

Use the chart below to solve minor UPS installation problems.
Contact Bay Networks Technical Support Staff for assistance with
Designed By
complex UPS problems. See the User' s Manual for a location
near you.
English
204459-A
UPS will not turn on.
· ON button not pushed.
· UPS not connected to AC
power supply.
· UPS input circuit breaker
tripped.
· Very low or no utility voltage.
· Battery not connected
properly.
UPS will not turn off.
· Internal UPS fault.
UPS operates on-battery although normal line voltage exists.
· UPS' s input circuit breaker
tripped.
· Very high, low, or distorted
line voltage. Inexpensive fuel
powered generators can
distort the voltage.
UPS beeps occasionally.
· Normal UPS on battery
operation.
UPS does not provide expected backup time.
· The UPS' s battery is weak
due to recent outage or is
near the end of its service life.
· The UPS is overloaded.
All indicators are lit and UPS emits a constant beeping.
· Internal UPS fault.
Overload indicator is on and beeps constantly.
·
UPS is overloaded.
The replace battery light is lit.
· Weak batteries.
· Replacement batteries not
connected properly.
Problem and
Possible Cause
Press the ON button once to power the
UPS and the load.
Check that the power cable from the UPS
to the power supply is securely connected
to the AC power source.
Reduce the load on the UPS by unplugging
equipment and reset the circuit breaker (on
back of UPS) by pressing the plunger back
in.
Check the AC power supply to the UPS
with a table lamp. If very dim, have the
utility voltage checked.
Confirm the battery connections according
to the BayStack UPS45 User' s Manual.
Do not attempt to use the UPS. Unplug the
UPS and have it serviced immediately.
Reduce the load on the UPS by unplugging
equipment and reset the circuit breaker(on
back of UPS) by pressing the plunger back
in.
Move the UPS to a different outlet on a
different circuit.
None. The UPS is protecting the load.
Charge the battery. Batteries require
recharging after extended outages. Also,
they wear faster when put into service often
or when operated at elevated temperatures.
If the battery is near the end of its service
life, consider replacing the battery even if
the replace battery indicator is not yet lit.
Check the UPS' s load display. Unplug less
needed equipment, such as printers.
Do not attempt to use the UPS. Turn the
UPS off and have it serviced immediately.
Unplug less needed equipment, such as
printers.
Do another self test to see if it clears.
Confirm the battery connections according
to the BayStack UPS45 User' s Manual.
Solution
990-7076 Revision 1 10/98
