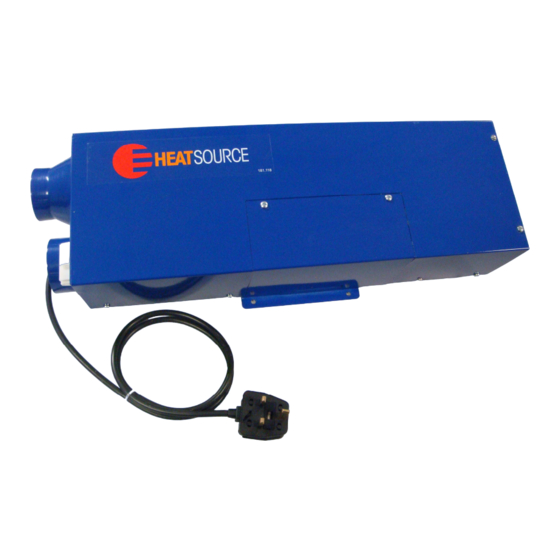

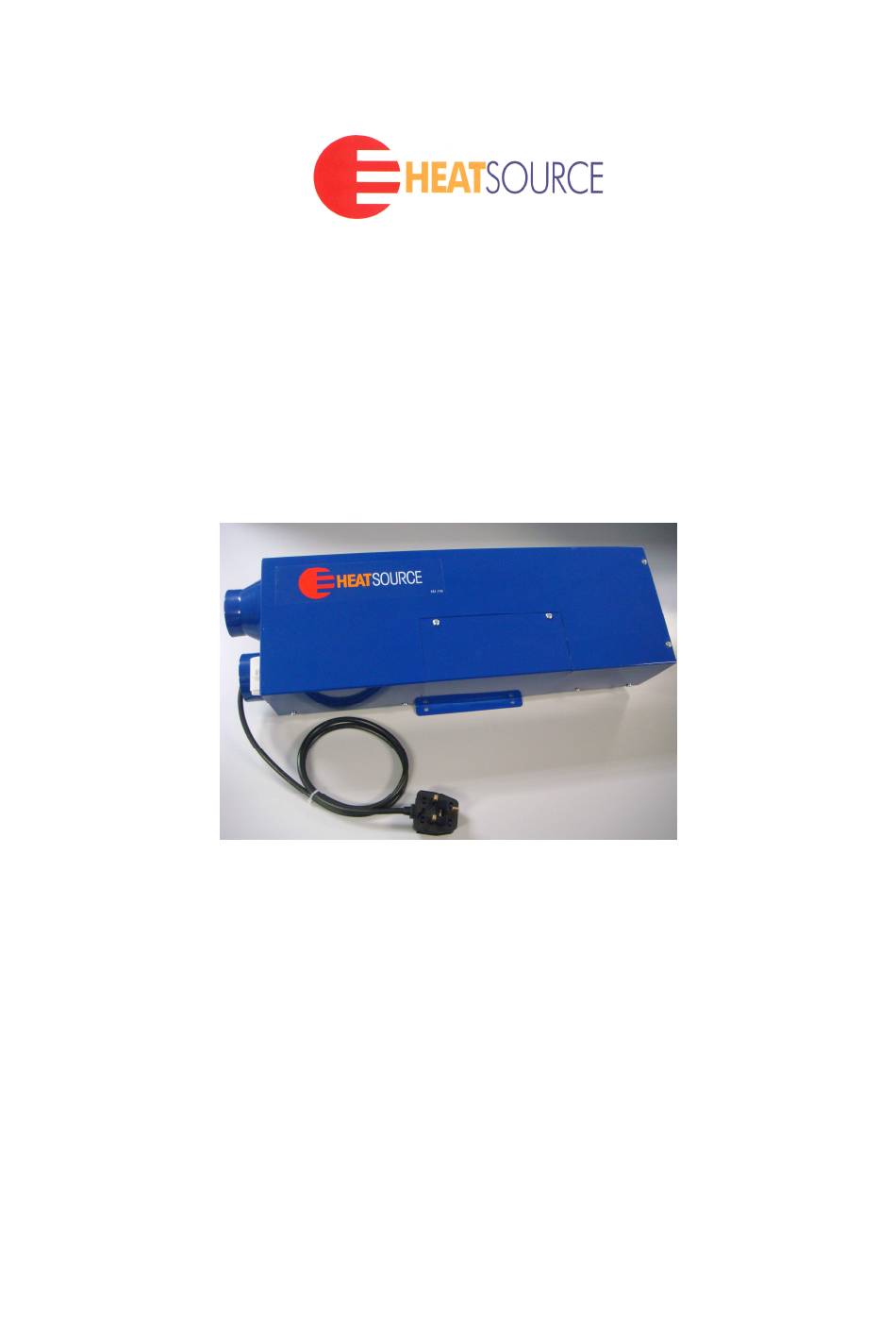

- Page 1 Heatsource HS2000E Gas and Electric Space Heater Vehicle Installation & Operation Instructions From April 2018...
-
Page 2: Specification
INSTALLATION AND USER INSTRUCTIONS Read the following carefully before installation SPECIFICATION Model: HS0011 Maximum dimensions: Height: 115 mm, Width: 200 mm, Length: 570 mm Countries of Destination: AT,BE,BG,CH,CY,CZ,DE,DK,EE,ES,FI,FR,GB,GR,HU,HR,IE,IS,IT,LT,LU,LV,MT,NL,NO,PT,SE,SI,SK Weight: Inside vehicle installation 6.3 kg Gas: Butane 28-30mbar - CAT I Butane/Propane 30mbar - CAT I 3+ (28-30/37) 3B/P (30) - Page 3 Ensure the position allows access for servicing the Space Heater and that there is a minimum of 25mm distance around the heater to adjacent walls when mounted inside the vehicle. Propex’s policy is one of continuous improvement and we reserve the right to change specifications without prior notice.
-
Page 4: Instructions For Installation
Where the open end of the exhaust flue terminates, three sides of the under-floor space are to be kept open and not obstructed, and not contain through floor ventilation openings. The heater, its gas supply, and flues for the products of combustion are to be inspected in accordance with national regulations or if these do not exist, the manufacturer’s recommendations, however, it is advised that this should be done at least annually. - Page 5 DIMENSIONS In vehicle installation Step 1 Find suitable location for Space Heater Installation Consider the following points: For weight distribution in caravans aim to position the Space Heater as near to the axle as possible. You should avoid (where possible) locating at the very rear and preferably avoid the very front.
- Page 6 vii. Only Propex supplied flue components are permitted to be used. The open end of either flue must not be positioned within 500mm of a refuelling point or fuel tank breather outlet or any ventilator from the fuel system(s). The exhaust flue must not be fitted within 300mm of a ventilator for the living space or an opening part of a window.
- Page 7 Cut out holes for exhaust and combustion air flues Position the template on the floor where the heater is to be mounted. Mark the position of the two holes for the combustion air and exhaust flues then drill holes with a 51mm (2”) minimum diameter hole saw.
- Page 8 Push on the ends of the flues to the pipes on the underside of the Space Heater ensuring they are fully pushed on, and secure with supplied hose clips. When mounting the combustion air and exhaust flues, they should ideally run downwards from the heater to their open end to allow any condensation to drain out.
- Page 9 Connect to gas supply The appliance should be installed by a competent person in accordance with the installation instructions and comply with any relevant regulations in the country where the appliance is installed. The Space Heater is supplied with a compression nut and olive for 8mm (5/16”) pipe. The supply pipe should be checked and be free from dirt or other particles before connection to the compression joint on the space heater.
- Page 10 Fitting Cold Air Supply The Propex Space Heater must be adequately supplied with cold air. If the heater is installed in a bed box or another confined space, either vents into the area must be fitted or ducting used to supply the heater with cold air.
- Page 11 Electrical Connection 230v The appliance should be installed in accordance with the installation instructions and comply with any relevant regulations in the country where the appliance is installed. Electrical installation should be carried out by a suitably qualified electrician. The electrical supply must be connected to a 13 amp fused spur provided with an all-pole disconnection and the appliance must be earthed.
- Page 12 INSTRUCTIONS FOR USE To the User: Read the following instructions carefully. Observe all warnings. In the unlikely event of leaks in the gas system, or if there is a smell of gas: - Extinguish all naked flames - Do not operate any electrical switches - Turn off all gas appliances - Open windows and doors for ventilation - Do not smoke...
-
Page 13: Maintenance
OPERATING INSTRUCTIONS For operation of the heater, a 12V d.c. supply must be connected at all times. To operate the heater’s electric elements, it must also be connected to a suitable 230V a.c. supply. Fan only operation. Turn the selector knob to the fan on ( ) position. - Page 14 Number of Fault Remedy flashes Check gas supply making sure there is gas in the bottle and no blockage in the No flame gas line. Ensure propane is used at temperatures below +5°C. Clear lockout as detected described below. Check the air ducts and vents are not blocked or restricted. We recommend you Overheat wait at least 5 to 10 minutes to allow the heater to cool before clearing lockout as described below.
-
Page 15: Eu Declaration Of Conformity
11. EU DECLARATION OF CONFORMITY Description of Equipment: Gas and Electric Space Heater Manufacturer’s Declaration We hereby declare, under our sole responsibility, that the above equipment complies with the provisions of the following EC Directives. This product complies with the following directives and standards: Gas Appliance Regulation (EU) 2016/426 (GAR) on the approximation of the laws of the Member States relating to appliances burning gaseous fuels.
