• AC/DC operated carbon monoxide alarm
• Insect proof
• Test / Hush button
• High and stable sensitivity
• With quick fix mounting brackets for easy installation and simple AC connector for easy installation
• Inter-connectable with up to 40 units
• Fitting and battery tamper-resist feature
• LED operation indicator
• Low-battery and battery missing warning indicator
• Auto reset after the CO clear
WHAT IS CARBON MONOXIDE?
Carbon Monoxide is a colourless, odorless and tasteless poison gas that can be fatal when
inhaled. CO binds to the hemoglobin in the blood and inhibits its capacity to carry oxygen. CO
kills hundreds of people each year and injures many more because it is difficult to detect with the
human senses. In high concentrations, CO can kill in minutes.
SOURCES OF CARBON MONOXIDE?
Inside your home, appliances used for heating and cooking are the most likely source of CO.
Vehicles running in attached garages can also produce dangerous levels of CO. CO can be
produced when burning any fossil fuel, such as gasoline, propane, natural gas, oil and wood. It
can be produced by any fuel-burning appliance that is malfunctioning, improperly installed, or not
ventilated correctly, such as:
• Cars, fires, gas ranges/stoves, gas clothes dryers, water heaters, portable fuel burning space
heaters and generators, fireplaces, wood-burning stoves and certain swimming pool heaters.
• Blocked chimneys or flues, back drafts and changes in air pressure, corroded or disconnected
vent pipes, loose or cracked fire exchangers.
• Vehicles and other combustion engines running in an open or closed garage, attached or near
the home.
• Burning charcoal or fuel in grills and BBQs in an enclosed area.
Installation/Operating
Instructions for the

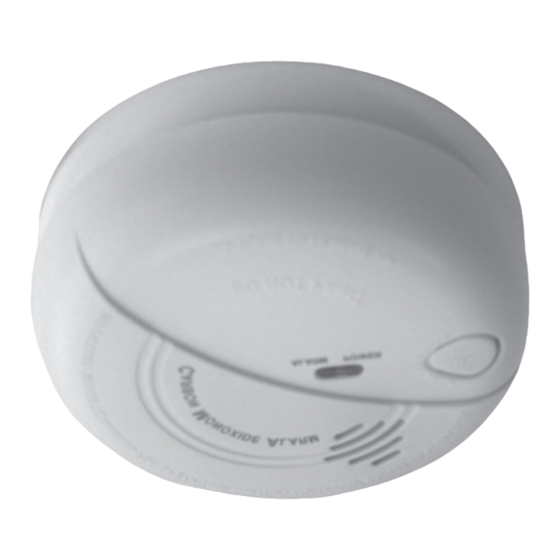

Carbon Monoxide Alarm
Model Ref: ACOMN
Thank you for purchasing a KingShield Carbon Monoxide Alarm
from GreenBrook Electrical. This alarm must be installed by a
competent person, using the following installation instructions.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE REFERENCE
SAFETY INFORMATION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for KingShield ACOMN
- Page 1 Instructions for the Carbon Monoxide Alarm Model Ref: ACOMN Thank you for purchasing a KingShield Carbon Monoxide Alarm from GreenBrook Electrical. This alarm must be installed by a competent person, using the following installation instructions. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE REFERENCE •...
-
Page 2: Symptoms Of Co Poisoning
The following conditions can result in transient CO situations: • Excessive spillage or reverse venting of fuel-burning appliances caused by outdoor ambient conditions, such as, wind direction and/or velocity, including high gusts of wind, heavy air in the vent pipes (Cold/humid air with extended periods between cycles). •... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS NOTE: The alarm may not fully safeguard against high risk groups with specific medical conditions. Installation of your CO alarm is only one step in your safety plan. Educate yourself and family to the sources and symptoms of CO poisoning and how to use your carbon monoxide alarm: •... - Page 4 Typical Multi-Story or Split Level Home Two-Story Residence Maximum Protection Minimum Protection For minimum protection, you should fit at least one alarm on each floor/level. Note: For maximum protection an alarm should be fitted in or near every room that contains a fuel-burning appliance such as any central heating boilers, gas fires, room heaters, water heaters, cookers, grills etc.
-
Page 5: How To Install
Where not to install the apparatus The apparatus should not be installed: • In an enclosed space (for example in a cupboard or behind a curtain). • Where it can be obstructed (for example by furniture). • Directly above a sink. •... -
Page 6: Normal Operation
This CO alarm can be interconnected with up to as many as 40 smoke, heat or carbon monoxide alarms. Do not connect to any other type or model of alarm other than KingShield models. This CO alarm is powered by 220-240V AC 50Hz with 9V DC Battery back-up. -
Page 7: Response Time
CO present. Should the CO levels return to normal, the unit will stop beeping. CO LEVEL RESPONSE TIME (PPM) (MIN) 60-90 10-40 <3 WARNING: This product may not alarm at low carbon monoxide levels. Individuals with medical problems may consider using warning devices which provide audible concentrations under 30 ppm. - Page 8 If the unit has detected an error, there is a failure warning. The horn sounds 3 short ‘chirps’ every minute. Push and hold Test/Hush buton, Red LED is on. Release Test/Hush button, Red LED is off. In case of the above failure warning happening, the CO alarm should be replaced to a new one. If your CO alarm is beeping, and you are not sure if it is a CO alarm or a malfunction alert then reset the alarm, open windows for ventilation and turn off fuel-burning appliance (like kerosene or oil heaters, furnaces, wood-burning stoves, water heaters or other fossil-fuel burning appliances).
-
Page 9: Replacing The Battery
TESTING WITH CARBON MONOXIDE The unit checks for CO every 4 seconds and as soon as it detects CO it flashes the red light (as per Table A) to confirm that it is detecting CO gas. The unit can be tested with CO by using a CO aerosal test spray can. Follow the instructions on the kit. - Page 10 WHAT TO DO IF ALARM SOUNDS If your ACOMN initiates an alarm signal it is recommended that the following actions are taken in the order given. 1. Keep calm and open all doors and windows to increase the rate of ventilation. Stop using all fuel-burning appliances and ensure, if possible that they are turned off.
-
Page 11: Troubleshooting
spurious, do not use the fuel-burning appliances again, until they have been checked and cleared for use by a competent person to national regulations. TROUBLE SHOOTING Trouble Shooting Guide PROBLEM... THIS MEANS... YOU SHOULD... The horn sounds 1 short Install new 9V battery Low battery warning ‘chirp’... -
Page 12: Technical Data
Mains Heat Alarm Smoke Alarm Model: ASPM Model: AHPM GUARANTEE Your KingShield Alarm is guaranteed for 3 years from the date of manufacture. This does not affect your statutory rights. PLEASE KEEP THESE INSTRUCTIONS SAFE FOR FUTURE REFERENCE WEST ROAD . HARLOW ESSEX .
