Fiber Microscope
Operation Manual
(For all Fiber Microscope Series)

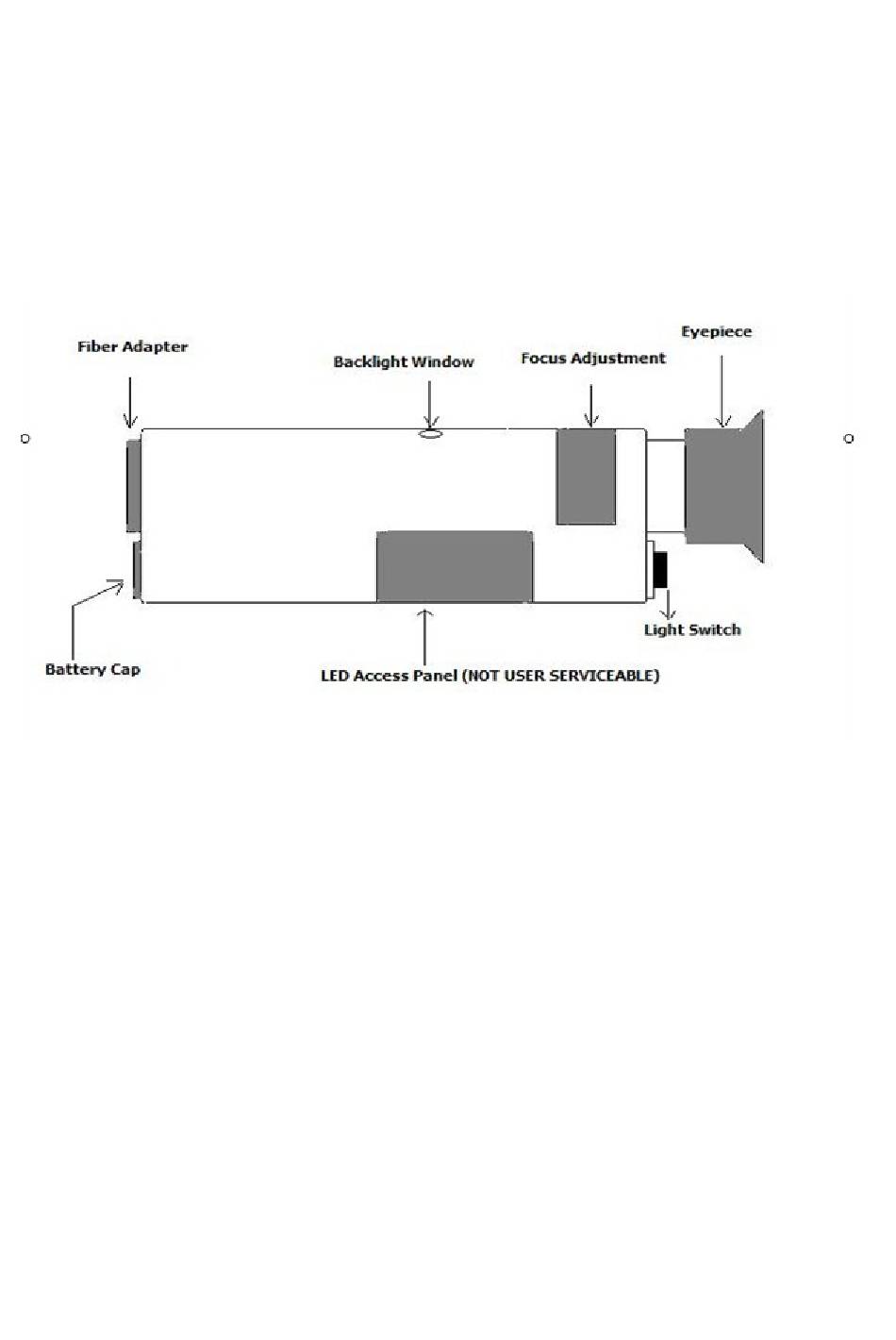

Figure 1
Thank you for purchasing the Fiber Microscope. This instrument was designed to provide years of
Service while delivering true optical performance.The instrument is available in any of 5 magnifications
(200x.400x.or 500x),and can be purchased with a universal 2.5mm
And 1.25mm ferrule adapter or system you've purchased,this manual will help you through operation &
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIM-200 and is the answer not in the manual?

Questions and answers

Summary of Contents for JONARD TOOLS FIM-200

  • Page 1 Fiber Microscope Operation Manual (For all Fiber Microscope Series) Figure 1 Thank you for purchasing the Fiber Microscope. This instrument was designed to provide years of Service while delivering true optical performance.The instrument is available in any of 5 magnifications (200x.400x.or 500x),and can be purchased with a universal 2.5mm And 1.25mm ferrule adapter or system you've purchased,this manual will help you through operation &...
  • Page 2 Setup The Fiber Microscope comes fully assembled and requires only a few steps before it is ready to use . 1, Begin by removing the instrument from its case. 2. You'll need to insert 3AAA batteries .Unscrew and remove the "Battery Cap".Insert the batteries with the "-"side up towards the Battery Plug;"+"...
  • Page 3 focus the image.The first time you use the microscope ,it to focus the image.The first time you use the microscope ,it may take a little longer to find the image .Once you find the image ,very little re-focusing is necessary if the connector is properly loaded. Once you can visualize the connector ferrule ,you can evaluate it for polish quality,cleave quality ,and cleanliness optionally,you can hold the opposite end of a cable to the Backlight...
  • Page 4 Maintenance Keep this instrument dry and clean .it is built for durability and field use ,but careful operation will greatly extend life. Changing the Magnification If you wish to change the magnification or have damaged one of the optical components ,you will need to change either the eyepiece or the objective .Only the eyepiece is easily serviced by the user .if you need to change the objective ,please contact your dealer for a service Return Authorization.
