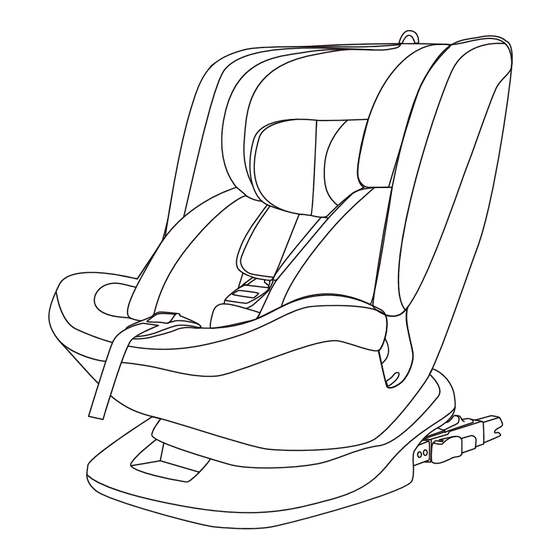

Summary of Contents for EnfaSafe FREEDOM 360 ROTATE

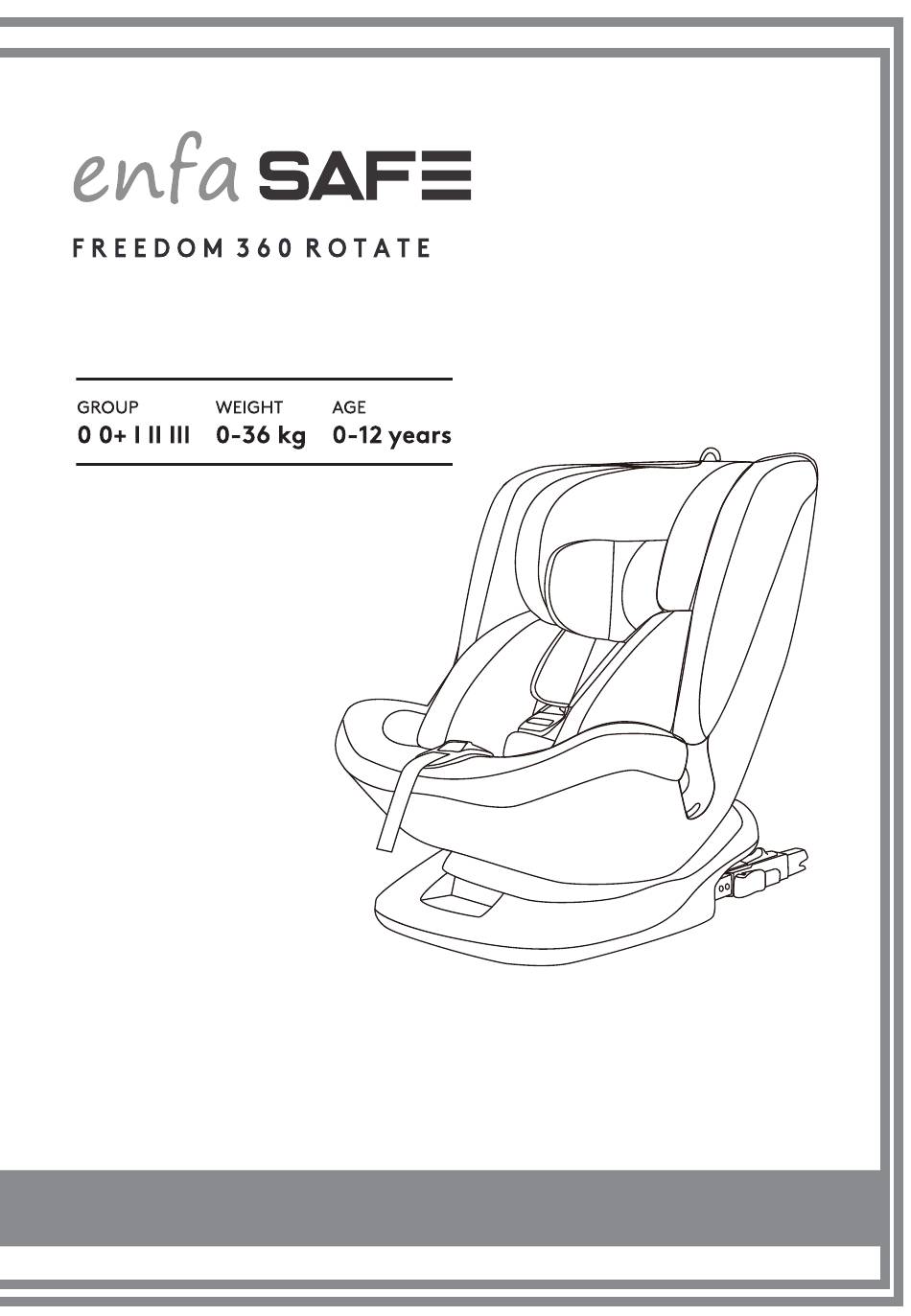

- Page 1 Instruction Manual IMPORTANT: PLEASE KEEP FOR FUTURE REFERENCE. READ CAREFULLY...
- Page 3 IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE If these instructions are not followed, the safety of a child may be severely endangered.
-
Page 4: Table Of Contents
CONTENTS 1. Notice ....................3 2. Warning ..................4-5 3. Parts labelled ................6-7 4. Rear-facing installation: ..............8-10 Group 0+ (0-13kg) ISOFIX + top tether + harness Group I (9-18kg) ISOFIX + top tether + harness Rear-facing recline positions 5. Forward-facing installation: ............11 Group I (9-18kg) ISOFIX + top tether + harness 6. -
Page 5: Notice
1. NOTICE Please read the instructions carefully, because improper installation may cause serious injury, in this case, the manufacturer is not responsible. Use category At the moment the car seat is suitable for children from birth to 36 kg (Gr 0 +, I, II, III, from birth to about 12 years of age.) ISOFIX + top tether + harness Group 0+ 0-13Kg... -
Page 6: Warning
2. WARNING This child restraint system has been approved under standard ECE 44 04 to be used by children weighing between 0 kg and 36 kg. Please do not leave the child unattended inside the vehicle. Please read the instructions carefully . Incorrect installation of the child restraint system could cause serious consequences for the child. - Page 7 It shall be recommended that any straps holding the restraint to the vehicle should be tight, that any straps restraining the child should be adjusted to the child's body, and that straps should not be twisted. In the event of an accident the child restraint system should be replaced, even if it is not visibly damaged.
-
Page 8: Parts Labelled
3. PARTS LABELLED 1. Headrest 9. 5-point harness 2. Flanks 10. Tensor adjusting button 3. Side energy absorber 11. Tensor adjusting strap 4. Top tether 12. Reclining button 5. Buckle 13. Rotation button 6. ISOFIX 7. Headrest adjustment handle 8. Upper belt guide... - Page 9 3. PARTS LABELLED 3. PARTS LABELLED 14. Top tether guide groove 15. Lower belt guide 16. ISOFIX release button 17. ISOFIX status display 18. ISOFIX slide button...
-
Page 10: Rear-Facing Installation
4. REAR FACING INSTALLATION Group 0+ (0-13kg) ISOFIX + Top Tether + Harness Group I (9-18kg) ISOFIX + Top Tether + Harness If your vehicle is equipped with Isofix anchor points, these should be used to obtain a more stable installation. These cars will have plastic elements that guide the seat’s ISOFIX anchors into their correct positions. - Page 11 4. REAR FACING INSTALLATION 4b. Slide the lSOFIX anchors B (6) to their maximum length by turning the level A (18). Do this on both sides of the seat. Connect the lSOFIX anchors until you hear them “click” into place. The display window on the button (17) will turn from red to green.
- Page 12 4. REAR FACING INSTALLATION 4d. Lastly, tighten the strap of the Top Tether system until the green signal is displayed on the indicator. The strap should go over the backrest of the vehicle seat. If necessary raise the headrest or remove it. 4e.
-
Page 13: Forward-Facing Installation
5. FORWARD FACING INSTALLATION Group I (9-18kg) ISOFIX + Top Tether + Harness 5a. Press the button (13) to turn the seat to the forward position. Follow the same step (4b) to install ISOFIX. 5b. Connect the Top Tether in the anchor point intended for this in the vehicle marked with the symbol:... -
Page 14: Storing The Harness
6. STORING THE HARNESS Once the child has reached a weight of 18kg the harness should be stored away and the child should be secured with Option 1. ISOFIX and the vehicle safety belt or Option 2. the vehicle safety belt only. 6a.To store the harness away it needs to be fully loose. -
Page 15: Forward-Facing Installation
7. FORWARD FACING INSTALLATION Group II (15-25kg) ISOFIX + 3-Point Seat Belt Group II (15-25kg) 3-Point Seat Belt Group III (22-36kg) ISOFIX + 3-Point Seat Belt Group III (22-36kg) 3-Point Seat Belt 7a. Group II III can be installed two ways: ISOFIX + 3-Point Seat Belt or 3-Point Seat Belt only 7b. - Page 16 . Once the child is securely strapped in, you can recline the seat by pressing the button (12). Forward-facing (9-36kg) - Position 1,2,3,4 is allowed. 2 3 4 1 2 3 4 9-36kg Forward-facing...
-
Page 17: Securing The Child
8. SECURING THE CHILD This child restraint system has a loading position making it easy to place the child in the seat and adjust the straps to fit correctly. 8a.Loosen the harness by pressing the button (10) and pulling the diagonal part of the harness straps. - Page 18 8. SECURING THE CHILD 8c. Once the child is securely strapped in,you can recline the seat by pressing the lever (12) to the required position. To get the child out of the seat, follow the same process in reverse (8b). Please make sure that the child gets out of the vehicle on the pavement side.
-
Page 19: Insert Cushion
9. INSERT CUSHION 9a. Use the complete insert cushion until the baby reaches 5kg. 9b. When the baby is 5-12kg, take off the inner headrest. 9c. When the child is 12-36kg, remove the complete insert cushion. 0-5kg 5-12kg 12-36kg... -
Page 20: Maintenance
10. MAINTENANCE Fitting / removing the cover: The cover of the car seat is very easy to remove. There are 2 fastening points for the cover on the front. Simply unfasten these points and then gently pull the front part of the cover. On the sides of the seat there are some plastic parts that are used to fasten the cover. - Page 24 For further assistance with your EnfaSafe car seat, please do not hesitate to call us on +353 1 2952111 or you can get in touch by email at reachout@euroactiveproducts.com EUROACTIVE HK. LTD. 79/ 80 FURZE ROAD, SANDYFORD BUSINESS ESTATE, DUBLIN, D18 C5P9, IRELAND...
