Summary of Contents for Matest E094
- Page 1 LAB & INDUSTRY EQUIPMENT Buch & Holm A/S Marielundvej 39 2730 Herlev Tlf. +45 44 54 00 00 e-mail b-h@buch-holm.dk www.buch-holm.dk • • • • Box 10058 S-200 43 Malmö Tel. +46 (0)40 30 50 30 e-mail b-h@buch-holm.se www.buch-holm.se • •...
- Page 2 DRAUGHTSMEN OPERATORS MAINTENANCE WORKERS ANY OTHERS REV. DESCRIPTION MANAGED APPROVED PRODUCT CODE PAGES ISSUE DATE Chief Technical User manual E094.M01.EN.02 01/2007 Office Technician Matest S.p.a. Via delle Industrie 25, 24048 Treviolo (BG) Italy +39 035 2055011 TEL. info@matest.com | www.matest.com...
- Page 3 GENERAL INDEX GENERAL INDEX CHAPTER 1 GENERAL INFORMATION GENERAL FEATURES IDENTIFICATION APPLICATIONS STRUCTURE AND OPERATING OF THE MACHINE CHAPTER 2 SAFETY INFORMATION GENERAL SAFETY STANDARDS SAFETY DEVICES DANGEROUS PARTS AND RESIDUAL RISKS NOISE CHAPTER 3 INSTALLATION LIFTING UNPACKING INSTALLATION ELECTRIC CONNECTIONS CHAPTER 4 MACHINE FEATURES DIMENSIONS AND MASS...
- Page 4 AUXILIARY CIRCUIT MIXER E095 POWER DIAGRAM MIXER E095 CLAMP BOARD MIXER E095 LAY OUT OF PROTECTIONS FOR MIXER E095 LIST OF ELECTRIC DIAGRAMS E094 INTERNAL VIEW - MIXER E094 AUXILIARY CIRCUIT MIXER E094 EEC CONFORMITY DECLARATION (FOR EEC COUNTRIES ONLY)
-
Page 5: General Information

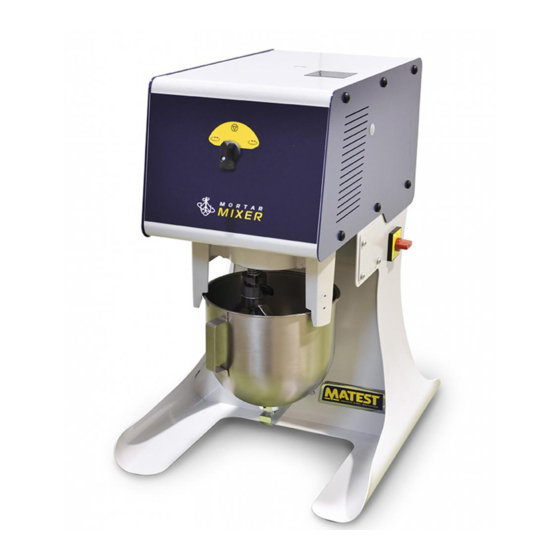

APPLICATIONS The laboratory Mixer E094 and E095 has been developed for the automatic mixing of the cement pastes and mortar. This process will result in the preparation of the specimens for flexure, compression tests in perfect compliance with the EN 196/1 specifications. -
Page 6: Chapter 2 Safety Information
ATTENTION case of real and urgent need. STANDARD VERSION: For the Mixer E094 no safety devices are foreseen. ACTIVE SAFETY DEVICES Active Safety Devices are all those disposals and devices, which cancel or greatly reduce the risks to the operator. - Page 7 DANGEROUS PARTS AND RESIDUAL RISK The dangerous place is the space inside and around the machine where the operator could be wounded or damaged. During some procedures the operator could face some risks of danger. The risks can be eliminated following carefully the procedures written in this manual and using suitable safety devices.
-
Page 8: Chapter 3 Installation
CHAPTER 3 INSTALLATION Consult chapter “DANGEROUS PARTS AND RESIDUAL RISKS” before proceeding. DANGER LIFTING The instructions of this section must be respected during the transport phases of the appliance in following situations: The lifting and the storing The first installation ... -
Page 9: Electric Connections
ELECTRIC CONNECTIONS Skilled operators must arrange the electric connections. DANGER Before connecting, see the attached electric diagram and the plate on the machine for DANGER the information about the voltage, the frequency, etc. Connect the ground by the terminal PE (yellow-green) before making any other DANGER connection. -
Page 10: Machine Features
MACHINE FEATURES CHAPTER 4 MACHINE DIMENSIONS AND MASS E095 E094 475 mm LENGTH 355 mm WIDTH 624 mm HEIGHT 35 Kg MASS 4.7 Litres 4.7 Litres BOWL CAPACITY 140 / 285 140 / 285 RPM FOR REVOLVING ACTION 62 / 125... -
Page 11: Operator's Interface
OPERATOR’S INTERFACE CHAPTER 5 DESCRIPTION OF PARTS - ENCLOSURE B – MIXER MODEL CE/STANDARD CONTROL DESCRIPTION It allows mixing water, cement and sand into the bowl (B14) in order to get the desired quality of mortar. Its turning B1 / C1 BEATER movement achieves the mixing action. -
Page 12: Switching On The Appliance
To switch on the appliance, follow hereunder instructions: Put the Main Switch (B13 / C13) on the “I” position. Reminder valid for Mixer E094 only: Before switching on the appliance, verify that the selector (E4) is on the middle position ATTENTION of “STOP”. - Page 13 (E1) and without interrupting the present turning. To end the rotation cycle, push the STOP button (E3). MIXER E094 – STANDARD MODEL Switch on the mixer (for further details, consult the Chapter “ ” in this SWITCHING ON THE APPLIANCE manual).
-
Page 14: Chapter 7 Maintenance
SWITCHING OFF THE APPLIANCE After a test series, follow these instructions to switch off the appliance: 1. Verify that there are no residuals or dirty either in the bowl (B14/C14) or on the beater (B1/C1), if necessary clean the components thoroughly. 2. - Page 15 OPERATION CHECK OF THE SAFETY CAGE (B16) Verify after 30 working hours the conditions of the safety disposals which form the safety cage B16); in case of bad working conditions repair or replace the parts immediately. PROCEDURE Clean the surfaces of the magnet plaques from any mortar dirty, in order to grant the perfect closing of the door.
-
Page 16: Setting Aside
CHAPTER 9 SCRAPPING SETTING ASIDE In case of setting aside for a long time it is necessary to disconnect the electric feeding. Execute all the maintenance operations. It’s recommended to cover the machine against the dust. SCRAPPING When the machine is not used anymore, it is recommended: ...
