Summary of Contents for KC CAM 19.680

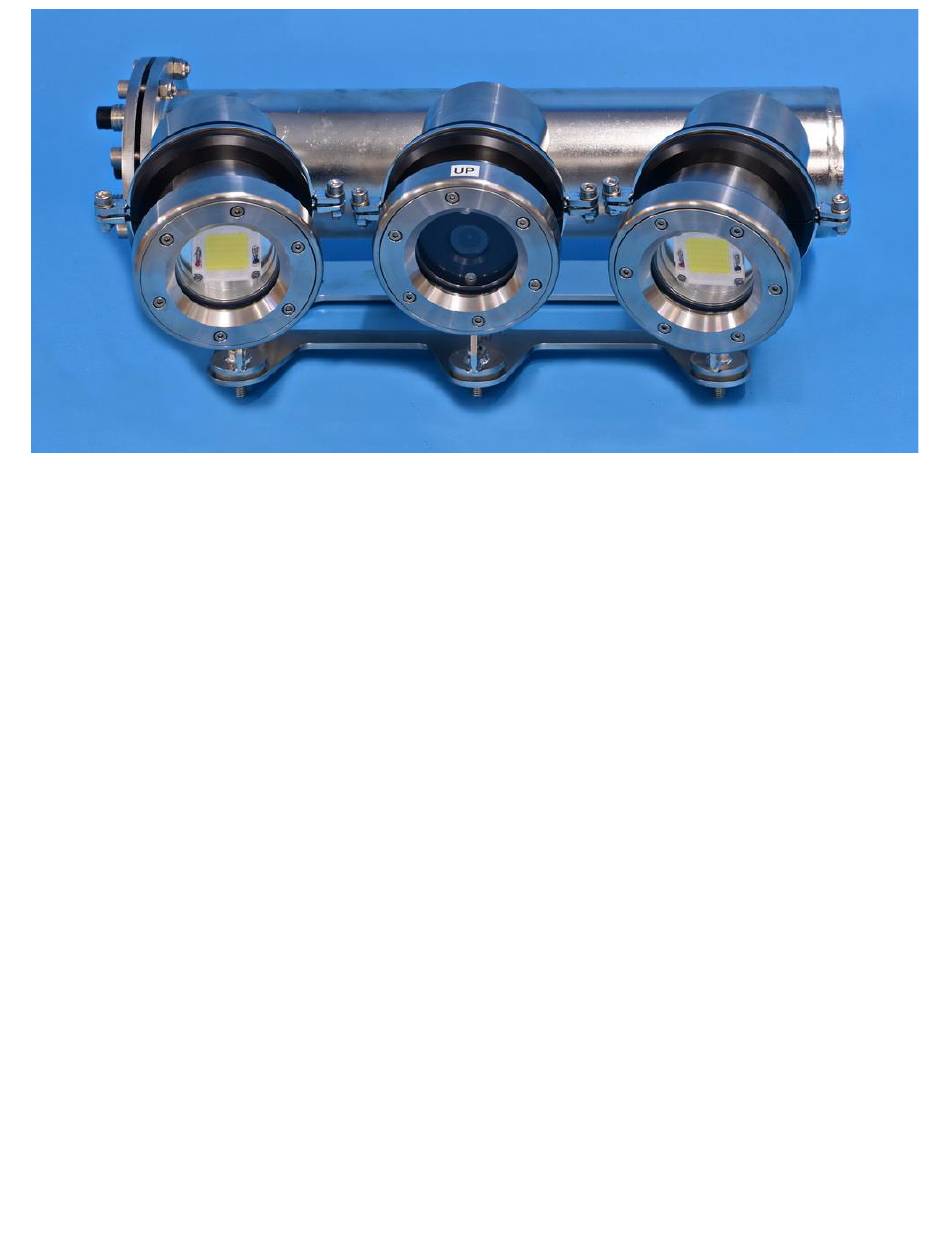

- Page 1 19.680 - CAM Underwater Camera System Manual Denmark A/S Research Equipment Limnology Oceanography Hydrobiology ⚫ ⚫...
- Page 2 Underwater Camera System – Max. depth 500 m Camera: • Resolution: 12 MP • Field of view (FOV): 145° • EIS – Electronic Image Stabilization • Recording time, up to 1 hour and 30 minutes • Image sensor chip is a SONY IMX 377, 12MP •...
-
Page 3: Basic Camera Operation
Charging the battery for the lamps: Charge the battery inserting the 3-conductor cable to the battery charger connector. A fully discharged battery requires charging for 8-10 hours, approx. The charger contains advanced electronics preventing overcharging even if connected for a long time. The SubConn connectors requires to be greased with Molykote 44, see recommendations on page 8-11. -
Page 4: Connection To The Pc
Deploying the camera IMPORTANT: Remove the USB adapter and insert a SubConn dummy into the connector on the rear side of the camera. Connect two cables from the battery cylinder to the lamps; they will light up immediately. You may check if the enlightened area corresponds to the requested recording area;... - Page 5 19.680 – Underwater Camera System - Manual...
- Page 6 19.680 – Underwater Camera System - Manual...
- Page 7 19.680 – Underwater Camera System - Manual...
- Page 8 19.680 – Underwater Camera System - Manual...
-
Page 9: Storing And Maintenance
Safety Regulations KC Denmark A/S is not, and cannot be held, responsible for any damage(s) made to equipment or to operators who ignore safety precautions or because of misuse or wrong operation. An expert maintenance technician fully familiar with the attendant hazards must only do all maintenance, inspection and repairs.
