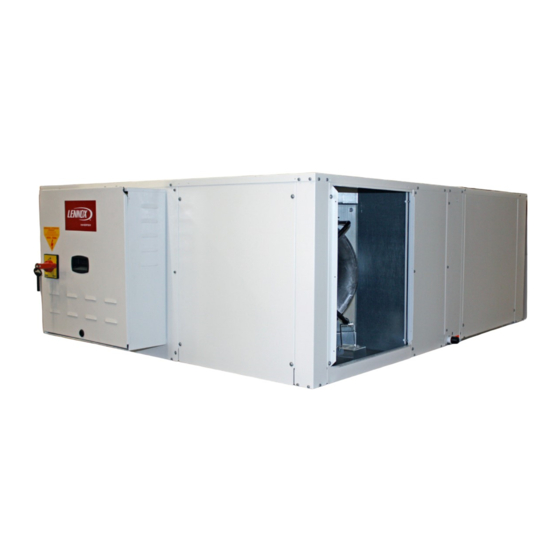

- Page 1 INSTALLATION, OPERATING AND MAINTENANCE HORIZONTAL PACKAGED AIR CONDITIONER FLATAIR2 8 - 34 kW FLATAIR ADV2 IOM- MIL161E-0920-09/2020 www.lennoxemea.com...
-
Page 2: Table Of Contents
Read this manual before installation, reparation o maintenance works. POINTS TO BEAR IN MIND DATA PAGE FOR COMMISSIONING UNIT SAFETY CODES & REGULATIONS GENERAL CHARACTERISTICS Product range General description Physical data Electrical data Operating limits Fan performances Refrigeration drawings Sound levels 16-17 Dimensions - split units Dimensions - packaged units... -
Page 3: Points To Bear In Mind
POINTS TO BEAR IN MIND DANGER AND WARNING SIGNS Abrasive High Risk of injury by Electrical Risk of injury by surfaces temperatures temperatures moving objects voltage rotating objects ELECTRICAL CONNECTIONS Make sure to switch off the power before installing, repairing or carrying out maintenance on the unit, in order to prevent serious electrical injury. -
Page 4: Data Page For Commissioning Unit
D ATA PAGE FOR UNIT COMMISSIONING UNIT: SERIAL Nr: CONTROL PANEL IDENTIFICATION CODE: INSTALLATION ADDRESS: INSTALLER: INSTALLER TEL: INSTALLER ADDRESS: DATE OF COMMISSIONING: CHECKS: SUPPLY VOLTAGE: RATED VOLTAGE OF THE UNIT: UNIT ON SHOCK ABSORBERS DRAINAGE WITH TRAP MAIN POWER SUPPLY CONNECTION CONTROL PANEL CONNECTION COMPRESSOR OIL LEVEL INDICATOR DATA INPUT:... -
Page 5: Safety Codes & Regulations
SAFETY CODES & REGULATIONS THE UNIT MUST BE INSTALLED IN ACCORDANCE WITH LOCAL SAFETY CODES AND REGULATIONS AND CAN ONLY BE USED IN WELL VENTILLATED AREA. PLEASE READ CAREFULLY THE MANUFACTURER’S INSTRUCTIONS BEFORE STARTING THIS UNIT. INSPECTIONS AND REQUALIFICATION ACCORDING PRESSURE EQUIPMENT DIRECTIVE MUST FOLLOW THE LOCAL REGULATIONS WHERE THE UNIT IS INSTALLED. - Page 6 SAFETY CODES & REGULATIONS F-Gas REGULATION Operators of refrigeration equipment’s must comply with the obligations defined in: - EU Regulation No 517/2014 on fluorinated greenhouse gases - EC 1005/2009 on substances that deplete the ozone layer Non-compliance with these requirements is an offence and liable of financial penalties. Moreover, in case of problem it is mandatory to prove to the insurance company that the equip ment complies with the F gas Regulation.
- Page 7 SAFETY CODES & REGULATIONS Main Safety Recommendations All work on the unit must be carried out by a qualified and authorised employee. Non-compliance with the following instructions may result in injury or serious accidents. Work on the unit: • The unit shall be isolated from the electrical supply by disconnection and locking using the main isolating switch. •...
-
Page 8: General Characteristics
1. GENERAL CHARACTERISTICS 1.1. PRODUCT RANGE UniT Number of revision H: Heat pump S: One Circuit FLATAIR D: Two Circuits ADVANCED M: Package unit Approximate cooling T: 230V/1/50 Type of refrigerant S: Outdoor unit capacity in kW M: 400V/3/50 M: R-410A I: Indoor unit UNIT HEAT PUMP. -
Page 9: General Description
1. GENERAL CHARACTERISTICS 1.2. GENERAL DESCRIPTION FANS The fans of the indoor and outdoor sections are of EC Plug CASING Fan type. The fans are regulated automatically to obtain a variable air volume in indoor and outdoor unit. Galvanized and painted sheetmetal casing. The units in- corporate metal supports attached to the base, for its cor- Optional: Fan with metal blades, for outdoor and indoor rect handling and hoisting. - Page 10 1. GENERAL CHARACTERISTICS 1.2. GENERAL DESCRIPTION OPTIONS Fresh air: Control and comunication: - Remote display DC for user. - Kit Freecooling 1 damper - Service display DS. Filtration: - Multi Unit Display DM. - High efficiency filter: M5+F7 - Remote probe in environment. - Modbus RS485 comunication interface.
-
Page 11: Physical Data
1. GENERAL CHARACTERISTICS 1.3. PHYSICAL DATA PACKAGED UNIT FAMH020SM2M FAMH035SM2M Cooling capacity (*) 22.2 32.4 Heating capacity (**) 20.5 29.0 Nominal absorbed power (Cold) (*) 13.1 Nominal absorbed power (Heating) (**) 11.8 DIMENSIONS Height Width 1500 1950 Depth 1980 2050 Net weight OUTDOOR UNIT FASH020SM2M... -
Page 12: Electrical Data
1. GENERAL CHARACTERISTICS 1.4. ELECTRICAL DATA ELECTRICAL CONSUMPTIONS. PACKAGED UNIT FAMH020SM2M FAMH035SM2M Voltage V/f (50 Hz) 400V / 3Ph ± 10% 400V / 3Ph ± 10% Total maximum power 12.41 19.67 Total maximum current 23.32 35.03 OUTDOOR UNIT FASH020SM2M FASH035SM2M Voltage V/f (50 Hz) 400V / 3Ph ±... -
Page 13: Operating Limits
1. GENERAL CHARACTERISTICS 1.5. OPERATING LIMITS. Operating Limits Maximum temperatures Minimum temperatures Indoor temperature 32ºC BS / 23ºC BH 21ºC BS / 15ºC BH Cooling Cycle Operation Outdoor temperature 48ºC -10ºC Indoor temperature 24ºC BS 15ºC BS Heating Cycle Operation Outdoor Temperature 25ºC -12ºC... -
Page 14: Fan Performances
1. GENERAL CHARACTERISTICS 1.6. FAN PERFORMANCES. INDOOR FANS (Nominal speed). FAMH020SM2M FAMH035SM2M FAIH020SM2M FAIH035SM2M Min Airflow Min Airflow Max Airflow Max Airflow Nominal Nominal 100 % 100 % Airflow (m Airflow (m OUTDOOR FANS. OUTDOOR FANS. FAMH020SM2M FAMH035SM2M FASH020SM2M FASH035SM2M Min Airflow Min Airflow Max Airflow... -
Page 15: Refrigeration Drawings
1. GENERAL CHARACTERISTICS 1.7. PIPING DRAWINGS FAMH020 & FAMH035 PACKAGED UNITS Compresor Scroll BLDC Ventilador PLUG FAN BS14 BS13 Válvula 4 vías Acumulador Ventilador Aspiración PLUG FAN Válvula expansión electrónica Filtro secador Válvula retención FASH/FAIH020 & FASH/FAIH035 SPLIT UNITS Compresor B13_1 Scroll BLDC Ventilador... -
Page 16: Sound Levels
1. GENERAL CHARACTERISTICS 1.8. ACOUSTIC DATA 1000 2000 4000 8000 dB(A) Indoor side in duct 56,9 58,5 67,2 68,1 67,1 66,5 60,3 Standard unit 64,4 74,7 75,9 76,6 78,1 75,8 73,7 Outdoor side in duct 54,5 59,5 64,8 66,6 70,3 72,8 69,2 69,3... -
Page 17: Dimensions - Split Units
1. GENERAL CHARACTERISTICS 1.9. SPLIT UNITS DIMENSIONS FAIH 020 1500 1118 Electrical 1048 ALIMENTACIÓN supply ELÉCTRICA 1011 Electrical coil (option) BATERÍA ELÉCTRICA Connecting cable (OPCIONAL) CABLE INTERCONEXIÓN Condensing unit UNIDAD EXTERIOR Condensate drain 3/4" G TUBO DE DRENAJE M 3/4 G 1550 All dimensions in millimeters FAIH020SM2M... - Page 18 1. GENERAL CHARACTERISTICS 1.9. SPLIT UNITS DIMENSIONS FAIH 035 1950 1568 1498 Electrical supply ALIMENTACIÓN ELÉCTRICA Connecting cable 1114 Electrical coil (option) BATERÍA ELÉCTRICA CABLE INTERCONEXIÓN Condensing unit (OPCIONAL) UNIDAD EXTERIOR Condensate drain 3/4" G TUBO DE DRENAJE M 3/4 G 1999 FASH 035 All dimensions in millimeters...
-
Page 19: Dimensions - Packaged Units
1. GENERAL CHARACTERISTICS 1.10. PACKAGED UNITS DIMENSIONS FAMH 020 1500 Electrical coil (option) BATERÍA ELÉCTRICA (OPCIONAL) Condensate drain 3/4" G TUBO DE DRENAJE M 3/4 G 1550 Electrical ALIMENTACIÓN supply ELÉCTRICA 1500 All dimensions in millimeters FAMH020SM2M Scale : 1:30 Date :27/07/2020 FAMH020SM2M_STD FAMH 035... -
Page 20: Airflow Configuration - Duct Positions
1. GENERAL CHARACTERISTICS 1.11. AIRFLOW CONFIGURATION - DUCT POSITIONS MODEL 020 PACKAGED UNIT SPLIT UNIT INDOOR FAN INDOOR FAN COMPRESSOR COMPRESSOR B.E. B.E. OUTDOOR OUTDOOR ELECTRICAL BOX OPTIONAL EXECUTION STANDARD EXECUTION (TO BE CARRIED OUT BY THE INSTALLER) MODEL 035 PACKAGED UNIT SPLIT UNIT INDOOR FAN...
