Page 1 NMP650 / 1K2 Instruction Manual...
Page 2: Table Of Contents
......................Safety Guidelines ......................Product Description ........................ Description ........................Features ......................2. Order Information ..................Output Configuration Guide 2 1 ..................2 2 . Notes on Output Configuration ......................2 3 . Label Marking ..........3 Mechanical Specification and Input/Output Terminals ....................
Page 3: Safety Guidelines

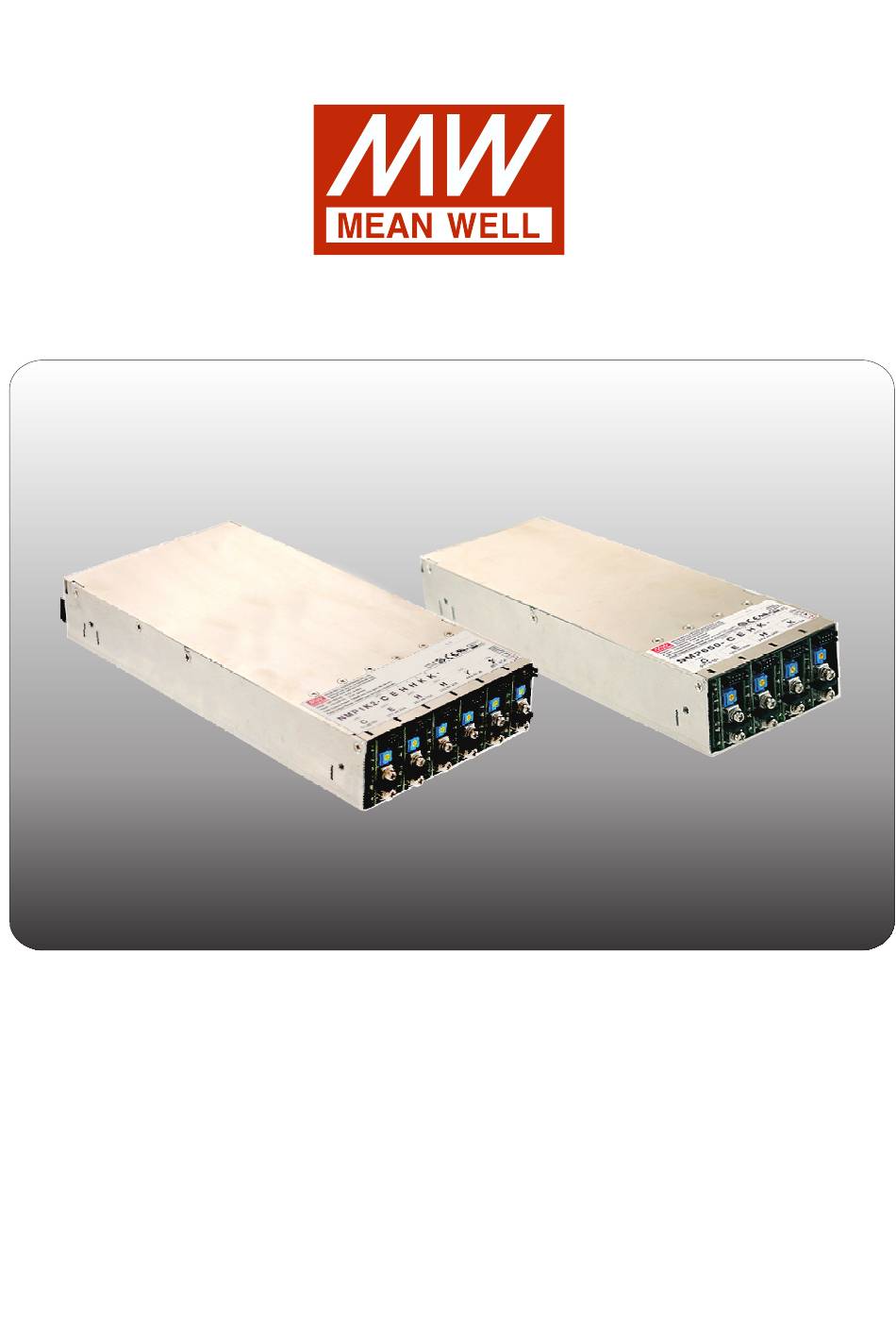

Product Description Description NMP is MEAN WELL's new generation intelligent modular power supply, bringing forth the state-of-the-art Front-End and NMS- 240/NMD-240 output module designs. This family offers output module configurability, intelligent control functions, and 1U low profile form factor. The NMP family also complies with both ITE and medical safety standards, offering the best flexibility for various types of applications.
Page 4 Table 1. Parallel or option code Code SLOT 1 SLOT 2 SLOT 3 SLOT 4 SLOT 5 SLOT 6 ----- ----- ----- ----- ----- ----- ◎ ◎ ----- ----- ----- ----- ◎ ◎ ----- ----- ----- ----- ◎ ◎ ----- ----- ----- -----...
Page 5: 2 . Notes On Output Configuration
The combined operation output power of all modules must be less than the Front-End's rated maximum output power: 1200W for NMP1K2 and 650W for NMP650. Label Marking MEAN WELL ENTERPRISES CO.,LTD. Input: 100-109VAC 6.9-6.3A MEAN WELL ENTERPRISES CO.,LTD. Input: 100-109VAC 12.6-11.5A...
Page 6: Mechanism Of Output Modules
118.5 LD60 CN81 4 6 8 10 VR60 ※Blank slot Blank slot should be assembled with BLANK-NMS240, please contact MEAN WELL for details. ※DC Output Terminal Pin No. Assignment M x a imum mounting torque Assignment Diagram Recommended screw size MAX.
Page 7 Function Description of CN81(NMS-240) Pin No. Function Description Ground. Ground. Turns the output on and off by electrical or dry contact between pin 3(RC2) and pin 1&2(GND). Open: Power ON; Short: Power OFF. Vcc 2 Auxiliary voltage output, 4.5~5.5V, referenced to pin 1&2 (GND).The maximum load current is 10mA. “DC OK”...
Page 8: Product Specifications
4.Product Specifications Front-End Specification MODEL NMP650 (4 Slots) NMP1K2 (6 Slots) VOLTAGE RANGE 90 ~ 264VAC 120 ~370VDC Note.6 FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load INPUT 91%, full case load with H / K module at nominal 24V / 48V only 0.5 , full case load with H / K module at nominal 24V / 48V only EFFICIENCY(Typ.) Note.4...
Page 9: Single Output Module Specification
Single Output Module Specification MODEL NMS-240-05 NMS-240-12 NMS-240-24 NMS-240-48 CONFIGURATION CODE DC VOLTAGE RATED CURRENT 0 ~ 36A 0 ~ 20A 0 ~ 10A 0 ~ 5A CURRENT RANGE RATED POWER 180W 240W 240W 240W OUTPUT (NMS-240) 100mVp-p 150mVp-p 150mVp-p 250mVp-p RIPPLE &...
Page 10: Dual Output Module Specification
Dual Output Module Specification MODEL NMD-240 CONFIGURATION CODE OUTPUT NUMBER DC VOLTAGE RATED CURRENT (max.) 0 ~ 5A 0 ~ 5A CURRENT RANGE RATED POWER (max.) 150W 150W OUTPUT 240W COMBINED POWER (max.) (NMD-240) 250mVp-p 250mVp-p RIPPLE & NOISE (max.) Note.2 VOLTAGE ADJ.
Page 11: Functions
Functions Input Voltage ◎ Input voltage range is 90~264VAC or 120~370VDC. ◎ To ensure proper operation, input voltage must be within the specified range. An incorrect input voltage may cause the unit operate improperly, lose PFC function, or even damaged in worst case scenario. ◎...
Page 12: Short-Circuit And Over Current Protection 4
Please turn off the AC power and remove the conditions causing fan-lock. If there are no observable causes for fan-lock, please remove the unit from your system and send back to our local distributor or MEAN WELL for repair.
Page 13 5.8.2 Single Output Module ON/OFF ◎The NMS-240 modules can be turned ON/OFF individually by using the “ON/OFF” function. ◎Figure 5-5 shows RC2 (CN81 PIN3) and GND (CN81 PIN1 or 2) connection diagram. Connection Status Output Module Status Open (SW OFF) Short (SW ON) NMS-240...
Page 14: Output Module Remote Sense
Output Module Remote Sense(NMS-240 only) ◎ Built-in remote sense circuit that is able to compensate voltage drop up to 0.5V. ◎ When using this function, the sensing wires should either be twisted or shielded to prevent external noise interference (refer to Figure 5-7). ◎...
Page 15: Dc-Ok Signal And Led Indicator
5 11 DC-OK Signal and LED Indicator ◎ DC-OK signal and LED indicator are both used to indicate operation status of the output module. When the output module is operating properly, the DC-OK signal is "HIGH" (4.5~5.5V) and the LED indicator is lit, otherwise, the logics are reversed. ◎...
Page 16: Parallel Operation
Parallel Operation(NMS-240 only) ◎ Up to 4 (NMP650) or 6 (NMP1K2) modules of the same output voltage rating may be connected in parallel. ◎ Before making the parallel connection, adjust the voltage of each module individually to the desired voltage, and ensure the difference in voltage is less than 0.2V.
Page 17: Assembly
Assembly Assembly Procedures STEP 1: ◎ For first time assembly, please remove the Front-End from packaging and proceed to STEP 2. ◎ If the NMP unit has been configured and assembled previously, please turn off the unit and remove all input/ output connections. ◎...
Page 18 Mylar film Mylar film Note : Mylar films need to fold over the modules STEP 4: ◎ Once all modules have been installed or reconfigured, place the top cover back and secure with screws as shown below. While securing the top cover, ensure all modules are held secure by the notches and screws. Please set the electric screw driver's torque setting to 6kgf-cm.
Page 19 STEP 6: ◎ Connect AC power to the NMP unit and test each module to ensure proper operation. The green LED indicator on module should light up. ◎ Measure the output voltage of each module and make sure it is within the specified output voltage tolerance range. If the load requires a different voltage that is within the specified voltage adjustment range, adjust the voltage by turning the SVR as shown below.
Page 20: Assembly Example
◎ In parallel operation, CS and GND pins of CN81 of all modules need to be connected in parallel. MEAN WELL offers connection accessories for 2 units (NMS-240-P2), 3 units (NMS-240-P3), 4 units (NMS-240-P4), 5 units (NMS-240-P5), and 6 units (NMS-240-P6).
