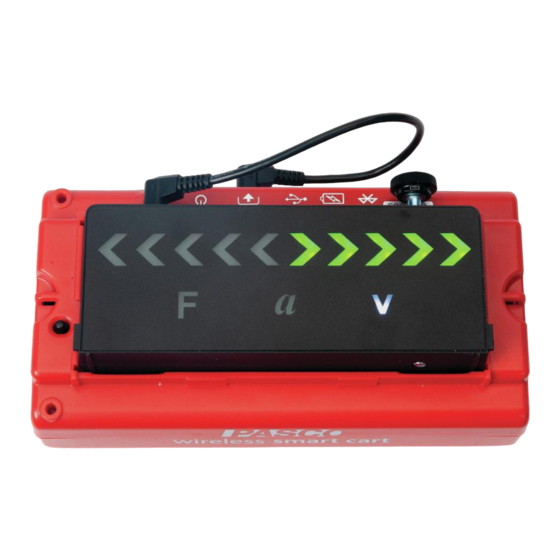

ME-1246; Smart Cart Vector Replacement Instructions
Battery part number PS-3295; Li-Poly 1000 mAH

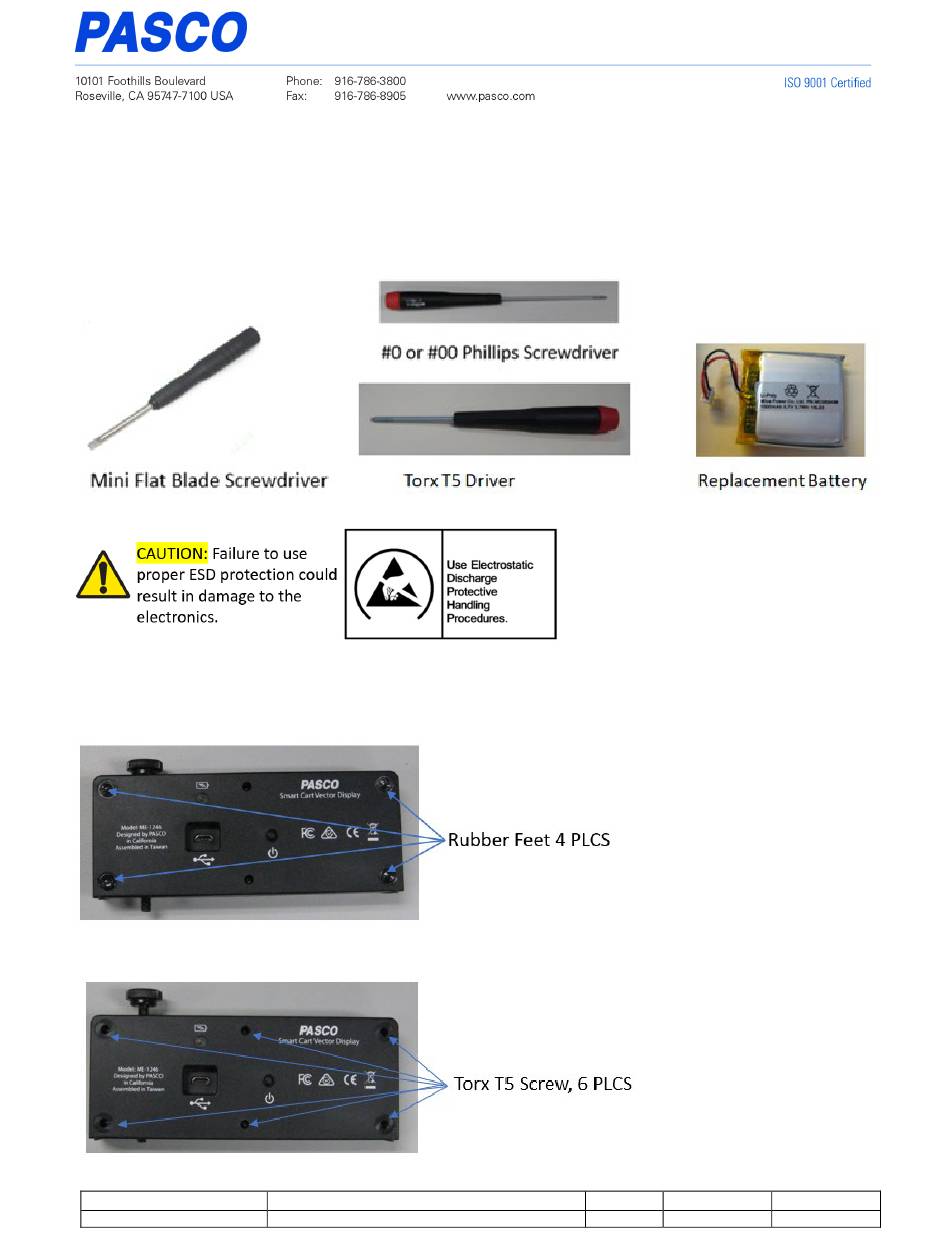

Recommended Equipment: (PS-3299; Battery Replacement Tool Set) Note: Does not contain a
mini flat blade screwdriver.
Step 1:
Use a mini flat blade screwdriver to pry off and remove the Qty=4 rubber feet. Place
on a non-stick surface for later reassembly.
Step 2:
Unscrew and remove 6 Screws with the Torx T5 Screwdriver.
PASCO Form Number
013-17440
Description
ME-1246 Battery Replacement Instructions
Date
12-07-22
Page 1 of 3
Revision
A
Advertisement
Table of Contents
Related Manuals for PASCO ME-1246
Summary of Contents for PASCO ME-1246
- Page 1 ME-1246; Smart Cart Vector Replacement Instructions Battery part number PS-3295; Li-Poly 1000 mAH Recommended Equipment: (PS-3299; Battery Replacement Tool Set) Note: Does not contain a mini flat blade screwdriver. Step 1: Use a mini flat blade screwdriver to pry off and remove the Qty=4 rubber feet. Place on a non-stick surface for later reassembly.
- Page 2 Unplug and remove the battery. Add the replacement battery at the location shown. Plug the battery into its mating connector and reverse the steps noted above to complete the reassembly. PASCO Form Number Description Date Revision 013-17440 ME-1246 Battery Replacement Instructions 12-07-22 Page 2 of 3...
- Page 3 If you need further assistance, please contact Technical Support at support@pasco.com through www.pasco.com on chat. To access chat through your browser, please enable all cookies on our website. PASCO Form Number Description Date Revision 013-17440 ME-1246 Battery Replacement Instructions 12-07-22 Page 3 of 3...
