Summary of Contents for ADGT EDM106

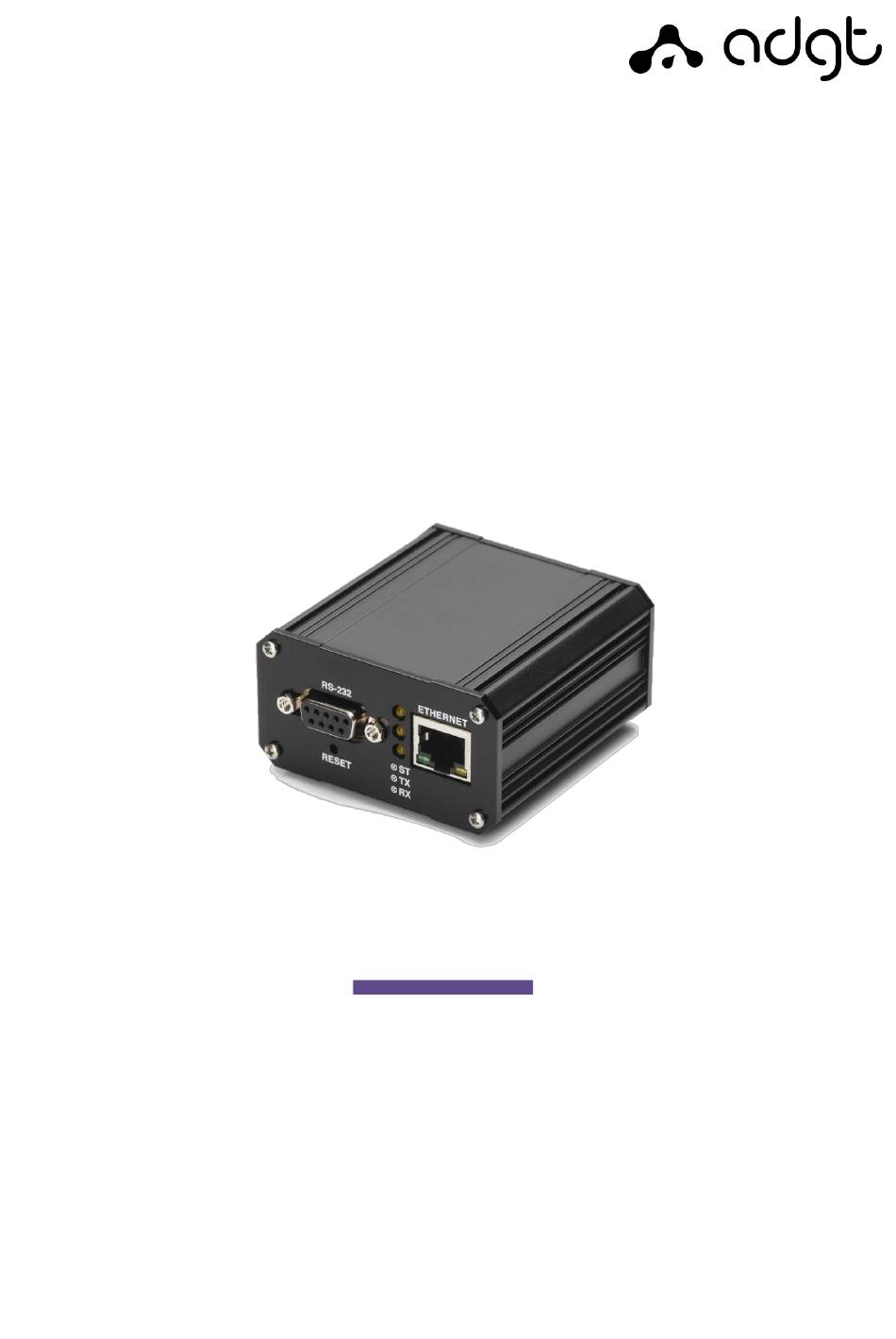

- Page 1 EDM Serial-to-Ethernet Converters User Guide...
- Page 2 ADGT systems s.r.o. reserves the right, without any prior notice, to make changes to the User Guide, related to the improvements of hardware and software, as well as to eliminate typos and inaccuracies.
-
Page 3: Table Of Contents
Configuring Converter via Console port (RS-232) ..................14 Reading Logs ................................... 15 Reboot and factory reset ..............................15 Firmware and Configuration Updates ........................... 16 Appendix 1. List of commands for configuring converter via the console port ......17 Phone: +420 538 890 720 E-mail: info@adgt.cz... -
Page 4: Chapter 1. Product Overview
• Scope of application EDM106 converters are widely used in automated systems for monitoring and control of technological objects and processes, allowing to poll the meters, to manage the loads, to perform remote configuration and administration of industrial devices remotely. -
Page 5: Technical Specifications
EDM Serial-to-Ethernet Converters User Guide ver. 2.0 | 2021-09-01 Technical specifications Table 1. Converter EDM106. Technical specifications. Parameter Description Microcontroller STM32F207VCT Processor ARM 32-bit Cortex -M3 120 MHz Flash-memory 256 Kb 128 Kb Interfaces Ethernet (x1) RJ-45, 10/100 Base-TX. Transmition protocol: TCP/IP... -
Page 6: Product Appearance
Low voltage power input 10-30 VDC terminal block Low voltage power input 10-30 VDC 2,3,4,5 Not used Connector - 6P6C Ground 1 EDM106: T (T1, T2) – terminal resistor output. EDM106-G: G (G1, G2) – isolated ground connector. Phone: +420 538 890 720 E-mail: info@adgt.cz... -
Page 7: Connector Db-9F Of Rs-232 Interface
EDM Serial-to-Ethernet Converters User Guide ver. 2.0 | 2021-09-01 Connector DB-9F of RS-232 interface Interface RS-232 of converters EDM106 has the standard 9-pin connector DB-9F. The pinout of the connector is shown in Table 3. Table 3. Pinout of DB9-F connector. - Page 8 Power connection / ST LED-indicator is on for 1 second, and then all LEDs flash once alternately (from bottom to top and from top to Resetting the device / bottom) Factory settings reset Phone: +420 538 890 720 E-mail: info@adgt.cz...
-
Page 9: Chapter 2. Operating The Converter
7. Install the device. Depending on the type of mounting version, EDM106 converter can be placed horizontally, on a flat surface, or mounted on a wall or on a DIN-rail (see sticker at the housing for mounting options). -
Page 10: Configuring Edm Converter
EDM Serial-to-Ethernet Converters User Guide ver. 2.0 | 2021-09-01 Configuring EDM Converter The EDM106 converter can be configured in two ways: through the web interface and through the console port (port RS-232). Configuring Converter via Web Interface Setting up a local connection in Windows 10 After connecting converter to a PC or LAN hub, it is necessary to configure the local connection. - Page 11 If the converter is located in the subnet which differs from the PC's one, the IP-address of the converter must be specified as the gateway. 6. Click OK. If the connection was successful, you can proceed to configuring the device through the web interface. Phone: +420 538 890 720 E-mail: info@adgt.cz...
- Page 12 After the successful authorization, the main page of the web interface with the current settings of the device will appear in the browser window. Fig. 8. Converter EDM106. Main page of web interface. NOTES: You can set a new password in the General settings menu.
- Page 13 IP-address of server, to which the Server IP address (not specified) connection will be made Authorization type No authorization No authorization, ADGT 15-digit number for registration on the Serial number Each port has its own serial number server (when choosing an authorization type ADGT)
-
Page 14: Configuring Converter Via Console Port (Rs-232)
3. Open any terminal program on your PC, for example PuTTY. In the connection window, select Serial connection, enter the COM-port number of the converter, the port speed (115200) and click Open. 4. To access the settings in the console window, enter the password (default – adgt): passw adgt The responce will be: Authorization successful —... -
Page 15: Reading Logs
With the RESET button: To reset the settings, press the RESET button on the device housing with a thin object simultaneously with turning on the power and hold the button pressed for about 5 seconds. Phone: +420 538 890 720 E-mail: info@adgt.cz... -
Page 16: Firmware And Configuration Updates
Firmware update To update the firmware version of the converter: Download the archive with the current firmware version from the website adgt.cz. In the menu Update → Firmware update, specify the path to the firmware file with the extension .crt and click Upload. -
Page 17: Appendix 1. List Of Commands For Configuring Converter Via The Console Port
When operating the converter through the console port, the user can both read and change the current converter settings. The list of commands is given in the Table 8. To access the settings in the console window, enter the password (default – adgt): passw adgt The responce will be: Authorization successful —... - Page 18 2 – odd 0 – no check rs485_1_port Port number Disabled, Closed, IP-address, if rs485_1_remote Interface state connected Serial number for ADGT type of rs485_1_serial authorization rs485_1_server Server address for Client mode rs485_1_size_pack Maximum TCP Packet Length from 1 to 1024 byte 0 –...
- Page 19 Port number Disabled, Closed, IP-address, if rs485_2_remote Interface state connected rs485_2_serial Serial number for authorization ADGT rs485_2_server Server address for Client mode rs485_2_size_pack Maximum TCP Packet Length from 1 to 1024 byte 0 – 1 character 1 – 0.5 characters...
