  • Page 1 KS-S22 Pro User Manual...
  • Page 3 CAUTIONS Electric unicycle is designed for the outdoors and short distance personal transport. SAFETY IS THE NUMBER ONE PRIORITY! PLEASE RIDE UNDER LOCAL LAW! The user manual below is a quick and convenient guide of safety & item functions/features to end user. We can’t ensure all types of situation emergency are covered.

  • Page 4: Table Of Contents

    Contents 1. Product Details----------------------------------------01 2. Safety Instructions-------------------------------------08 3. APP---------------------------------------------------13 4. Learn to Ride------------------------------------------14 5. Warning-----------------------------------------------17 6. Suspension--------------------------------------------21 7. Maintenance-------------------------------------------23 8. Warranty----------------------------------------------25...

  • Page 5: Product Details

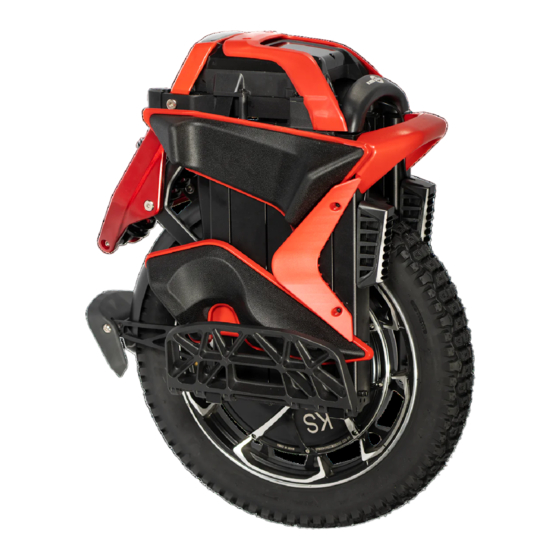

    1. Product Details 1.1 Diagram: KS-S22 Pro 1. Seat cushion 9. Battery 16. Rear Handle 2. Display 10. Pedal 17. Taillight 3. Trolley 11. Motor 18. Suspension 4. Front Handle 12. Tire 19. Suspension bracket 5. Front Light 13. Knee protection 20.
  • Page 6 Top Charging Voltage: DC 126V Rated Capacity: 2220Wh Smart BMS with balance and protect overshoot / over discharge / over-current / short circuit / overheating function, support monitoring the battery conditions via KingSong APP Mileage Around 200kms Max Load 120kg...
  • Page 7 Adapter Specs Input AC 100~240V / Output DC 126V 5A Charging Time Around 4-5hrs Working -10℃ / +60℃ Temperature Color Dimension & Weight Suspension DNM RCP 2S 750lb Spring Suspension Suspension Using a variable lever the wheel has dampening Travel travel distance of 130mm, which is transferred to the rear spring suspension with a travel distance of 75mm.
  • Page 8 Package Size 680(L)*330(W)*970(H)mm Weight Around 35kg Port Dual GX16-6 aviation charging port; power switch; light sensor port Protective Measures Lift Sensor Lift sensor accurately senses and determines when wheel is lifted off the ground to stop tire rotation. Roll Protection 45°...
  • Page 9 Motherboard The U-shaped groove between the motherboard Waterproof base and the upper cover is connected with a Protection silicone sealing ring, which greatly enhances the waterproof performance and provides safe waterproof protection for the motherboard base Uniform force on the pedals with raised small Pedals Anti-slip Protection columns which is more effective than traditional...
  • Page 10 Hardware Features The motherboard is designed with a 4 layer Main Board structure, allowing for better stability performance. 12 large individual TO-247 imported MOS to sufficiently support the 4000W motor. MOS is attached to the magnesium alloy body frame of the wheel, and 16 heat dissipation channels have been added to the bottom of the magnesium alloy motherboard base, for better heat dissipation,...
  • Page 11 Temperature Temperature of the motherboard and motor is System continually monitored to ensure rider safety Handle Aluminum constructed handle designed for ergono- mic pushing of the wheel or lifting of the wheel Trolley Independent trolley design, more portable to use Motor Higher power 4000w motor that provides a maxim- um torque of 200N.m providing fast acceleration...

  • Page 12: Safety Instructions

    ● S22 Pro is an entertainment product, Which is different from motor vehicles driving on the road. Before mastering riding skills, you need to practice. Kingsong is not responsible for any injuries or damage caused by a rider's inexperience or failure to follow the instructions in this document.
  • Page 13 ● In places without laws and regulations governing self- balancing electric vehicles, comply with the safety guidelines outlined in this manual. Kingsong is not responsible for any property damage, personal injury/death, accidents, or legal disputes caused by violations of the safety instructions.
  • Page 14 ● Before each ride check for loose fasteners, damaged components, and low tire pressure. If the S22 Pro makes abnormal sounds or signals an alarm, immediately stop riding. Contact your dealer/distributor for service. ● Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly with the chin strap in place, and provides protection for the back of your head.
  • Page 15 A) The following people should not ride S22 Pro: i. Anyone under 18 years old or above 50 years old. ii. Anyone under the influence of alcohol or drugs. iii. Anyone who suffers from disease that puts them at risk if they engage in strenuous physical activity.
  • Page 16 S22 Pro tilts back or sounds an alarm. Do not attempt to override the speed limiter. F) While the Kingsong App is useful, do not allow the App to distract you while you are riding. Always pay attention to your surroundings.

  • Page 17: App

    Limited Warranty. 3. APP ● For Android apk: Please download from Google play, ‘kingsong’ is the exact one. ● For IOS app: Please download from apple store, ‘kingsong’ is the exact one. KingSong APP(Android) KingSong APP(IOS)

  • Page 18: Learn To Ride

    4.2 Start Learning to Ride • Like riding a bicycle or unicycle, it takes a certain skill level to ride Kingsong S22 Pro. For different customers, it may take 2-20 hours to ride well.
  • Page 19 01. Get used to the way Kingsong 02. Using a friend, wall, or handrail: S22 Pro: step on one pedal, then put both feet on Kingsong S22 swing your leg back and forth to Pro and practice riding slowly feel the controls.
  • Page 20 The shifting your weight slightly. further you lean, the faster you 07. To get off: come to a stop by centering your weight, then step off Kingsong S22 with one foot.

  • Page 21: Warning

    5. Warning • You must read and understand the Warning Instructions section of this manual before attempting to ride the S22. ● Always wear a helmet and ● Use caution when riding on protective clothing when slopes. Avoid riding on steep riding.
  • Page 22 ● Do not ride on limited ● Do not ride over holes, curbs, traction surfaces. steps, or other obstacles. ● Do not rock back and forth ● Do not ride double or carry or shift your weight abruptly. any passengers.
  • Page 23 ● Do not accelerate when the ● Do not ride on public roads, Kingsong S22 tilts back or motorways, or highways. sounds an alarm. ● Do not exceed the speed ● Do not ride with single leg on limit of 70km/h.
  • Page 24 ● Maintain contact with the ● Do not get wet. Do not ride ground at all times. Do not through puddles or other jump or attempt stunts. bodies of water.

  • Page 25: Suspension

    6. Suspension 6.1 Spring Suspension Description Compression adjustment(Blue) Rebound adjustment(Red) Preload adjustment...
  • Page 26 specification A Total Length B Route 190±2 51±2 200±2 56±2 210±2 61±2 220±2 66±2 240±2 76±2 265±2 85±2 Compression adjustment + direction rotation, pressure increase - direction rotation, pressure decrease Rebound adjustment + direction rotation, damper increase(slow) - direction rotation, damper decrease(fast)

  • Page 27: Maintenance

    7. Maintenance 7.1 Cleaning WARNING ● Make sure the S22 Pro is powered OFF, the charge cable is unplugged, and the silicone cap on the charge port is tightly sealed before cleaning; otherwise you may expose yourself to electric shock or damage the electronic components. Do not wash your S22 Pro with a power washer or high pressure hose.
  • Page 28 sunlight or temperature extremes (both hot and cold) may affect the vehicle’s appearance, battery life, and tires. 7.2 Battery Maintenance WARNING ● Do not attempt to disassemble the battery. ● Do not allow the battery to get colder than -20°C or hotter than 50°C, e.g.

  • Page 29: Warranty

    Limited Warranty. 8. Warranty For warranty policy, please consult with the point of purchase or email to the manufacturer’s service team: support@szkingsong.com Again, we appreciate your purchasing of Kingsong products.
  • Page 32 Kingsong Intell Co.,LTD Address : BLDG 7, NO 71 XINGHU RD, 8TH INDUSTRY PARK, HONGXING, YUTANG,GUANGMING,SHENZHEN Tel : +86-755-23193477 E-mail : info@szkingsong.com...
