Summary of Contents for Wittern VendNet SCRUBYRAK 3597

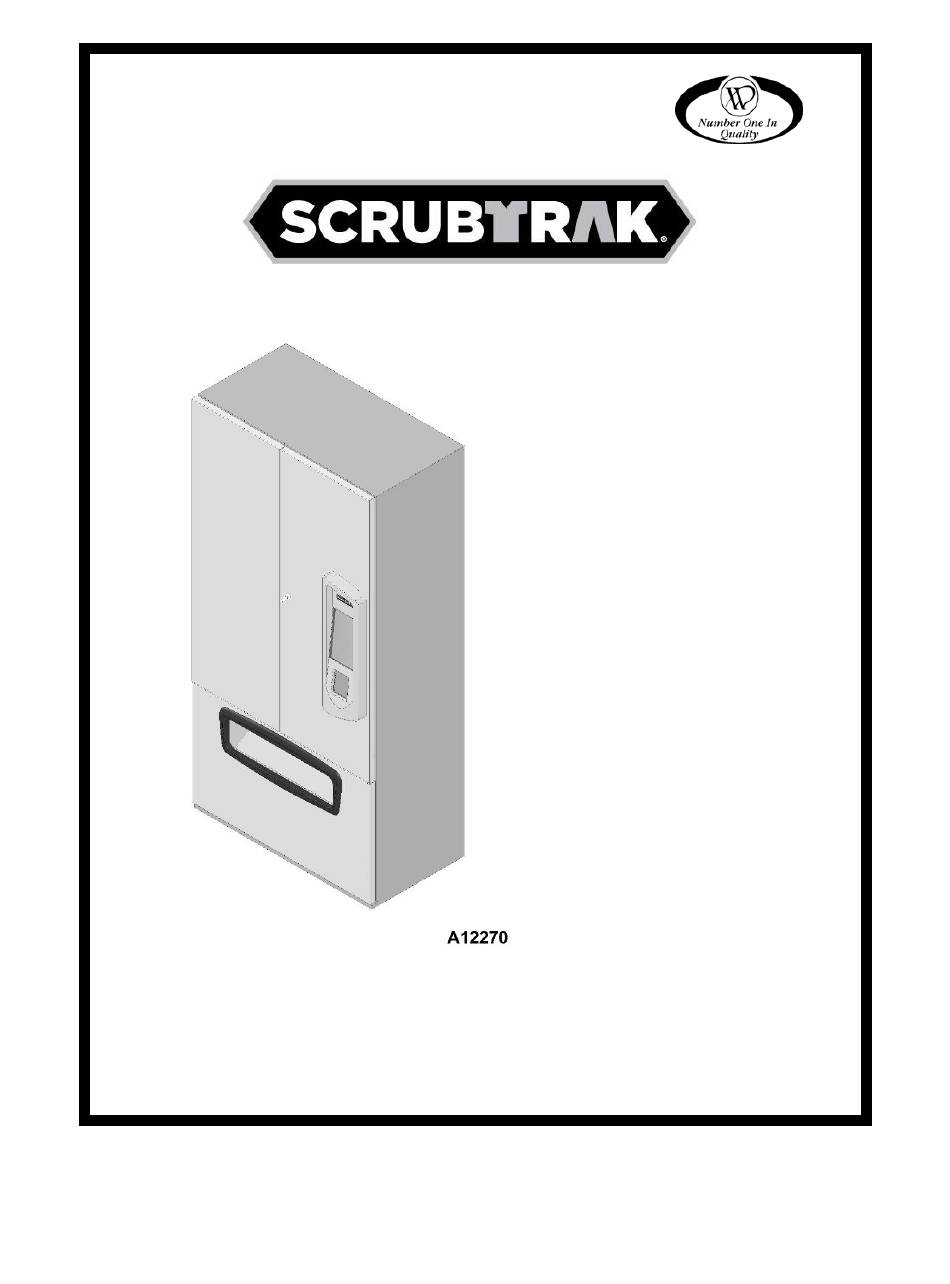

- Page 1 MODEL: 3597 - DISPENSER HOST 3598 - DISPENSER SAT SERVICE MANUAL VendNet 165 North 10 Street Waukee, IOWA 50263-0488 United States of America AUG 2017 4225059•B...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............................1 SPECIFICATIONS ............................2 DIMENSIONS ............................2 ELECTRICAL ............................2 MACHINE OPERATION ..........................2 UNPACKING ..............................2 INSTALLATION .............................. 3 GROUNDING (EARTHING) & ELECTRICAL.................... 3 LOADING PRODUCTS ..........................3 CONTROLLER FUNCTIONS ......................... 4 DISPENSING MODE ..........................4 MAKE A SELECTION .......................... -
Page 3: Introduction
INTRODUCTION This manual contains instructions, service and installation guidelines for the ScrubTrak product line. The Scrub Trak models are equipped with an electronic control system. All dispensing functions and features are programmed through the controller or online database. Total dispense cycles performed by the machine, information for individual selections, complete rows or total machine can be compiled and used for inventory and order records by using the online database login by going to http://scrubtrak.vendnovation.com... -
Page 4: Specifications
SPECIFICATIONS DIMENSIONS 3597/3598 Model (ScrubTrak) Width 38.5 inches Weight 588 lbs. Depth 23 inches Height 78 inches ELECTRICAL Voltage 115 VAC Cycle 60 Hz Amperage 115 VAC – 24 VAC Transformer MACHINE OPERATION Suitable for indoor use only. This appliance is not Location suitable for installation in an area where a water jet could be used. -
Page 5: Installation
INSTALLATION Position the machine in its place of operation on a flat, smooth surface in such a way that the machines power cord easily reaches the power outlet or receptacle (DO NOT USE AN EXTENSION CORD), and check that the door will open fully without interference. -
Page 6: Controller Functions
CONTROLLER FUNCTIONS DISPENSING MODE The machine automatically defaults to Dispensing Mode after it is turned on. MAKE A SELECTION When a selection is made a dispense attempt will take place. DISPENSE CYCLE The normal home-switch-dispense cycle will be used. Both the dispense motor and a dispense timer are started. The selection motor rotates to the home-switch position. -
Page 7: Quick Reference Chart
QUICK REFERENCE CHART LOCAL IP SETTINGS WEB IP SETTINGS HARDWARE CONFIGURATION RESTOCKING COUNT MOTORS DHCP PRIMARY HOST ID MAIN MACHINE RESTOCK TO PICKLIST PRIMARY HOST PORT TEST CARD READER SATELLITE MACHINE UPLOAD INVENTORY STATIC IP ALTERNATE HOST IP TEST DOOR USD 1 RESTOCK CHECK IN SUBNET MASK... - Page 8 LOCAL IP SETTINGS To enter this menu, press the service mode button and touch Local IP Settings LOCAL IP SETTINGS STEP DISPLAY Main Menu Press Service Mode Button Press Local IP Settings Local IP Settings Menu DHCP Press on/off to Enable/Disable DHCP (CURRENT SETTING) STATIC IP Press in text box to change Static IP...
- Page 9 HARDWARE MENU To enter this menu, press the service mode button and touch Hardware COUNT MOTORS STEP DISPLAY MAIN MENU Press Service Mode Button Press Hardware Button HARDWARE MENU COUNTING MOTORS Press Count Motors Button PLEASE WAIT… MOTOR COUNT, PRESS TO CONTINUE TEST CARD READER STEP...
- Page 10 CONFIGURATION To enter this menu, press the service mode button. CONFIGURATION. MAIN MACHINE MOTOR RANGE STEP DISPLAY MAIN MENU Press Service Mode Button Press Motor Range Button MOTOR RANGE Press First Motor text box to enter the First Motor (XX) ENTER FIRST MOTOR Press Second Motor text box to enter the Last Motor (YY) ENTER LAST MOTOR...
- Page 11 USD1 Programming steps are the same as MAIN MACHINE with the following exception: MOTOR RANGE will be 30 to 37. USD2 Programming steps are the same as MAIN MACHINE with the following exception: MOTOR RANGE will be 40 to 47. USD3 Programming steps are the same as MAIN MACHINE with the following exception: MOTOR RANGE will be 50 to 57.
-
Page 12: Preventive Maintanence
PREVENTIVE MAINTANENCE CAUTION: ALWAYS DISCONNECT POWER SOURCE BEFORE CLEANING OR SERVICING WARNING: THIS DISPENSING MACHINE MUST NOT BE CLEANED WITH A WATER JET. ONCE A MONTH CLEAN CABINET INTERIOR Wash with a mild detergent and water, rinse and dry thoroughly. ... - Page 13 The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability.
