Summary of Contents for CST 9448

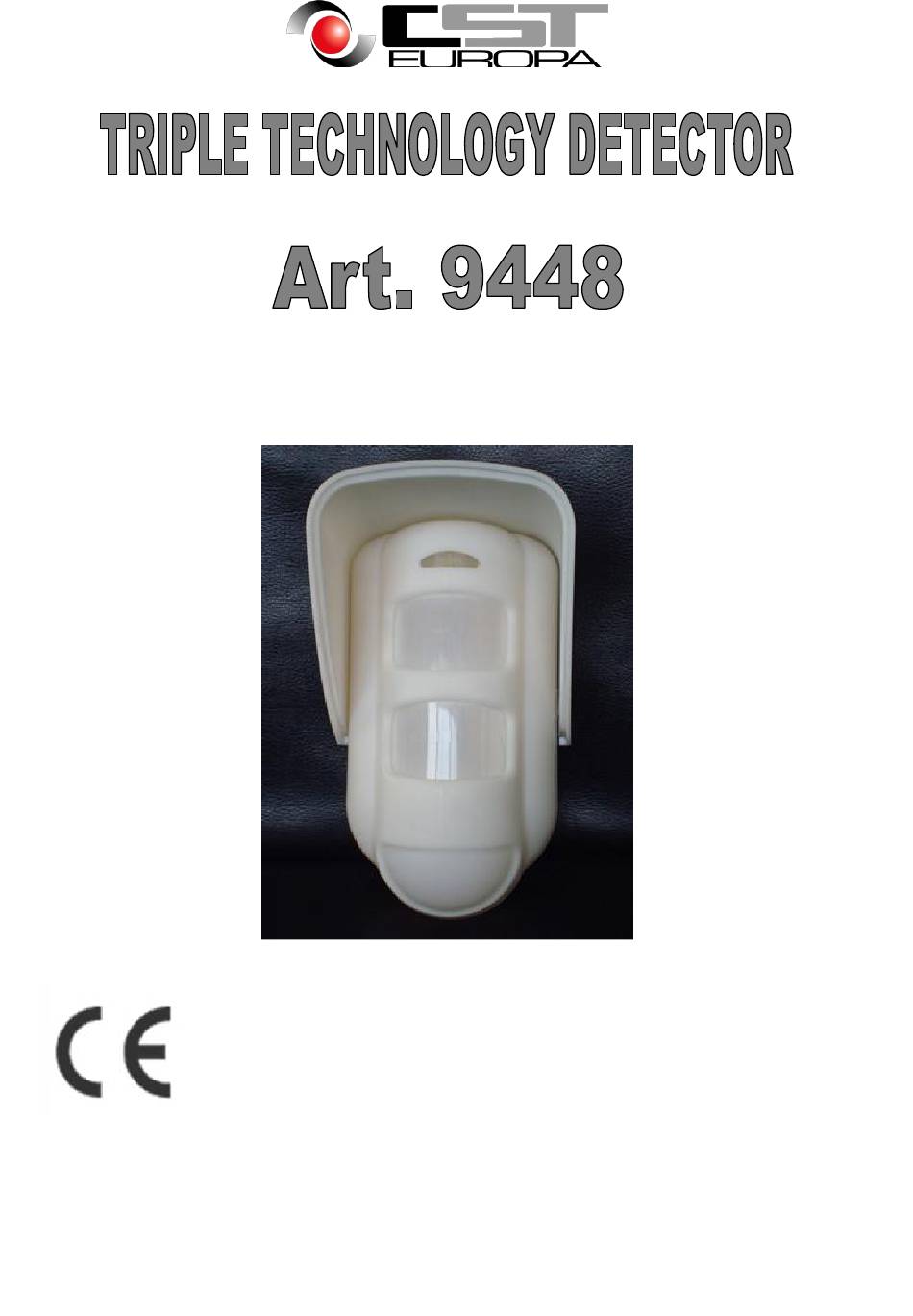

- Page 1 MADE IN ITALY...
- Page 2 TECHNICAL SPECIFICATIONS Coverage 15 mt, angle 90° Installation on the wall Frequency microwave 10.525 GHz Alarm technology DSP(Digital Signal Processing) Detecting distance From 3 to 15 mt Detection areas 8 aeras for each sensor Installation height 0,8-1,4 m (reccomended 1mt) Detecting mode Selectable: AND-OR Power supply...
- Page 3 COVERTURE DIAGRAM Detection plan view. The microwave detection covering area is in red. Configuration AND position A,B,C Configuration OR1 Configuration OR 2 position A Configuration OR 2 position B Configuration OR 2 position C...
- Page 4 DETECTION Configuration AND position A Configuration AND position B Cconfiguration AND position C...
- Page 5 INSTALLATION METHOD For a correct working of the Triple Technology Detector you have to know that: The microwave is sensitive to any movement, do not point the sensor towards hedges or tree branches. Adjust the range rightly. Metal surfaces reflect the microwave modifying the range ...
- Page 6 DIP 2 ANTI MASK Setting the DIP 2 Off we exclude anti-masking. Set dip 2 in ON you turn on the front masking infrared active If the dark field detection sensor and the dip 2 is ON, in a maximum time of 10 seconds generates a tamper alarm (the output-mask open) and remains in alarm as long as it remains the cause .
- Page 7 WORKING/OPERATING TEST Setting Dip 1 in ON position Check and adjust the covering area (see the previuos diagramm) Move into the protecting area and check the specific indicators (LED) switching on. Considering that the two infrared sensors are sensitive to the across and not to the approach.
- Page 8 Caution /Take note In precence of hedges or bushes, cover the beams infrared lens corresponding to the plants like in the figure.
