OneScreen HL7 User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

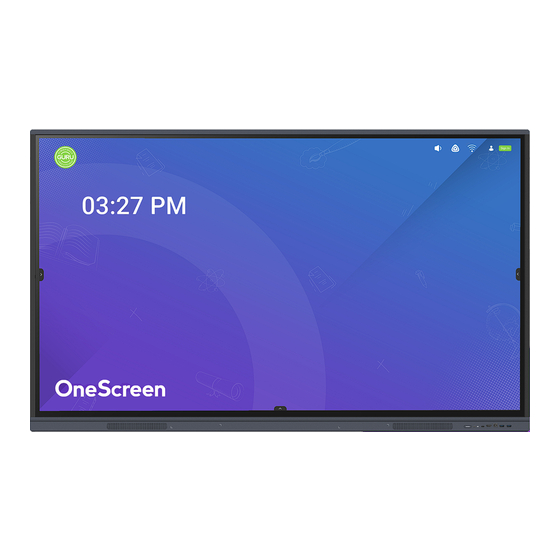

OneScreen HL7

User Manual

55" | 65" | 75" | 86"

Table of Contents

Need help?

Do you have a question about the HL7 and is the answer not in the manual?

Questions and answers

Summary of Contents for OneScreen HL7

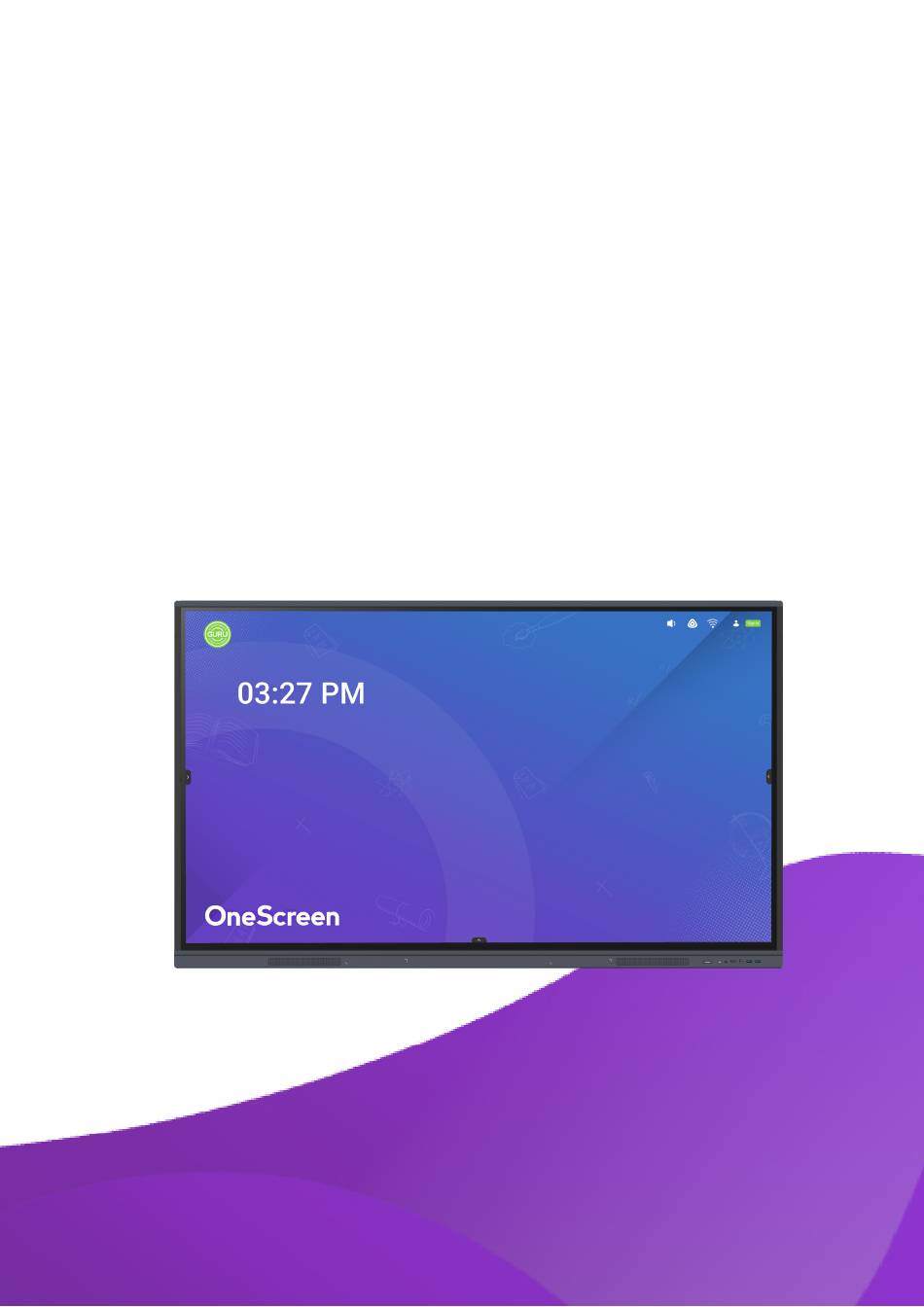

Page 1 OneScreen HL7 User Manual 55” | 65” | 75” | 86”...
Page 2: Table Of Contents
..........................................Front View ......................Left View ......................Bottom View 8. Turning on your OneScreen HL7 ................9. Device Registration ....................10. Connecting OneScreen HL7 with the Internet ............................... 10.1 Connecting via Wi-Fi ................10.2 Connecting via Ethernet Cable...
Page 3 OneScreen Table of Contents 11. Navigating through your OneScreen ................................11.1 OneScreen Homepage ..........11.2 Editing the Widgets on your OneScreen Homepage ............11.2 Navigation toolbar on your OneScreen HL7 ....................11.3 Screen Gestures 12. OneScreen Apps ........................................
Page 4 OneScreen Table of Contents 14. Connecting your OneScreen with other devices ..............................14.1 Wired Connectivity ..................... 14.2 Wireless Connectivity 15. Remote Control ......................38 16. RS-232 Guide ......................39 ..................16.5 Setting up RS-232 Control ....................16.2 RS-232 Commands 40, 41, 42 17.
Page 5: About Onescreen
From video conferencing solutions to interactive learning tools, OneScreen offers customized solutions with an emphasis to improve our customer’s experience. Our software bundle comes with each of our OneScreen Panels and allows users to collaborate over video/audio, share screens, present, Write and remotely manage devices.
Page 6: Safety First
The exclamation mark within a The installation of this product triangle is intended to alert the should be completed by an user to the presence of important OneScreen Trained Installer operating and maintenance (servicing) instructions NOTE Provides additional information to supplement operation in the...
Page 7: Placement
Make sure that the display and its auxiliaries are reliably grounded prior to use • Cut off the power supply and contact OneScreen Support upon discovery of any abnormality, including any unusual smell, smoke, power leakage, or abnormal temperature 2.3 Power Supply •...
Page 8: Led Screen
Installation of the display near the sea, in a saline area, an area containing high concentration of sulfur in the atmosphere, or allocation with high indoor-outdoor temperature difference may result in failure or affect the service life of the device. Please consult OneScreen Support where this is unavoidable. 2.4 LED Screen •...
Page 9: Humidity
OneScreen’s Interactive Flat Panels. Equipped with the most advance and cutting-edge tools focusing on providing our valued customers with a personalized experience for their lessons and presentations, HL7 provides you with an advanced platform for your learning and work environment.
Page 10: Inside The Box
4. OneScreen Installation The HL7 can be installed on a wall using the wall mount that is shipped with the product or a mobile cart that can be additionally purchased. All installations should be handled by professionals. Refer to the additional...
Page 11: Ops Pc Setup
OneScreen 5. OPS PC Setup The OPS PC (Open Pluggable Source) is a small computer that can be inserted into your HL7 to access Windows functionality on your OneScreen without the need to connect a PC externally using cables. Follow the steps below to set-up the OPS PC on your OneScreen.
Page 12: Camera Setup
Insert the USB cable of the camera into either the USB port of the OneScreen to use it on the Android OS or the USB port of the OPS to use it on the Windows OS. You can use the clip of the web-camera to pin it on top...
Page 13: Ports & Connectivity
OneScreen 7. Ports & Connectivity 7.1 Front View Description Front Speakers (15W each) Description Description Power button with light. White: ON & Red: OFF HDMI port IR transceiver USB touch (type B) port Ambient light sensor USB 3.0 ports (2x)
Page 14: Left View
OneScreen 7.1 Front View Left View of OneScreen HL7 Left Port of OneScreen HL7 Description Description USB 2.0 port USB 2.0 ports (2x) HDMI Out port LAN in/out (Dual function) HDMI In Ports (2x) RS-232 Port USB Touch Ports 7.1 Bottom View...
Page 15: Turning On Your Onescreen Hl7
1. Connect the power cable to the power inlet present at the bottom of your OneScreen 2. Turn on the power switch present right next to the power inlet 3. Press the power button on the bottom right of your OneScreen to power on your OneScreen HL7...
Page 16: Device Registration
2. The screen will prompt you to connect to a Wi-Fi network. You may choose to connect to Wi-Fi network or connect a LAN cable. If connecting using Wi-Fi, select the network you want to connect with. Enter the Password and press Connect (more details can be found under section 9 “Connecting OneScreen HL7 with the Internet”) 3.
Page 17: Connecting Onescreen Hl7 With The Internet
Connect your device to a network using ethernet by simply plugging in an ethernet cable into the LAN-In (RJ-45) Port located on the left side of your OneScreen. Once you have the cable connected, you will be able to access the internet on your OneScreen.
Page 18: Navigating Through Your Onescreen
OneScreen 11. Navigating through your OneScreen 11.1 OneScreen Homepage...
Page 19: Editing The Widgets On Your Onescreen Homepage
Description Function OneScreen Account Your personalized OneScreen profile containing all your data and files synced on the cloud that you can access on any OneScreen panel by simply signing in Guru Button Tap on it to reach out to the OneScreen GURU Team for live; instant support and training Browser Your OneScreen’s browser for surfing the web...
Page 20: Navigation Toolbar On Your Onescreen Hl7
11.2 Navigation toolbar on your OneScreen HL7 The navigation bar on your OneScreen HL7 is accessible from both sides or the bottom of the display. Simply tap on the arrow icons on the left and right side of your display to access the navigation bar on the sides or tap the arrow icon on the bottom of your homepage to make the navigation bar pop up from the bottom of your display.
Page 21: Screen Gestures
Description Function Files Can be used to access the storage of your OneScreen Android or any connected devices like USBs or External Hard Drives. All your downloads, documents, videos, pictures etc. are stored and can be accessed from here You may use it to surf the internet or access websites...
Page 22: Onescreen Apps
The software has all the tools that you would need in a classroom or a meeting room. OneScreen Write has an infinite canvas size and is presented in an easy-to-use interface allowing multiple inputs such as fingers &...
Page 23: Annotate
Eraser Allows you to select and change the side of eraser on your OneScreen Write. You can also use the gesture detection feature of OneScreen HL7 to rub your palm against the board to erase the...
Page 24 Select On-screen annotation tool freezes all the icons and functions on your OneScreen and thus makes them unresponsive to touch. You can tap on select tool to navigate through your OneScreen while the on-screen Annotation is turned on Freezes all the icons and functions on your OneScreen so you can start annotating over them...
Page 25: Onescreen Share
Displays the name of the network you need to connect your device to establish a connection with OneScreen HL7 Device Name Shows you your Device ID. This ID is unique for all OneScreen Panels, and you can use it to make a connection with a particular device of your choice OneScreen Share...
Page 26: Onescreen Account
‘Share’ Button on your OneScreen 4. In case your client device is asking for a code, note the 6-digit connection code on your OneScreen Share App’s homepage and type that code in the OneScreen Share Client App on your client device 5.
Page 27 QR to get all your settings and personalization synced up to any other OneScreen HL7 that you use. It is a smart way to use your drive storage with OneScreen. You can save your annotations, documents, and teaching material directly to your drive and access it on OneScreen HL7 and vice versa.
Page 28: Onescreen Store
OneScreen HL7. It has all the applications available for the android of your OneScreen HL7. You can access it through the Apps icon of your Navigation Toolbar on your OneScreen HL7. It has all types of apps that you would want to use on your OneScreen HL7 such as your video conferencing tools, learning apps, games etc.
Page 29: Onescreen Central
1. Open your OneScreen Store by going to the Apps section from the navigation bars on your OneScreen 2. Search for your desired app by tapping on the search icon on the bottom right corner of your OneScreen Store’s home screen and typing the name of the desired application 3.
Page 30: Onescreen Hype
‘admin@’ is your domain name i.e., in case if your username is admin@xyz your domain name will be ‘xyz’. You may also use the advance wizard option to name your OneScreen HL7 and add tags to it on device’s Central Platform. Central comes pre-installed in your OneScreen. Follow the steps below to enroll your panel with your central account.
Page 31 OneScreen OneScreen Hype App comes pre-installed on your OneScreen HL7. You can open it up by navigating to the apps section of your OneScreen in the bottom or side toolbars. The home page of your OneScreen Hype has multiple icons each having the functionalities mentioned below.
Page 32: Onescreen Guru
The Guru App comes pre-installed in your OneScreen HL7 and can be accessed via the Guru Button on the top-left corner of your OneScreen HL7’s home screen or via opening the Guru app from the apps section of your OneScreen.
Page 33: Onescreen Quizwiz
These can either be copied to the clipboard or can be exported in a pdf file which can then be opened on any platform including OneScreen Write. The ease of use and simplicity of this software helps users/teachers make it part of their regular use to help drive better results.
Page 34: Onescreen Learninghub
LearningHub shortcut present on the browser widget of your OneScreen Homepage. 12.11 OneScreen Class OneScreen Class allows you to quickly start a poll with either single or multiple-choice answers in a classroom environment. Students can access OneScreen Class from their phone/PC by using the link: https://class.onescreensolutions.com...
Page 35: Settings
Settings allow you to control your OneScreen and all its features. You can access settings by pressing the Settings Icon on the Quick Access Toolbar present on your OneScreen Homepage or you can tap on the Wi-Fi or Hotspot icon on the top right corner of your screen to access the hotspot as well.
Page 36: Personal Settings
Screen Saver You can turn on the screen saver on your OneScreen which allows you to put up a screen saver on your device after a certain time of inactivity. You can choose between a clock, colors, and landscape pictures...
Page 37: Input & Output
You can configure the HDMI OUT format and display resolution using this option. You can select the drop-down menu to choose from the available options 13.4 Applications You can go to the applications section to see all the installed application son your OneScreen HL7. It allows...
Page 38: System
OneScreen you to disable or force stop applications and configure an application’s permission, notifications, storage, etc. 13.5 System Systems settings allow you to change features like date and time, language, keyboards and install updates on your device etc.
Page 39 Storage You can access your storage stats from here System updates allow you to update the firmware of your OneScreen HL7. You can choose between OTA System Update (Over the air) updates which allows you to download the updates via internet or Local updates allowing...
Page 40: Admin Panel
Wake On LAN Turns your device on from standby whenever a LAN Cable is plugged i Allows you to control both your connected devices via HDMI having HDMI CEC Capability and OneScreen HDMI CEC through a single remote of your OneScreen USB Clone Allows you to clone the settings of one panel and export them onto a USB.
Page 41: About
Kiosk Kiosk mode allows you to use your OneScreen as a Kiosk. You can set up any app or webpage as a default startup item and once you toggle the Kiosk Mode on, the user can only navigate through the webpage or application that is selected as a Startup item.
Page 42: Wireless Connectivity
OneScreen Share app as explained in section 12.3. 15. Remote To control your OneScreen HL7 with a remote, point it towards the front IR transceiver on the OneScreen device. The power button will blink red once the device receives any command via remote controller. You will...
Page 43: Rs-232 Guide
OneScreen 16. RS-232 Guide 16.1 Setting up RS-232 Control Use a Male USB to Female RS-232 cable to connect between control processor (computer) to the OneScreen device.
Page 44: Rs-232 Commands
OneScreen Set your program RS-232 port to the settings below. Control is one-way serial. However, you may receive feedback when you send the power ON/OFF commands. Port number COM1 (set according to the PC or Central control equipment) Bid rate...
Page 45 OneScreen Function Required Hex Command Required Hex Command Source 101: Android 3A 30 31 53 3A 31 30 31 0d 103: Slot in PC 3A 30 31 53 3A 31 30 33 0d 104: Type-C 3A 30 31 53 3A 31 30 34 0D...
Page 46: Onescreen Training
3A 30 31 53 45 30 30 31 0d 17. OneScreen Training OneScreen offers free-of-cost virtual live trainings to all its users to ensure they can get the most out of their OneScreen Products. The training can include any of the below topics: •...
Page 47: Additional Documents
OneScreen • OneScreen Hype (Video Conferencing Software – Standard Software) • Oktopus/Zuni learning tree (Online Learning Management Software – Optional Software) You can schedule a training by scanning the QR code below:...
Page 48 You may access additional documents and guides on the product by visiting the resources tab on our website. You may access the Resources Tab by scanning the below given QR Code. 12. Contacts us (+1) (855) 898 - 8111 https://www.onescreensolutions.com/support Specifications are subject to change at any time without notice © OneScreen 2022. All rights reserved.
