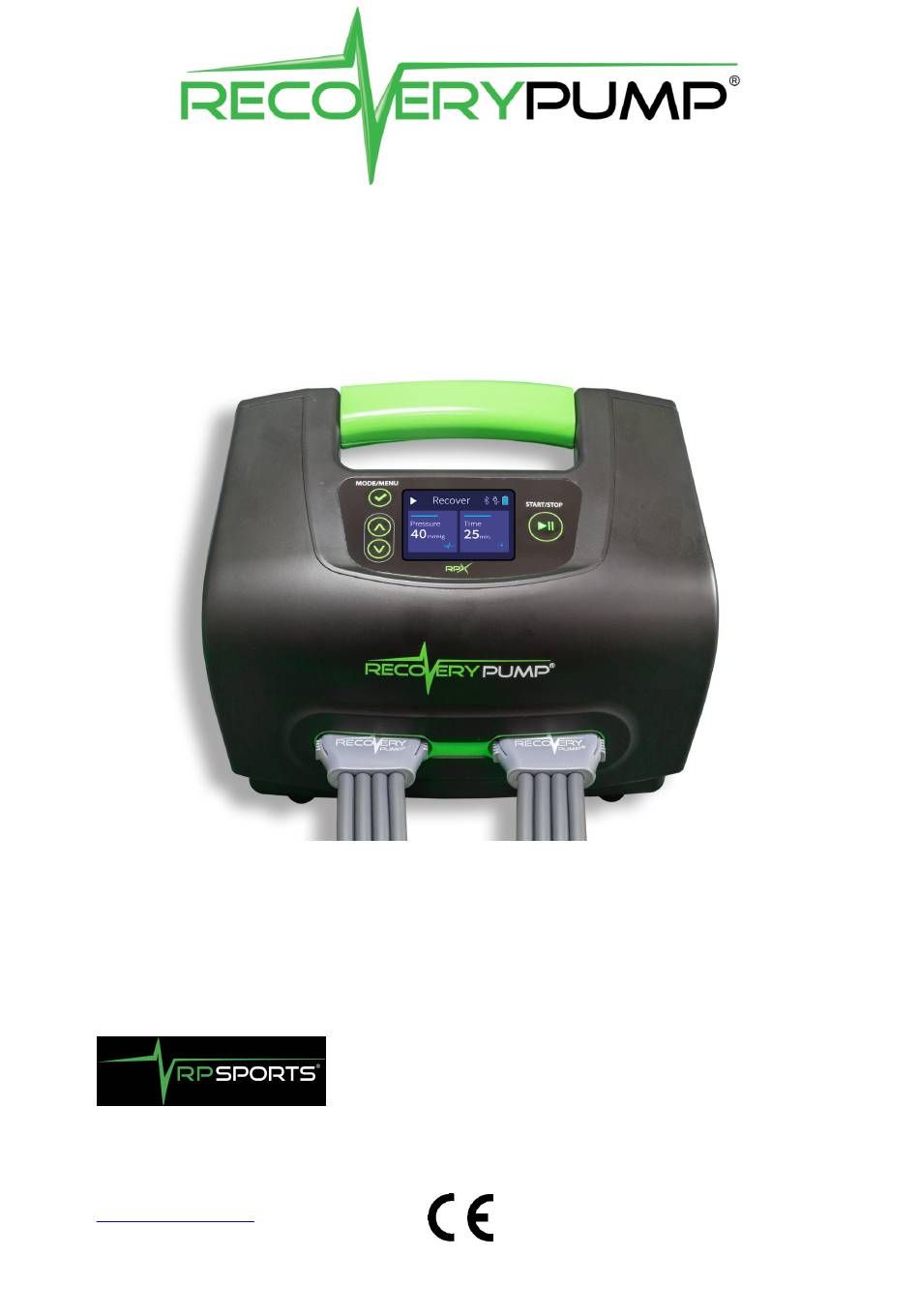

RPX
2020 Model 737R
®
Massage System
User Manual
9 Lacrue St. Ste 108
Glen Mills, PA 19342
855.732.7867
www.rpsports.com
L98005H4R-C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Recovery Pump and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RP Sports Recovery Pump

  • Page 1 2020 Model 737R ® Massage System User Manual 9 Lacrue St. Ste 108 Glen Mills, PA 19342 855.732.7867 www.rpsports.com L98005H4R-C...

  • Page 3: Table Of Contents

    RPX® 2020 Model 737R RP Sports® User Manual Table of Contents 1. Important Safety Information ............2. RPX® 2020 Specifications and Dimensions ........3. Labels ....................4. Indications for Use ................5. About RPX® 2020 ................6. Components of the RPX® 2020 System ........

  • Page 4: Important Safety Information

    RPX® 2020 Model 737R RP Sports® User Manual 1. Important Safety Information Read all instructions before using the RPX 2020 system for the first time. ® Warning: Contraindications for Use • This system is intended for use by people in good health. This system...
  • Page 5 Caution: • Do not operate the RPX 2020 system during transit. ® • Do not store or transport the RPX 2020 system beyond the specified ® temperature, humidity, and atmospheric pressure ranges (see Chapter 9 - Maintenance and Storage. • Do not use the RPX 2020 system beyond the specified temperature ®...

  • Page 6: Rpx® 2020 Specifications And Dimensions

    RPX® 2020 Model 737R RP Sports® User Manual 2. RPX 2020 Specifications and Dimensions ® L98005H4R-C...
  • Page 7 Model: 737R, appliance coupler, transportable, rated: 100-240 VAC, 50-60 Hz, internal backup battery: 11.1V, 5000 mAh Type of protection against electric shock Class II Degree of protection against electric Type BF shock Degree of protection against ingress of IP21 water Degree of safety of application in the Equipment not suitable for use in the presence of a flammable anesthetic...

  • Page 8: Labels

    RPX® 2020 Model 737R RP Sports® User Manual 3. Labels The following labels and symbols appear on the console, garments and/or packaging. Symbol Description Location On console IP21 Degree of protection against ingress of water base On console Read instructions before use...
  • Page 9 Symbol Description Location In accordance with Directive 2014/35/EU electrical equipment designed for use within On console certain voltage limits, and Directive 2014/30/ EU electromagnetic compatibility On console Serial number of the console base FCC CFR 47 Telecommunications, Part 15 On console statement base Contraindications label...
  • Page 10 RPX® 2020 Model 737R RP Sports® User Manual Symbol Description Location On garment Do not dry-clean On garment Do not tumble dry On garment Do not bleach On garment Do not iron L98005H4R-C...

  • Page 11: Indications For Use

    4. Indications for Use The RPX 2020 powered inflatable tube massager is indicated for the ® temporary relief of minor muscle aches and pains, and for temporary increase in circulation to the treated areas in people who are in good health. The RPX 2020 simulates kneading and stroking of tissues by using an ®...
  • Page 12 RPX® 2020 Model 737R RP Sports® User Manual Programs 1 and 2 - The Recover and Warm-up Programs The Recover and Warm-up programs use the Sequential cycle mode that applies a directional massage, starting at the base of the treated area, and progresses upwards towards the torso and then releases (see Figure 1).
  • Page 13 Program 3 - The Isolation Program The Isolation program uses the ISO cycle mode that applies a directional massage to a smaller, user-selected area. The first chamber inflates, and after a few seconds, the second chamber starts to inflate until both chambers reach the set pressure.
  • Page 14 RPX® 2020 Model 737R RP Sports® User Manual The periods of Time On alternate with intervals of Time Off for a Total treatment time of up to 8 hours. The user selects the Time On (in minutes), the Time Off (in minutes), and the total Interval program run time (in hours).
  • Page 15 The Flow Cycle The Flow Cycle is described in the following table: Chamber 1 Chamber 2 Chamber 3 Chamber 4 Sequence – instance of inflation and release Progress – advancement of sequences Four sequences exist. Each sequence is determined by the last chamber inflated.
  • Page 16 RPX® 2020 Model 737R RP Sports® User Manual Factory Default Program Settings The RPX 2020 console is supplied with the following default program ® settings. Press Pre- Relea Progra Cycle User treatm Mode [mmH Modification [sec] Sequen Recov – –...
  • Page 17 To return each program to the default settings: a. Press repeatedly until the required program screen is displayed: b. Press until the parameters screen is displayed. c. Scroll down using until reaching DEFAULT. d. Press The buzzer beeps three times, and the selected-program parameters return to their default settings.

  • Page 18: Components Of The Rpx® 2020 System

    RPX® 2020 Model 737R RP Sports® User Manual 6. Components of the RPX 2020 System ® The RPX 2020 737R Console ® (see Figure 4) The console takes air from the room environment and sends it to the individual air chambers in the garment in a sequence that starts from the base of the garment and continues to the top, according to the selected mode.
  • Page 19 Prong Plug (see Figure 5) If you use only one garment, insert this plug into the unused air outlet on the front of the RPX 2020 console, to seal it off and prevent air from escaping (see ® Figure 22). DC Power Adapter (see Figure 6) The DC Power Adapter receives 100–240 VAC, 50–60 Hz AC power and...
  • Page 20 RPX® 2020 Model 737R RP Sports® User Manual Compression Garments (see Figure 8, Figure 9, Figure 10, Figure 11, Figure 12, and Figure 13). A variety of garments are available. RecoveryBoots™ and Mini Boots are available in several sizes. RecoveryCore™, RP Half Jacket, and RecoveryPants are adjustable.

  • Page 21: How To Operate The Rpx® 2020 System

    7. How to Operate the RPX 2020 System ® Following is a description of the console operating panel and the various settings and displays (see Figure 14 and The Console Controls). Read this section before operating the console for the first time. Mode/Menu button Start/Stop...
  • Page 22 RPX® 2020 Model 737R RP Sports® User Manual The Console Controls Control Function Mode/Menu button: Used to access selection of a program, treatment pressure, treatment time, cycle mode, release time, and hold time. Up and Down buttons: Used to select a program, treatment pressure, treatment time, cycle mode, release time, and hold time.
  • Page 23 The Console Display Screen Home Screen Displayed Screen Function Displays pressure setting at the most distal pressure zone. • Pressure may be increased or decreased from this home screen (see instructions below). • Displays treatment time setting, which decreases during treatment.
  • Page 24 RPX® 2020 Model 737R RP Sports® User Manual Program and Cycle Mode Display Screens The following programs and cycle modes are displayed on the screen. Displayed Program/Cycle Mode Function Program 1 - Recover selected Program 2 - Warm-Up selected Program 3 - Isolation selected...
  • Page 25 Displayed Program/Cycle Mode Function • Wave cycle mode selected • ISO cycle mode selected • Flow cycle Mode selected • Pretreatment selected L98005H4R-C...
  • Page 26 RPX® 2020 Model 737R RP Sports® User Manual Treatment Parameters Screens The following treatment parameters (except Time) are displayed for all programs. Displayed Screen Function Displayed screen during Pressure setting Displayed screen during Time setting (not displayed in Program 4 - Interval)
  • Page 27 Displayed Screen Function Displayed screen during reverting to Default setting L98005H4R-C...
  • Page 28 RPX® 2020 Model 737R RP Sports® User Manual Isolation Program Zone Selection Screens The following zone selection screens are displayed for Program 3 - Isolation Displayed Screen Function Displayed screen during Proximal setting Displayed screen during Distal setting Displayed screen during Mid. setting...
  • Page 29 Reading Console Usage Data To display the accumulated hours the console has operated, press and hold for a few seconds until the Usage screen appears. The console displays the number of hours the console has operated. The buzzer beeps once and returns to the Home screen after a few seconds. Disabling Console Settings To disable console settings, press and hold for 3 seconds.
  • Page 30 RPX® 2020 Model 737R RP Sports® User Manual Step 1: Set up the RPX 2020 Console ® L98005H4R-C...
  • Page 31 Caution: When the system has been stored in extreme temperature conditions of 20°C (-4°F) or 70°C (158°F) between uses, wait for two (2) hours before using the system. a. Place the console on a flat, stable surface from where it will not slip or fall. Make sure the front of the console is at least six inches from the edge of the surface.
  • Page 32 RPX® 2020 Model 737R RP Sports® User Manual Step 2: Prepare for Massage • Always wear light clothing underneath the garment, for hygienic reasons, to avoid irritation and to absorb perspiration. • Do not wear the garment directly over bare skin.
  • Page 33 RecoveryArm™ a. Insert the arm into the garment. b. Pull the garment over the shoulder to cover it. c. Wrap the fastening strap around the body, under the untreated arm. Fasten the strap and adjust the buckle for a comfortable fit. RecoveryArm™...
  • Page 34 RPX® 2020 Model 737R RP Sports® User Manual RP Half Jacket Use RP Half Jacket lying down or in a seated position. RP Half Jacket treats the arm, shoulder, back, chest, and abdomen. The arm can be treated held straight out to the side (90 degrees), down in a natural position, or held supported using the optional strap.
  • Page 35 Using the Optional Arm Support Strap j. Before turning on the console power switch, fasten the strap to the torso. Extend the strap to its full length by pulling up on the buckle (see Figure 17). Fasten the strap to the arm sleeve. Figure 17 - Extending the Optional Arm Strap k.
  • Page 36 RPX® 2020 Model 737R RP Sports® User Manual RecoveryPants Use RecoveryPants in a supine position (lying face up on a bed or couch). Always wear light, comfortable clothing under RecoveryPants (sweatpants or leggings and socks, free of buttons or zippers that may rub against the skin) to absorb perspiration, prevent irritation, and keep RecoveryPants clean.
  • Page 37 Second Tether Point First Tether Point Lengthwise Tension Buckles Straps Figure 18 - RecoveryPants Figure 19 - Horizontal Heel Zippers Figure 20 - Boot L98005H4R-C...
  • Page 38 The garment should not fit too tightly; you should be able to insert three fingers into the garment when it is zipped closed before inflation. If the garment is too tight, you need a larger size. Contact RP Sports ®...
  • Page 39 Step 4: Connect the Garment Hose Bundle to the Console L98005H4R-C...
  • Page 40 RPX® 2020 Model 737R RP Sports® User Manual Note: Hold the console handle with one hand while connecting or disconnecting the hose bundle with your other hand. a. Securely insert the garment hose bundle connectors, with the logo facing up, into the air sockets on the console (see Figure 21).
  • Page 41 The following screen is displayed, showing the console name and model, and the Firmware version. After two seconds, the Home screen is displayed, showing the last selected program and its pressure and time settings. b. To select the required program, press If you selected the Recover or Warm-Up program in Step 5, proceed to Step 9: Set Treatment Pressure.
  • Page 42 RPX® 2020 Model 737R RP Sports® User Manual Step 6: Set Cycle Mode (Custom Program only) a. Press repeatedly until the following screen is displayed: b. Press and hold until the following screen is displayed: c. Press . The highlighted cycle blinks.
  • Page 43 Step 7: Set Zone (Custom Program - ISO Cycle and Isolation Program only) a. Press repeatedly until the following screen is displayed: b. Press and hold until the following screen is displayed: c. Press . The highlighted zone blinks. d. To select Proximal, Mid, or Distal, press e.
  • Page 44 RPX® 2020 Model 737R RP Sports® User Manual Step 8: Set Time On, Time Off, and Total (Interval Program only) a. Press repeatedly until the following screen is displayed: b. Press and hold until the following screen is displayed: c. Press .
  • Page 45 Note: Time Off is the duration of pause between recurrent treatments (Time On). Time Off can be set between 10–90 minutes in 5-minute increments. j. To confirm selection, press k. Press . The Total (hours) value is highlighted: l. Press .
  • Page 46 RPX® 2020 Model 737R RP Sports® User Manual Step 9: Set Treatment Pressure a. Press repeatedly until the required program screen is displayed: b. Press and hold until the following screen is displayed: c. Press . The highlighted Pressure value blinks.
  • Page 47 Step 10: Set Treatment Time a. Press The following screen is displayed. b. Press . The highlighted Time value blinks. c. To select Time, press d. To confirm selection, press Note: The minimum time setting is 10 minutes. The maximum time setting is 90 minutes. When setting time to continuous treatment, Stay On is displayed.
  • Page 48 RPX® 2020 Model 737R RP Sports® User Manual Step 11: Set Hold Time Considerations for Choosing Hold Time The Hold time changes the time in which air pressure is maintained in the garment(s) at the end of the massage cycle, before deflation.
  • Page 49 Step 12: Set Release Time a. Press The following screen is displayed. b. Press . The highlighted Release value blinks. c. To select Release, press d. To confirm selection, press Note: Release time is the duration between treatment cycles and can be set between 10–70 seconds.
  • Page 50 RPX® 2020 Model 737R RP Sports® User Manual Step 13: Set Gradient a. Press The following screen is displayed. b. Press . The following screen is displayed: c. Press . The highlighted zone blinks. d. To select the zone pressure, press e.
  • Page 51 m.To confirm selection, press n. To proceed to the next zone, press . the following screen is displayed: o. Press . The highlighted zone blinks. p. To select the zone pressure, press q. To confirm selection, press Note: The console disables setting higher proximal pressure than distal pressure.
  • Page 52 RPX® 2020 Model 737R RP Sports® User Manual Step 14: Start the Massage Now you are ready to operate the console and begin your treatment. Note: Hold the console handle with one hand while turning On/Off the Power Switch with your other hand.
  • Page 53 Step 15: End the Massage a. When the massage time is complete, the massage cycle stops. If you need to stop the massage in the middle, press b. At the end of the massage, turn Off the Power Switch. c. When the massage stops, wait up to 30 seconds to allow the garment to deflate before you remove it.

  • Page 54: Using The Recoverypump® Mobile Application

    RPX® 2020 Model 737R RP Sports® User Manual 8. Using the RecoveryPump Mobile Application ® The RecoveryPump Mobile Application allows: ® Modifying treatment parameters: • ♦ Cycle mode ♦ Treatment time ♦ Treatment pressure ♦ Hold time ♦ Release time ♦...
  • Page 55 Step 1: Download and Install the RecoveryPump ® Mobile Application The RecoveryPump Mobile Application can be used after installing from either ® Google Play or App Store. https://play.google.com/store/apps/ • https://www.apple.com/itunes/ • Internet access is required for installing the RecoveryPump Mobile ®...
  • Page 56 RPX® 2020 Model 737R RP Sports® User Manual d. To search your console, tap The Search screen is displayed. e. To select your console, tap the console on the Search screen. The Connection Approval message is displayed on the Search screen and...
  • Page 57 Main Screen Following is a description of the Main Screen, which includes all operations of the Mobile App. Read this section before operating the Mobile App for the first time. The Main Screen includes the following operations: • Menu • Setting Pressure •...
  • Page 58 RPX® 2020 Model 737R RP Sports® User Manual Main Screen Buttons L98005H4R-C...
  • Page 59 Control Function Menu button Time button: Used for selecting treatment time Pressure button: Used for selecting treatment pressure Program/Mode button(s): opens a scrolling list for selecting Program • Recover • Warm-up • Isolation • Interval • Custom • Saved program Advanced buttons used for selecting: Advanced settings with gradient pressures L98005H4R-C...
  • Page 60 RPX® 2020 Model 737R RP Sports® User Manual Control Function Advanced settings without gradient pressures Play button used for: • Updating setting in console • Starting treatment Load button: Used for loading a treatment program Share button: Used for sharing a treatment program...
  • Page 61 Menu To open the menu, tap or swipe right the Main Screen. The menu opens: Online Mode Menu Offline Mode Menu The View Usage, and are available only in Online mode (i.e., only when the Mobile App is connected to an RPX 2020 console).
  • Page 62 RPX® 2020 Model 737R RP Sports® User Manual a. Tap View Usage. The Usage History screen opens: You can share the Usage History log as follows: b. Tap A standard Share-via-Application screen opens (different depending on devices and operating systems).
  • Page 63 You can view the usage statistics. • Offline RPX - Opens Main Screen for unconnected RPX 2020 console ® • About - Opens the About RecoveryPump page on the RP Sports website ® • Visit our Site - Opens the RP Sports website ®...
  • Page 64 RPX® 2020 Model 737R RP Sports® User Manual Naming your Console a. Tap and hold the device icon on the Main Screen for about 2 seconds, until the Rename Device dialog box with virtual keyboard opens. b. Tap the new name using the virtual keyboard.
  • Page 65 Setting Treatment Parameters • Selecting treatment pressure a. Tap the Pressure button. The Select Pressure screen opens: b. To select the required pressure, swipe up/down the pressure values. c. To approve the selected pressure, tap OK or tap CANCEL to cancel selection and return to the Main Screen.
  • Page 66 RPX® 2020 Model 737R RP Sports® User Manual • Selecting treatment time a. Tap the Time button. The Select Treatment Time screen opens: b. To select the required treatment time, swipe up/down the time values. To select continuous massage until stopped by user, swipe right the Stay on button.
  • Page 67 • Setting Program/Mode a. Tap the Program/Mode button. The Select Program/Mode screen opens: b. To select the required program, swipe up/down the program names. c. To approve the selected program, tap OK or tap CANCEL to cancel selection and return to the Main Screen. L98005H4R-C...
  • Page 68 RPX® 2020 Model 737R RP Sports® User Manual • Program Settings Recover and Warm-up Programs a. Tap the Program Settings button. The Hold time and Release time screen opens: b. To select the required Hold/Release time, swipe up/down the Hold/ Release values.
  • Page 69 Isolation Program a. Tap the Program Settings button. The Hold time, Release time, and Zones screen opens: b. To select the required Hold/Release time, swipe up/down the Hold/ Release values. c. To select the massaged zone, tap the zone radio button. d.
  • Page 70 RPX® 2020 Model 737R RP Sports® User Manual Interval Program a. Tap the Program Settings button. The Hold time, Release time, Total Time, and Time off screen opens: b. To select the required Hold/Release/Total time and Time off, swipe up/ down the Hold/Release/Total time and Time off values.
  • Page 71 Custom Program a. Tap the Program Settings button. The Hold time, Release time, Flow frequency, Pretreatment, and Cycle screen opens: b. To select the required Hold time or Release time, swipe up/down the Hold time or Release time values. c. To select the required Flow frequency, swipe up/down the Flow frequency value.
  • Page 72 RPX® 2020 Model 737R RP Sports® User Manual Advanced Tap the Advanced button. The Advanced Treatment Settings screen opens: Note: Swipe the garment illustration to select RecoveryArm, RecoveryPants, Leg garment (RecoveryBoots or Mini Boots), or Half Jacket. L98005H4R-C...
  • Page 73 Setting Gradient Pressures L98005H4R-C...
  • Page 74 RPX® 2020 Model 737R RP Sports® User Manual a. To enable gradient pressures, swipe right the Gradient Pressures button or swipe left to disable gradient pressures. b. To increase/decrease pressure of each zone, swipe right/left the pressure value. c. To deactivate a zone, swipe left the zone button.
  • Page 75 Gradient, Gradient, No gradient, Gradient, interface No gradient, interface interface gradient, deac.vated deac.vated locked, locked, locked interface zone(s) zone(s) deac.vated zone(s) deac.vated zones locked L98005H4R-C...
  • Page 76 RPX® 2020 Model 737R RP Sports® User Manual Saving a Treatment Program Created from Current Settings a. Tap The New Treatment Name dialog box opens on the Main Screen. b. Tap the Enter Program name field to assign a treatment name.
  • Page 77 Loading/Deleting a Treatment Program a. To load a treatment program, tap The Saved Treatment Programs screen opens. b. To select a treatment program, tap the program on the list (Isolation 1 in the example above). The selected treatment program is loaded. c.
  • Page 78 RPX® 2020 Model 737R RP Sports® User Manual Sharing a Treatment Program Settings that can be shared are those currently active in the Mobile App: • A current program whose settings are adjusted using the application • Settings read from the connected console •...
  • Page 79 Starting Treatment To start treatment, tap on the Main Screen. The Treatment Screen opens. • To adjust Time and/or Pressure, tap displays the remaining treatment time. • • To stop treatment, tap L98005H4R-C...

  • Page 80: Maintenance And Storage

    RPX® 2020 Model 737R RP Sports® User Manual 9. Maintenance and Storage Cleaning the Console Caution: Disconnect the console from electrical outlet before cleaning. Let it dry completely before reconnecting it to the electrical outlet. • Wipe clean using a slightly damp cloth.
  • Page 81 Storage a. Keep the console, hoses and garments away from direct sunlight. b. Store in a dry, shaded place (see caution below). c. Do not twist or fold the hose bundle. d. Store the DC power adapter and power cord lightly wrapped and secured. e.
  • Page 82 RPX® 2020 Model 737R RP Sports® User Manual Replacing the Battery L98005H4R-C...
  • Page 83 Note: Use only batteries supplied by Mego Afek AC Ltd. To replace the battery: a. Open the cover of the battery compartment using a Philips screwdriver. b. Carefully remove the used battery from its compartment. c. Disconnect the battery cable. d.

  • Page 84: Troubleshooting

    RPX® 2020 Model 737R RP Sports® User Manual 10. Troubleshooting L98005H4R-C...
  • Page 85 Note: Before continuing, inspect all accessories for any defects. Console Error Messages Error Message Meaning Corrective Action See Table 3 See Table 3 Error 5 See Table 3 See Table 3 Over Pressure Error 2/3/4 See Table 3 See Table 3 Internal Error Mobile App Error Messages Error Message...
  • Page 86 RPX® 2020 Model 737R RP Sports® User Manual Table 3 - Troubleshooting Guide L98005H4R-C...
  • Page 87 If all air connections are OK and problem persists, contact RP Sports ® The console stops Internal malfunction Contact RP Sports ® working, Error 2/3/4 - Internal Error message displayed, Warning icon turns On, and the buzzer beeps.

  • Page 88: Troubleshooting Wireless Connection Problems

    RPX® 2020 Model 737R RP Sports® User Manual 11. Troubleshooting Wireless Connection Problems The mobile application uses Bluetooth wireless technology for • communication with the console. In most cases of temporary communication loss, communication resumes automatically. In unlikely events of communication loss or application failure, user should •...

  • Page 89: Bluetooth Wireless Technology Information

    13. Bluetooth Wireless Technology Information Bluetooth Compliance Version 4.2 low energy Operating Frequency 2.402–2.480 GHz Output Power 0 dBm Operating Range 3-meter radius (line of sight) Network Topology Star - bus Operation Slave Antenna Type Integrated chip type antenna Modulation Type Adaptive Frequency Hopping Data Rate Over the air: 1 Mbit/second...

  • Page 90: Emc Manufacturer Declarations

    RPX® 2020 Model 737R RP Sports® User Manual 14. EMC Manufacturer Declarations Electromagnetic Compatibility (EMC) Statement for Home Healthcare Environment The RPX 2020 system has been evaluated to international standard ® IEC 60601-1-2 "General requirements for basic safety and essential performance - Collateral standard: Electromagnetic compatibility - Requirements and tests".
  • Page 91 The device uses RF energy only for its internal funcJon. Therefore, RF emissions Group 1 its RF emissions are very low and are not likely to cause any CISPR 11 interference in nearby electronic equipment. RF emission Class B CISPR 11 The device is suitable for use in all establishments, including Harmonic emissions Class A...
  • Page 92 RPX® 2020 Model 737R RP Sports® User Manual Portable and mobile RF communicaJon equipment should be used no closer to any part of the device, including cables, than the recommended separaJon distance calculated from the equaJon applicable to the frequency of the transmicer.
  • Page 93 For transmicers rated at a maximum output power not listed above, the recommended separaJon distance in meters (m) can be esJmated using the equaJon applicable to the frequency of the transmicer, where P is the maximum output power raJng of the transmicer in Wac (W) according to the transmicer manufacturer. Note 1: At 80 MHz and 800 MHz, the separaJon distance for the higher frequency range applies.
