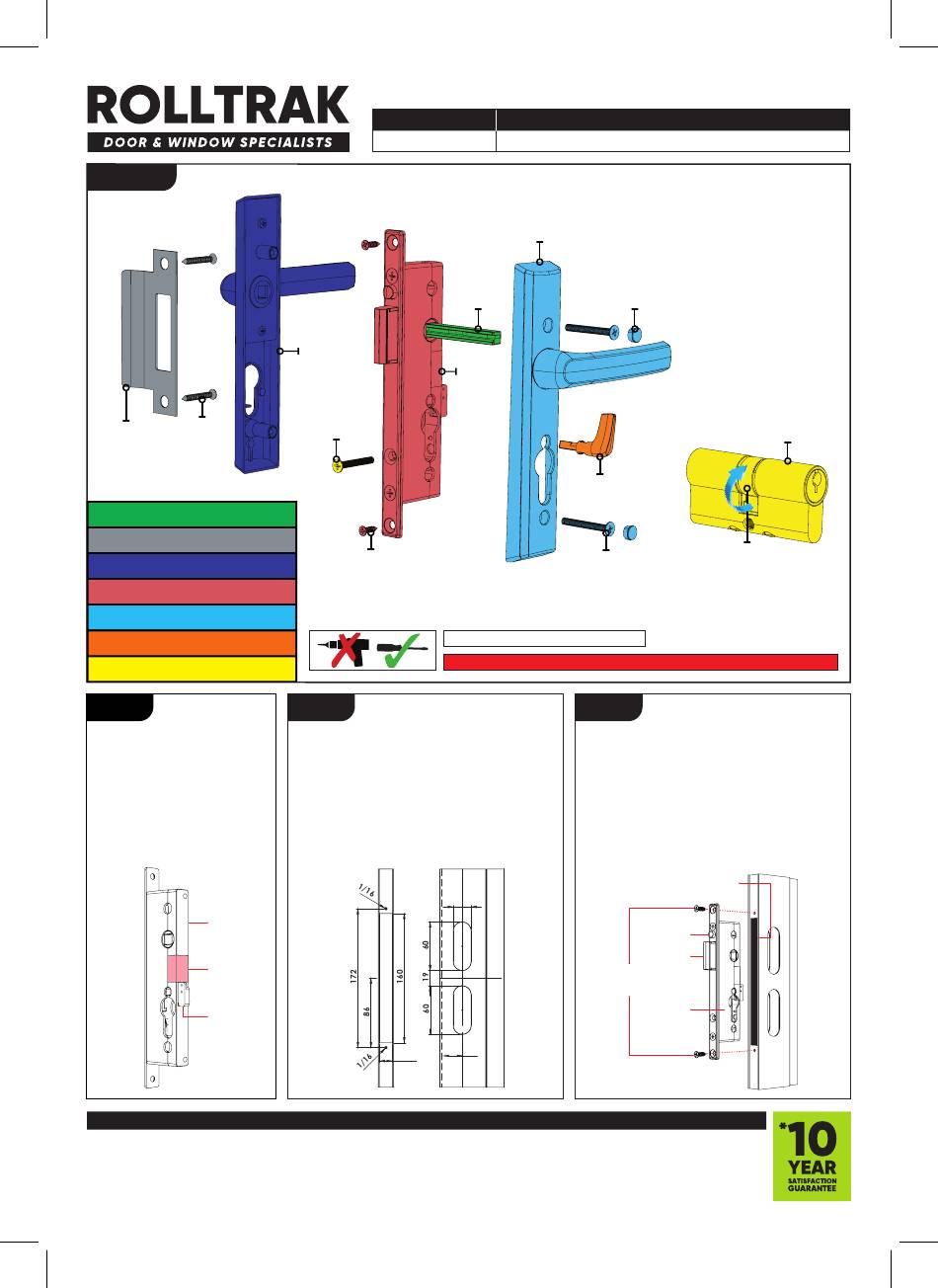

ROLLTRAK R8932BLK Quick Start Manual

Contents
2 x 25mm
1 x Striker
Striker Plate
Plate
Screws
Connecting Rod
Striker Plate & Fixings
Outside Operating Lever & Components
Lock Body & Fixings
Inside Operating Lever & Components
Snib
Cylinder & Fixing
Step 1
Preparing the door & lock:
Do not remove the sticker on the rear
of the lock body, it is there to help
keep the remote locking tab down.
If the sticker has been damaged or
removed, ensure the remote locking
tab at the rear of the lock is pushed
completely down before
assembling the lock body into the
door cut out.
Lock Body
Sticker
Remote
Locking
Tab
Warranty:
*10 Year Satisfaction Guarantee. This product is designed to perform satisfactorily for 10 years from date of purchase when used in its intended application. Should it not
perform satisfactorily during the 10 year period, simply return to the place of purchase with proof of purchase for a replacement or refund. Our goods come with guarantees that
cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This
warranty excludes damage resulting from product misuse or product neglect, any modifications, additions or alterations to the product. Additions or modifications can
compromise the structure and safety of the product. The warranty covers domestic use only and does not apply to commercial applications. This warranty is given by Rolltrak,
ABN 61 633 046 106, 45-49 Whitfield Boulevard, Cranbourne West, VIC 3977, 1800 349 776, Email: support@rolltrak.com.au. Products sold in New Zealand are imported by
Bunnings New Zealand. 'Rolltrak' is a trademark. © Rolltrak Spares Pty Ltd. Suitable for model numbers: R8932BLK & R8932BLK-5P.
HINGED SCREEN DOOR LOCK
Model Number:
R8932BLK & R8932BLK-5P
1 x Spindle
1 x Outside
Handle
1 x Lock
Body
1 x 37mm Cylinder
Retaining Screw
2 x 13mm
Fixing Screws
*DO NOT USE A POWERED SCREWDRIVER
DO NOT USE KEYS TO OPERATE CYLINDER UNTIL FULL INSTALLATION IS COMPLETED
Step 2
For new installations:
Once the desired lock height has been decided, drill
and cut out both sides of the door as per the
dimensioned drawing below.
Note: Modifications to existing cutout may be required
(see Step 3). Lock heights for doors leading onto pool
areas, are regulated. Check with your local authority
for confirmation.
For Replacement Re-installation:
The front door edge cut-out may require modification.
22
25
15.50
Tools required:
Tape measure, Pencil, 1/16" drill bit, drill, flat head screwdriver, Phillips head screwdriver.
1 x Inside
Handle
2 x Cover
Caps
1 x Snib
2 x 28mm
Handle Screws
Step 3
Installation of the lock body:
With the lock body tongue facing to the top, insert the
lock body into the cut out in the front edge of the door.
Secure the lock body using the 2 x 13mm fixing screws
provided.
Important: Ensure that the main lock tongue is fully
extended by depressing the firing pin and that the lock is
deadlocked by the cylinder before fitting the cylinder
screw. The lock must be mounted with the tongue facing
to the top. The product warranty cannot be guaranteed
if the lock is mounted upside down.
Cutout in the front
edge of the door
Firing Pin
Tongue
2 x 13mm
Countersunk
Fixing Screws
Lock Body
R8932BLK:
CYLINDER NOT INCLUDED
If cylinder is required use:
• R8150 (60mm C4 5 pin)
• R8158 (50mm C4 4 pin)
• R8190 (5 wafer cylinders)
R8932BLK-5P:
R8150 CYLINDER INCLUDED
Please Note:
• The cam should rotate
towards the front edge of
the door frame.
• When installing the
cylinder, the cam needs to
be in the upright position
as shown below.
1 x 5-Pin Double-Sided Euro
Cylinder with 3x C4 Keys
1 x Cam
