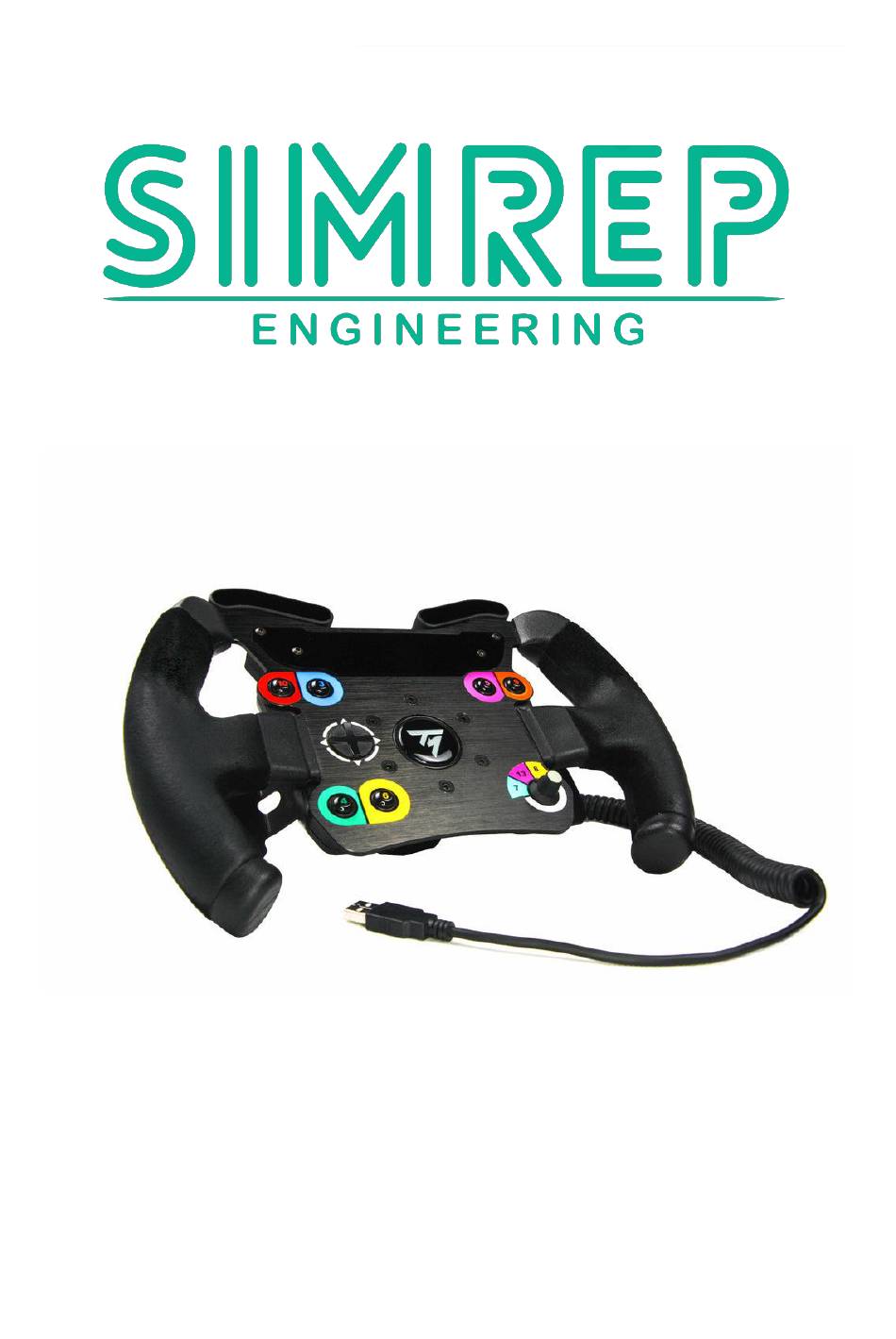

  • Page 1 TM OpenWheel Add-On Display V1.1 installation manual...

  • Page 2: Package Content

    Thank you for buying Thank you for buying from us! We hope you will enjoy the product, if you have any questions, please contact us at: service@simrep-engineering.com Package content 1x Add-on D1 V1.0 screen 1x Plexiglass front screen 4x M3x10mm screw 1x 2mm Hex socket tool Software This product is configurated with SimHub software.

  • Page 3: Hardware Installation

    Hardware installation Installing the display on your trustmaster TM OpenWheel steering wheel. Step 1 Remove the Thrustmaster cover with a 2mm hex socket wrench. (included). Remove the cover marked in RED. Step 2 Mount the D1 V1.0 against the back of the wheel and align the bolt holes with the Plexiglas front cover.

  • Page 4: Overview Of The Display

    Overview of the Display A quick overview of the display with a look at the matrix views and the LED numbering. View A – the idle screen – is here displayed as well as View C with gear 2 selected as an example. This is explained in the GT and OpenWheel function list.
  • Page 5 This is a default profile that can be easily loaded into SimHub as we will explain in the following steps. Matrix functions • View A - IDLE no game is running, SimRep Engineering (SRE) logo. • View B - Speed indicator, this is the default view in game. •...
  • Page 6 This is a default profile that can be easily loaded into SimHub as we will explain in the following steps. Matrix functions • View A - IDLE no game is running, SimRep Engineering (SRE) logo. • View B - Speed indicator, this is the default view in game. •...

  • Page 7: Software Installation

    Software installation Connection the TM OpenWheel Add-On to SimHub for the first time. As mentioned earlier, the display works with the SimHub software, so make sure you have that installed before proceeding. Step 1 Click on the “Arduino” page on the left side (Highlighted RED). P a g e 7 | 22...
  • Page 8 Step 2 Go to “My hardware” tab in the right corner and then click on “Single Arduino”. P a g e 8 | 22...
  • Page 9 Step 3 Wait for SimHub to finish scanning for the TM Open Wheel Add-on D1 V1.0 Display It should say connected. If not, please refer to the troubleshoot section below. P a g e 9 | 22...
  • Page 10 This step is already done in production, but if you have problems or acidentaly overwrite the software you can reset the settings like this. In the setup tool select “Arduino Pro Micro (ATmega32u4) Now we can add the LED (WS2812B) and the display Pin mapping of the arduino: If all is shown correct, check the box and hit “UPLOAD TO ARDUINO”...
  • Page 11 Step 4 Go back to the tab called “Screens”, on the top left. Then click on “New screen” P a g e 11 | 22...
  • Page 12 Step 5 A new page will show up. Click on the bottom on “ADD” P a g e 12 | 22...
  • Page 13 Step 6 Now set the name to SRE for the idle screen. 1. Write “SRE” to the “screen name” (top left) 2. Check the box called “Idle screen” (under screen name) 3. Write “SRE” to ”Display text” (middle right) 4. Click on “Save” (bottom right) P a g e 13 | 22...
  • Page 14 Step 7 Your new screen will show up at the bottom at the “screens” tab. Place the screen at the top of the page by left clicking and dragging it to the top. After dragging, your matrix screen should display “SRE”.
  • Page 15 Step 8 Click again on “New Screen” P a g e 15 | 22...
  • Page 16 Step 9 1. Change the “screen name” to “Speed and gear” 2. Check the box “in game screen” 3. Click “ADD” 4. Click “Computed text” 5. Click “Edit” P a g e 16 | 22...
  • Page 17 Step 10 1. Click “Computed value” 2. Copy and paste the following NCalc Formula in the text box if(changed(750, [DataCorePlugin.GameData.NewData.Gear]) or [DataCorePlugin.GameData.NewData.SpeedKmh] < 1, '[' + [DataCorePlugin.GameData.NewData.Gear] + ']', format([DataCorePlugin.GameData.NewData.SpeedKmh],'0')) 3. Click “OK” P a g e 17 | 22...
  • Page 18 Step 11 Click “Save” on the bottom right. P a g e 18 | 22...
  • Page 19 Step 12 Drag the screen from the bottom to the second position under the SRE screen. The Hard part is done The setup for the Matrix is now completed Only the RGB led profile to go! P a g e 19 | 22...
  • Page 20 Step 13 Importing the LED profile 1. Go to the tab “RGB LEDs” 2. Click on “import profile” 3. Add the files “Any Game - TM Open Wheel Add-On Display GT V1.0.ledsprofile” and “Any Game - TM Open Wheel Add-On Display Formula V1.0.ledsprofile” from your computer. 4.
  • Page 21 Step 14 ALL DONE! Go to the “Games” tab on the left side of SimHub, select you game, let the race begin! Thank you for your purchase and supporting our business! We are continuously improving on our products and services. If you experienced any difficulties during installation, please let us know by contacting us at service@simrep-engineering.com or sending a DM to our Instagram profile...

  • Page 22: Troubleshooting

    Troubleshooting 1. No connection on SimHub – please make sure the USB A cable is pluged in. If you are using an USB-adapter or extender, please connect the display directly to the USB-port on the computer. 2. My computer can’t recognize the TM OpenWheel display – This probably means you have not yet installed SimHub, or SimHub did not install the correct drivers for you.
