Summary of Contents for WOLFMAC H10X

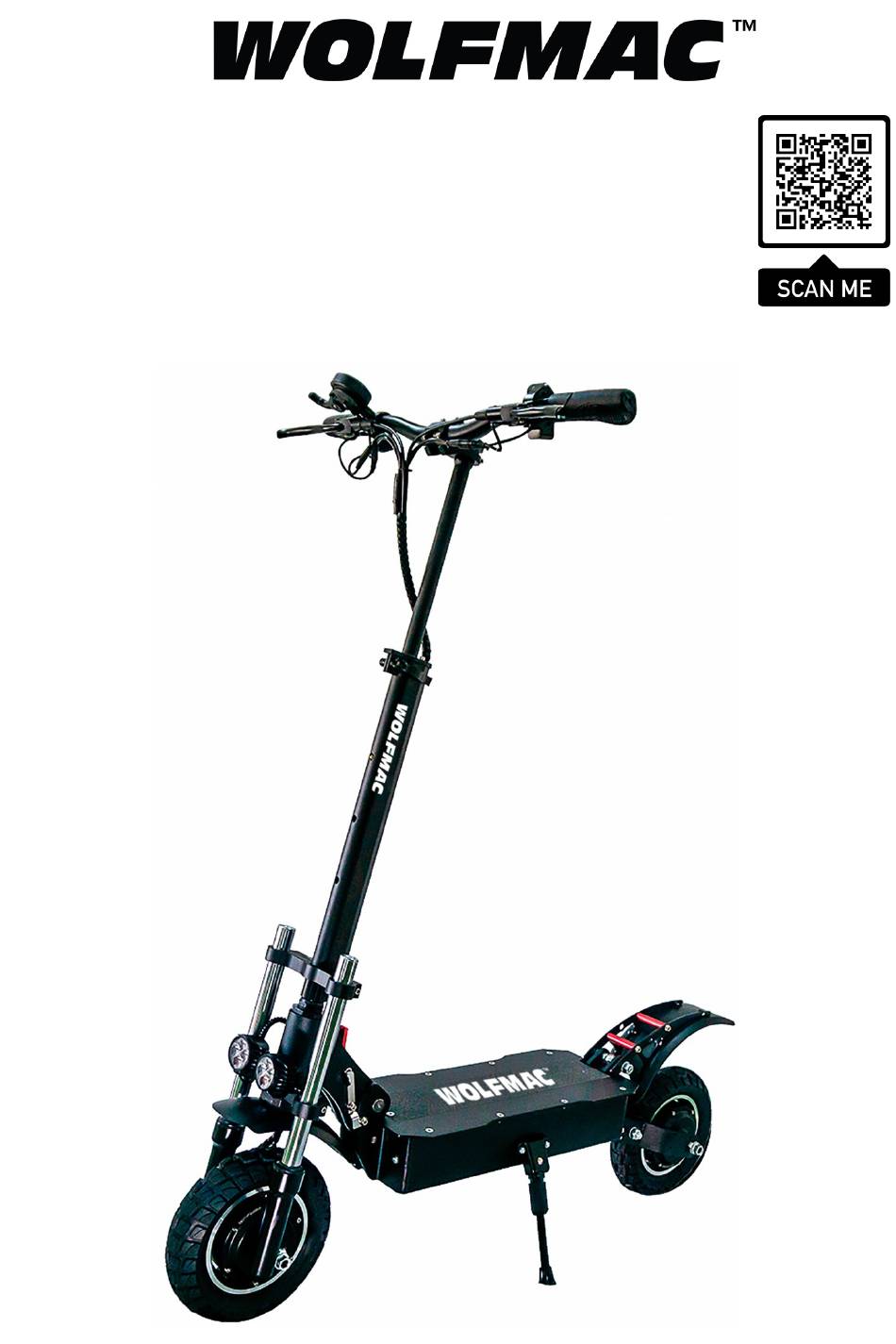

- Page 1 H10X E-SCOOTER USER MANUAL...
-
Page 2: Product Safety
PRODUCT SAFETY PLEASE READ THESE INSTRUCTIONS BEFORE OPERATING THE E-SCOOTER As with any vehicle, you must take care when using to prevent injury or damage. Please read the below safety instructions carefully before operating the e-scooter. This product is not suitable for use by children (18+ only) and may not be suitable for persons with a disability that would hinder their ability to operate it. - Page 3 PRODUCT SAFETY DO NOT pass irregular surfaces too fast Watch out for overhead obstacles DO NOT ride at 35%+ gradient to DO NOT accelerate while riding downhill prevent motor / controller damage DO NOT use the front brake while riding DO NOT go up / down steps or cross DO NOT stand on the standing deck after the scooter has stopped / is stationary...
- Page 4 PRODUCT SAFETY Avoid obstacles while riding DO NOT ride in the rain DO NOT ride with single hand or foot DO NOT ride on a motorway DO NOT ride in water deeper than 2cm. DO NOT ride with 2 people. This can This can damage the motor / controller damage the motor / controller PAGE 3...
-
Page 5: Component Diagram
COMPONENT DIAGRAM BEFORE RIDING, FAMILIARISE YOURSELF WITH THE COMPONENTS OF THE E-SCOOTER SHOWN BELOW. Safety Note: Ensure the ‘folding lock’ shown below is pulled up and secured before riding. Not doing so can damage the mechanism and cause injury. Page 2 PAGE 4... - Page 6 SETUP FOLLOW THE BELOW STEPS TO FIRST SETUP THE E-SCOOTER Step 1: Pull the folding latch to release the folding lock. Step 2: Lift the handle bar spine upwards until it clicks to secure. Step 3: Pull the red folding lock upwards until it is secure. ...
- Page 7 CONTROLS SEE BELOW DIAGRAM TO UNDERSTAND THE CONTROLS AND OPERATION POWER BUTTON: Long press the power button to turn on the e-scooter on. You must first insert and turn the key to activate. MODE: Quick press the mode button to change the mode (1,2,3) Long press the model button to toggle between display readings.
- Page 8 CHARGING & BATTERY GUIDANCE FOLLOW THE BELOW INSTRUCTIONS TO CHARGE AND MAINTAIN BATTERY Your e-scooter is equipped with a unique lithium battery with a custom built charging unit specific for this battery. Do not use any other charging unit. Do not charge the e-scooter in the outdoors (exposed to water).
-
Page 9: Advanced Settings Menu
ADVANCED SETTINGS MENU THE SETTINGS OF THE E-SCOOTER CAN BE ACCESSED AND CHANGED USING THE DISPLAY CONTROL. WE ADVISE AGAINST CHANGING THE SETTINGS. ACCESSING THE SETTINGS : Press and hold the POWER and MODE buttons together until the screen changes. You are now in the settings. ... - Page 10 DISPLAY ICONS & ERROR CODES THE DISPLAY CONTROL HAS VARIOUS ICONS AND ERROR CODES WHICH CAN SHOW WHILE USING. SEE ILLUSTRATIONS AND CODES BELOW. BATTERY CHARGE: CURRENT GEAR: USB DEVICE DETECTED: LIGHTS ON: START NON ZERO: ...
- Page 11 ATTESTATION CERTIFICATE PAGE 10...
-
Page 12: Eu Declaration Of Conformity (Doc)
EU DECLARATION OF CONFORMITY (DoC) I, Jamie McCoy, acting on behalf of WOLFMAC, as the authorised representative for the manufacturer 'Zhejiang Taimi Technology Co., Ltd.', declare with full responsibility that the model ‘H10X’ Electric E-Scooter, which concerns this declaration, complies with:... -
Page 13: Warranty & Terms
WARRANTY & TERMS WARRANTY Your e-scooter comes with 1 year manufacture warranty. This covers the e-scooter for what would be considered a manufacture fault that has not been caused as a result of external damage or improper use / maintenance / wear and tear. It is at our discretion whether to supply a replacement part to you or to assist with a repair.
