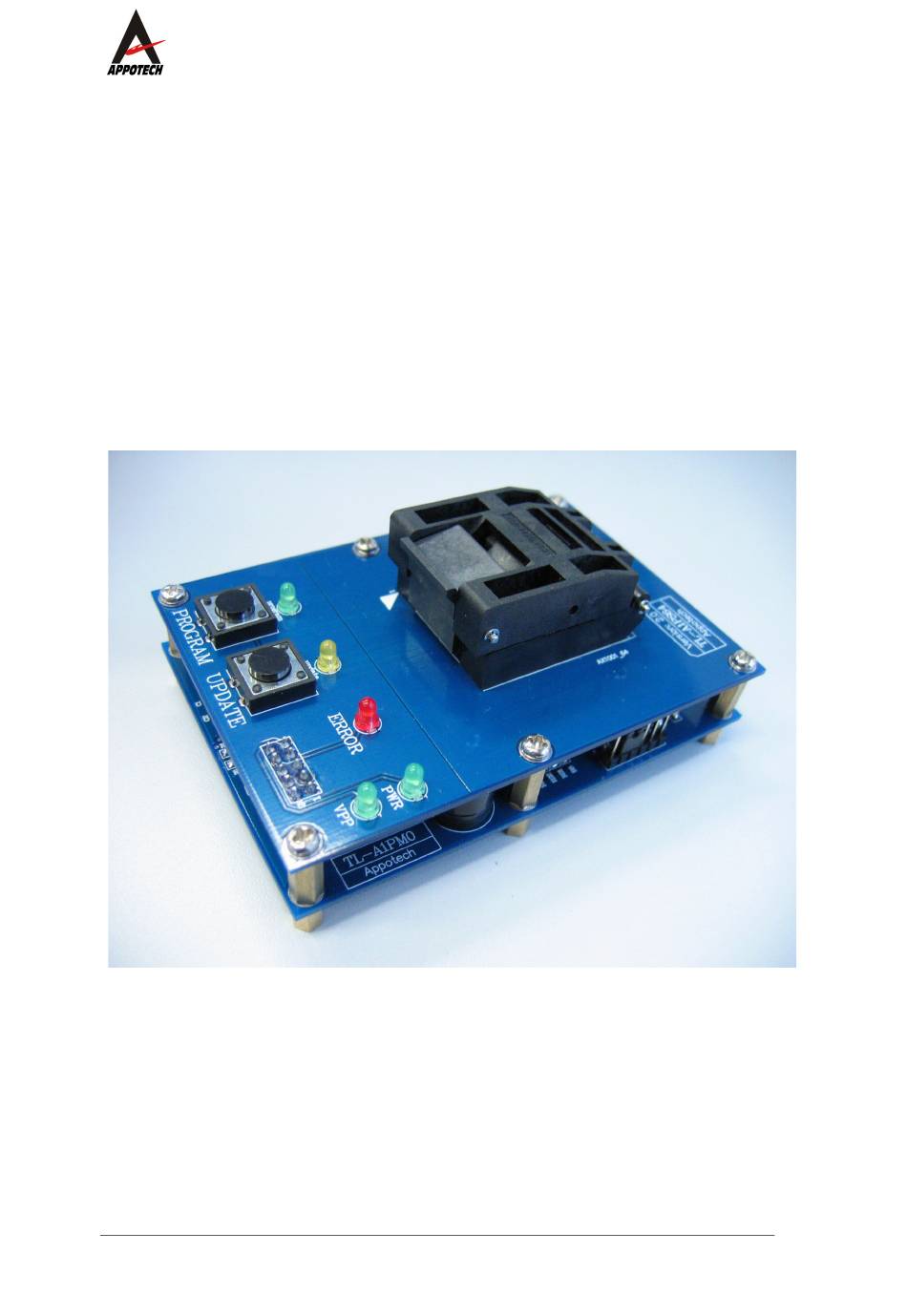

- Page 1 AX Programmer User Guide AX MCU Programmer User Guide http://www.appotech.com AppoTech Limited 2007.5 1/ 10...
-
Page 2: Table Of Contents
AX Programmer User Guide Table of Contents 1 GENERAL DESCRIPTION ......................3 2 LIST OF MATERIALS ........................3 3 USER INSTRUCTIONS FOR PC SOFTWARE ................3 3.1 I ......................3 NSTRUCTIONS FOR SOFTWARE 3.2 PC .............................. 3 ..........................3 INSTALLATION 4 PROGRAM CHIP .......................... -
Page 3: General Description

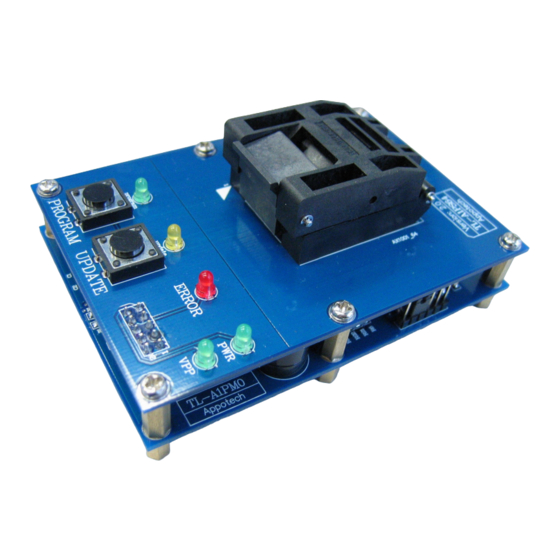

AX Programmer User Guide 1 General Description AX MCU programmer is a specialized tool for programming AX MCU in mass production environment. With the use of customized PC software, it can store program code into external FLASH through a Once the program code is stored into the programmer, it can operate independently without connecting with a PC. - Page 4 AX Programmer User Guide 2. Download customer program to the programmer Step1: connect USB cable,Programmer power on, PROGRAM LED （ green ） / UPDATE LED （ yellow ） / ERROR LED （ ） flash once,and there is an alert tone from buzzer. Step2: run PC software AX**** Programmer.
- Page 5 AX Programmer User Guide ATTENTION:If PROGRAM LED （ green ） , UPDATE LED （ yellow ） , ERROR LED （ red ） slide on all the time,it claims that the usb cable is not connected,or there is some problem about usb port. Step 4: Click on the Browse button.
-
Page 6: Program Chip
AX Programmer User Guide on, you can update again,or checksum. Step 5: If you want to exit updating,Please press PROGRAM button, PROGRAM LED （ green ） / UPDATE LED （ yellow ） / ERROR LED （ red ） flash once,and there is an alert tone from buzzer.And then you can program. - Page 7 AX Programmer User Guide After PROGRAM LED is on for about seconds, it will be turned off and ERROR LED will flash. In this scenario, the chip has been programmed previously. If user still wants to program the chip, press PROGRAM button to start.
-
Page 8: Other Function
AX Programmer User Guide tone from the buzzer. In this scenario, check and make sure the chip is placed properly in the socket and the chip orientation is correct. When using ISP port, check and make sure the following pins are connected properly: DP1, DP2, OSCI, MCLR, VPP, VDD, GND. -
Page 9: Program Dice
AX Programmer User Guide Verify Dice program Step 2: Press PROGRAM button.In several seconds, if ERROR LED is off, it means “Blank Check” is OK. Or ERROR LED is flashing, “Blank Check” fails. 6 Program dice Step 1: short progarmmer’s main board as follows: Function Blank check Verify... - Page 10 AX Programmer User Guide 10/ 10...
