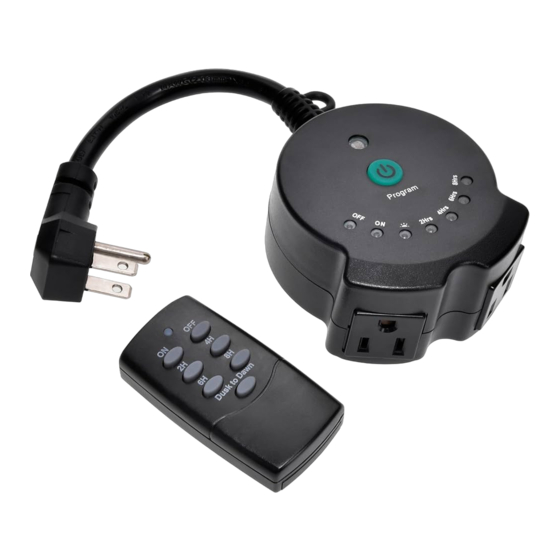

Clear Power CP50006 Operating Instructions

Item #CP50006
Outdoor Timer
w/Remote Control
Operating Instructions

FEATURES

• Remote control allows for programming the timer
from up to 80ft away
• 7 settings: Always On, On at dusk/O at dawn,
On at dusk, - o in 2, 4, 6 or 8 hours, Always O

INSTALLING THE BATTERY

To install A23 (12V) battery: Remove the back cover of the battery
compartment. Align "+" and "-" ends of the battery to those in the
compartment. Fully insert. Close the cover.

USING THE REMOTE CONTROL

Press the button beneath the desired setting.
Example: To program the timer to go on
approximately at dusk and o in 4 hours, press
the button on the remote control beneath
"4hrs" (Fig. 1).
The LED indicator illuminates when any button
is pressed.

PAIRING THE REMOTE TO THE TIMER

The remote control transmitter has already been
paired to the timer. However, if the pairing is lost:
1. Press the "Program" button until the ON indicator
illuminates, then hold the "Program" button for 3-4
seconds until the OFF indicator illuminates and the ON
indicator ashes.
2. Press and hold any button on the remote control
until the ON indicator light on the timer ashes quickly
then turns o . This indicates the pairing is successful.
3. Press any time mode on the remote transmitter. The
indicator light for the corresponding mode on the
timer should illuminate.
To unpair the remote control:
1. Press the "Program" button until the OFF indicator
illuminates and hold the "Program" button for 10
seconds or until all the other indicator lights ash for
one second and then turn o .
(The OFF indicator remains illuminated.)
The remote transmitter is unpaired. To re-pair the
remote transmitter to the timer, follow the pairing
instructions above.

MANUALLY CONTROLLING THE TIMER

Press the "Program" button repeatedly until
the red indicator light beneath the
operating modes is aligned with the desired
mode. The red light will blink rapidly 3 times to
con rm your selection. The red light next to the
selection will remain on to show that the
program has been set. (Fig. 4)
OFF - Power is OFF to attached devices
ON - Power is ON to attached devices
Dusk-Dawn - Power will turn on at dusk and remain
on until dawn
2 Hrs - Power will turn on at dusk and remain on for 2 hours
4 Hrs - Power will turn on at dusk and remain on for 4 hours
6 Hrs - Power will turn on at dusk and remain on for 6 hours
8 Hrs - Power will turn on at dusk and remain on for 8 hours
Fig 1.
NOTE: The timer will turn ON approximately at dusk and the red light
next to the desired setting will be ON. After the timed cycle has been
completed the red light next to the desired setting will remain ON to
show that the program is still active and will repeat at dusk each day until
the operating mode is changed. This timer has a power failure back-up
that will remember the last program setting when the power returns.
Fig. 2
Fig. 3
Fig. 4

OPERATING MODES

TROUBLESHOOTING

PROBLEM POSSIBLE CORRECTIVE
CAUSE ACTION
Devices do Timer is located Move the timer to another
not turn on in an area with location where there is no
approximately too much ambient light.
at dusk. ambient light for
the photocell to
sense darkness.
Connected Ensure the connected devices
Devices do devices are are functional by plugging them
not turn on not in the "ON" directly into the outlet. Be sure
when the position or are the connected devices are in the
timer is in not functioning. "ON" position if they have their
the "ON" own switch. Make sure the outlet
Light bulbs
position. the timer is plugged into is active
need to be
- the LED should light up when
replaced.
plugged into an outlet and in the
"ON" position. Check the bulbs
and replace if necessary.
Timer is in Move the lights away from the
Lights are Dusk-to-Dawn timer, or reposition the timer
mode and light so it does not face the lights
flashing
from connected directly.
(turning on
lights is affecting
and off).
the photocell.
Make sure the timer is fully
Timer is not fully
plugged into the outlet.
plugged into the
Timer power
outlet.
is not "on"
Circuit breaker Check the circuit breaker
connected to connected to the outlet and
the outlet has reset it if needed.
tripped.

HELPFUL TIPS

• This timer is weather-resistant and rated for outdoor use. The timer will function
outdoors when installed and operated as outlined in this manual.
• This timer operates using a light-sensitive photocell that senses when the
environment is getting dark (dusk) or light (dawn). The photocell is located above the
"Program" button on the face of the timer.
• Once programming activates at dusk in the 2hr, 4hr, 6hr or 8hr mode, the program
cycle will complete before the timer resets. Headlights, porch lights, street lamps and
other external lighting sources will not interfere with the active timer program.
• In the dusk-to-dawn mode, temporary light sources like headlights, porch lights and
other external light sources will not interfere with the photocell function unless the
external light source is on for more than 15 minutes. In that case, the timer will shut o
until darkness is restored.
• When set to "ON", the timer will provide continual power to attached devices until the
timer is switched to "OFF", or to any of the other operating modes.
• Do not place the timer hidden in bushes where it won't sense daylight.
• It may take until complete darkness for the photocell to turn on power to the timer.
• The "Operating Mode" indicator light will turn on when the timer programming is
activated and power is being provided to attached devices.
• Do not use extension cords to connect the timer to the power source.
