Summary of Contents for HDQLINE HDP Series

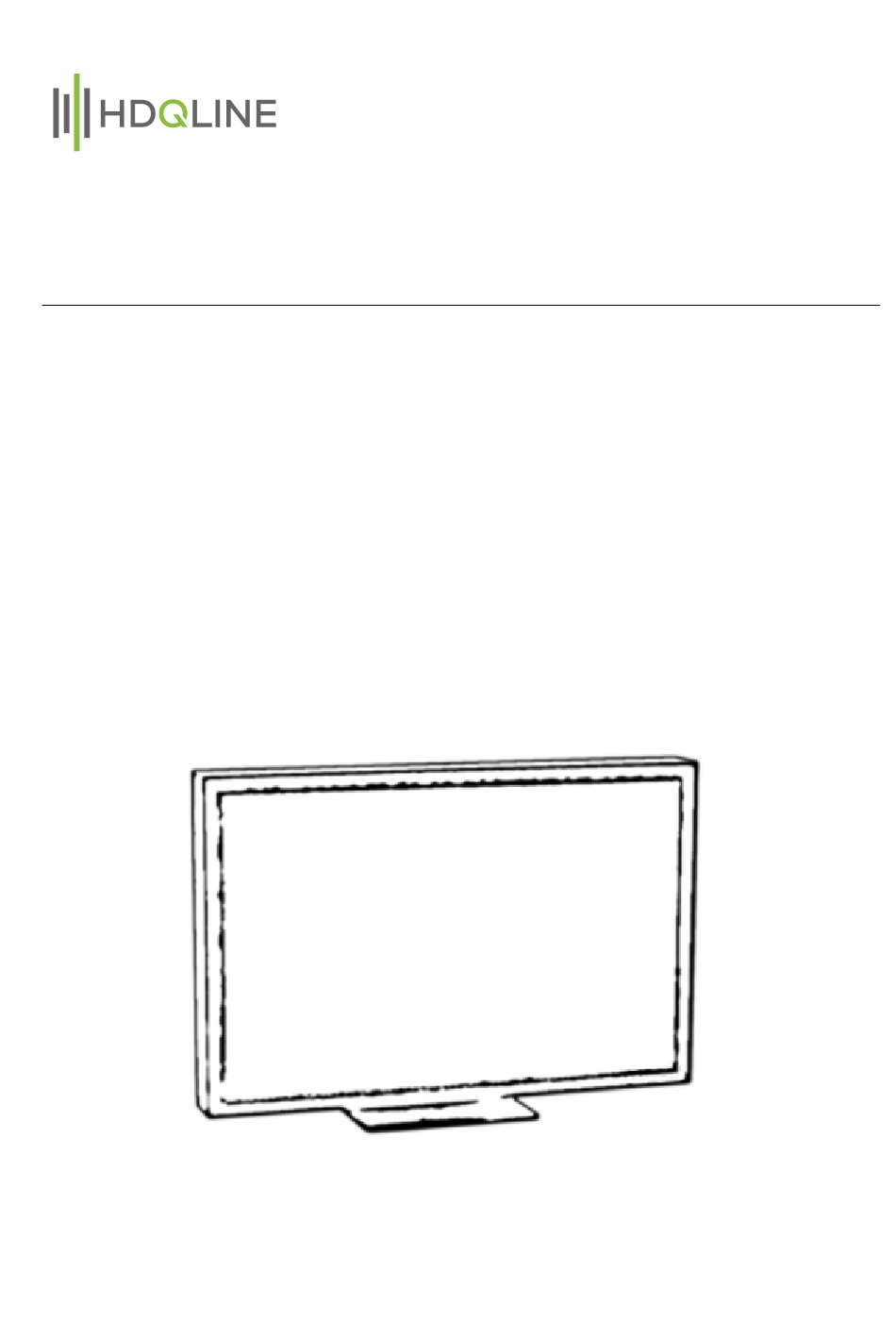

- Page 1 Operating Instructions HDQLINE Broadcast Display Series - Series HRDP - Series - Series QRDP - Series English V1.24 March 9, 2022...
-
Page 2: Introduction
Introduction Introduction Dear customer, Thank you very much for choosing a HDQLINE series display designed and build by SONOVTS Media GmbH. Please read this manual carefully to get familiar with control and operation before using the display. This is for your own safety and to avoid damage on the display. To ensure this please pay close attention to the safety and operating instructions. -
Page 3: Table Of Contents
..........A.1. TSL V5.0 Configuration with HDQLINE ......29 A.2. -
Page 4: Precaution
Please read the cleaning instruc- tions in this manual. THIS DEVICE MUST BE EARTHED. • Do not place device near heat sources such as radiators or air conducts or a hu- midifier. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 5: Handling The Screen
This is not a matter riods. of display defect. HDQLINE displays are pixel fault class A1. • Do not display images with a frame. Con- sider removing the frame during multi- •... -
Page 6: On Security
When try. connecting to the device to the network, make sure to confirm that the network is protected securely. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 7: Working Environment
Therefore the LCD module was operated without frame and with surface temperature of >= 60 °C. To protect the LCD module from damage a heating of the surface above 50 °C should be avoided. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 8: Parts And Functions
17 Power Switch Requires hardware revision 6 (Q2-2021), previous hardware revisions are limited to HDMI 1.4 Dual 3G SFP modules are included for UHD QDP/QRDP series models. Optional available for all other models. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 9: Detailed Rear Panel Description
Display Port input. The DCS+ software offers a superset of functions and monitoring options for all 7 SDI Out HDQLINE display series. For advanced Unbalanced 75 Ω BNC output connector customization like creating custom over- for serial digital signals (3G/HD/SD). The... -
Page 10: Gpi General Purpose Interface
Interface Input/Output) connector it is possible to set up your own custom-made external input switching solution for the HDQLINE display. • Buttons and LEDs can be installed any- where you like for maximum convenience (e.g. table, tech rack) and be connected via RJ45 style cable to the display. -
Page 11: Connecting The Sdi Signals
(not included in delivery). The flash drive 3. Open the OSD menu and navigate to the must be formatted with the FAT32 file system. ”System” page. 1. Visit the HDQLINE firmware webpage and 4. Select the ”USB Update” button. Next to http:// download a firmware container: the button a info-line will report if the USB www.hdqline.com/firmware... -
Page 12: Remote Control
UMD/IMDs. Available via UDP port 8101. top software enables the user to access all, including advanced configuration set- • RCP1806 tings of all HDQLINE display series. The RCP1806 protocol can be used to • Ember+ control the video source, Tally’s and The Ember+ protocol can be used to con- UMD/IMDs. -
Page 13: External Keyboards (Option)
SONOVTS Media GmbH. It tionally available from SONOVTS Media can be linked via Aux-connector and of- GmbH) can be installed in one HDQLINE fers all buttons of the built-in keyboard display – two more if a QIO Universal Ex- plus an IR Sensor for optional remote con- pansion Module has been installed. -
Page 14: Qio Base Module (Option)
2.9. QIO BASE Module (Option) (Option) • This optional board adds multiple in- and outputs to the HDQLINE display platform • This optional board adds 2x 12G SDI and therefore increases the flexibility and single link UHD/4K inputs to the HDQ-... - Page 15 2. Parts and Functions Electrical / Mechanical Power Requirement: 12 to 24V DC, supplied by HDQLINE display Operating Temperature: 5 °C - 35 °C Power consumption typical: Dimensions (Width x Height x Depth): 157mm x 172mm x 15mm Weight: approx. 250g http://www.hdqline.com...
-
Page 16: Osd Menu
<UP>, <DOWN>, • The most important features and set- <LEFT> and <RIGHT> buttons. Changes tings of the HDQLINE displays are avail- take effect live for most items when nav- able within the On Screen Display (OSD) igating through them. -
Page 17: Osd Menu Operation
Group: GROUP Control HDMI 1 Picture Settings Room: ROOM Option 12G HDMI 2 EOTF / Colormetry Type HDQLINE QRDP 310 Remote Settings Overlay License UHD/4K | HDR Network Settings DL SDI 1/2 Audio System DL SFP 1 Measure IP Address: 172.17.186.212... -
Page 18: Input Config
6.0. Older hardware • HDMI 2 Manual Sampling Select the revisions are restricted to the ”Follow In- color sampling between YUV-422, YUV- put” option. 444 and RGB-444 if manual mode is se- lected. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 19: Picture Settings
Please Note: The UMD Shrink feature allows to downscale the video slightly to create some blank area on top or bottom of the screen for overlays like Tally, UMD, Audio PPM’s, etc... http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 20: Eotf / Colormetry
– Y Only (mono) ferent options: – Cr Only – ITU-R BT.709 – Cb Only – ITU-R BT.2020 – DCI-P3 4.5. EOTF / Colormetry Configuration of monitor’s EOTF (Electro- Optical Transfer Function) and color space. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 21: Overlay
4 User configurations. The User configu- rations can be done by DCS+ software. • Clock Enables a clock overlay. Please use the NTP feature to synchronize time properly. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 22: Measure
This can be used by the operator to quickly identify and adjust the luminance level of objects. There are 8 predefined http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 23: Control
• Input Info Type You can select between Off, All Inputs, All active Inputs, Event Log and ANC List. Please Note: Signal Info / Input Info is only visible if OSD is closed. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 24: System
• Signal Debug Info Press ENTER to open a subpage with detailed information The System page gives an overview on the about the current input signal such as for- device system parameters. mat, VPID and SDI code. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 25: Available Signal Formats
5. Available Signal Formats 5. Available Signal Formats The device is applicable to the following formats. 5.1. HDQLINE Video Format Compatibility HDQLINE QRDP HRDP Video Format UHD capabilities include: playback of 4K/UHD content, 4K/UHD input sources. Please Note: HRDP and HDP models... - Page 26 Option QIO Dual 12G input module does not support SD SDI. Level A only. Square Division (SQD) and 2 Sample Interleave (2SI). Square Division (SQD) only. Requires optional QIO Dual 12G input module. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022...
-
Page 27: Supported Video Formats In Smpte 2110-20 Streams
Reception of 48 KHz audio streams with 1 to 8 channels at packet times of 1 ms or 8 channel at packet times of 125 s is supported. Reception of streams with 16 channels at packet times of 125 s is supported as well. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 28: Supported Hdmi/Display Port Formats
4:4:4 YCbCr 12/10/8b 4:2:2 YCbCr 12/10/8b 4:4:4 RGB 12/10/8b 1280x1024 4:4:4 YCbCr 12/10/8b 4:2:2 YCbCr 12/10/8b 4:4:4 RGB 12/10/8b 1360x768 4:4:4 YCbCr 12/10/8b 4:2:2 YCbCr 12/10/8b 4:4:4 RGB 12/10/8b 1366x768 4:4:4 YCbCr 12/10/8b http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... - Page 29 4:2:2 YCbCr 12/10/8b 23.98/24/25/29.97/30p 4:4:4 RGB 8b 50/59.94/60p 4096x2160 4:4:4 YCbCr 8b 50/59.94/60p 4:2:2 YCbCr 12/10/8b 50/59.94/60p Frame Rate 1/1.001 is also supported. Applies only to the HDMI1 input with a HDMI2.0 capable device. http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022...
-
Page 30: Appendices
Problem: No picture is visible. A.1. TSL V5.0 Configuration with • Check if power cord is connected. HDQLINE • Check if correct input source is selected. • Check if there is a valid signal at the se- - Only support version 5 lected input. -
Page 31: Software Disclaimer/Copyright Notice
For service and support please con- tact our customer service: SONOVTS Media GmbH Am Koenigholz Ost 4 85411 Hohenkammer / Germany Phone: +49 89 419671 0 Fax: +49 89 419671 9999 eMail: contact@HDQLINE.com Internet: www.HDQLINE.com http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022... -
Page 32: Revision History
P. v. Creytz 1.22 Nov 16, 2021 Updated GPI/O assignment P. v. Creytz 1.23 Feb 8, 2022 Updated HDMI format table P. v. Creytz 1.24 Mar 9, 2022 Updated Inp. Config, Measure and Option http://www.hdqline.com © SONOVTS Media GmbH 2019 - 2022...
