INSTORE SCREEN inTOUCH 156 Getting Started Manual page 2

DESCRIPTION
This display is designed for professional use in retail environments, it can also be used for other
professional purposes with the correct installation hardware.
Included with this product are the following items:
1 x inTouch156 monitor
1 x This manual
USB-C connect: Needed to complete the installation connect are:
- USB-C high speed cable (not included)
HDMI connect: Needed to complete the installation connect are:
- DP to mini HDMI (ont included)
- USB-C 3.1 cable (not included)
- Lenovo USB-C power supply #4X20M26252 (separate order)
Technical data inTouch156: Technical data: Lenovo PSU # 4X20M26252 (separate order)
Resolution: 1920 x 1080 Input: AC = 100-240V - 1.3A
Output: DC = 20V 2.25A - 15V 3A - 9V 2A - 5V 2A
Colors: 16.7 M
Viewing angle: 89/89/89/89 Cetifications: CE, UL, FCC, RHOS
Contrast ratoo: 1000:1
Brightness: 420 cd/m2
Power consumption: 12V 8W
Video input: HDMI, USB-C
Certifications: CE, FCC, RHOS
High-Risk Activities Warning:
This display is not intended for use in the operation of nuclear facilities, aircraft navigation or
communications systems, or air traffic control machines, or for any other uses where the failure
of the computer system could lead to death, personal injury or severe environmental damage.
Disposal and Recycling Information:
This symbol indicates that your product must be disposed of properly according to local laws
and regulations. When your product reaches its end of life, contact your distributor or your
local authorities to learn about recycling options.
European Union—Disposal Information
The symbol above means that according to local laws and regulations your product should be
disposed of separately from household waste. When this product reaches its end of life,
take it to a collection point designated by local authorities. Some collection points accept
products for free. The separate collection and recycling of your product at the time of disposal
will help conserve natural resources and ensure that it is recycled in a manner that protects
human health and the environment.
2
CONNECTING THE MONITOR
This monitor can be powered, get video signals and transmit touch data with only one USB-C cable.
Connecting the monitor via USB-C (USB type C):
1. Connect the USB C cable to your computer output marked
2. Connect the USB C cable your monitor as figure A
Connecting the monitor via mini HDMI:
1. Connect the HDMI cable to your computer
2. Connect the mini HDMI cable your monitor as figure B
3. Connect USB-C power supply (Lenovo PSU # 4X20M26252 (separate order)) as figure B
OR: 4. Connect the USB C cable to your computer with power output as figure B

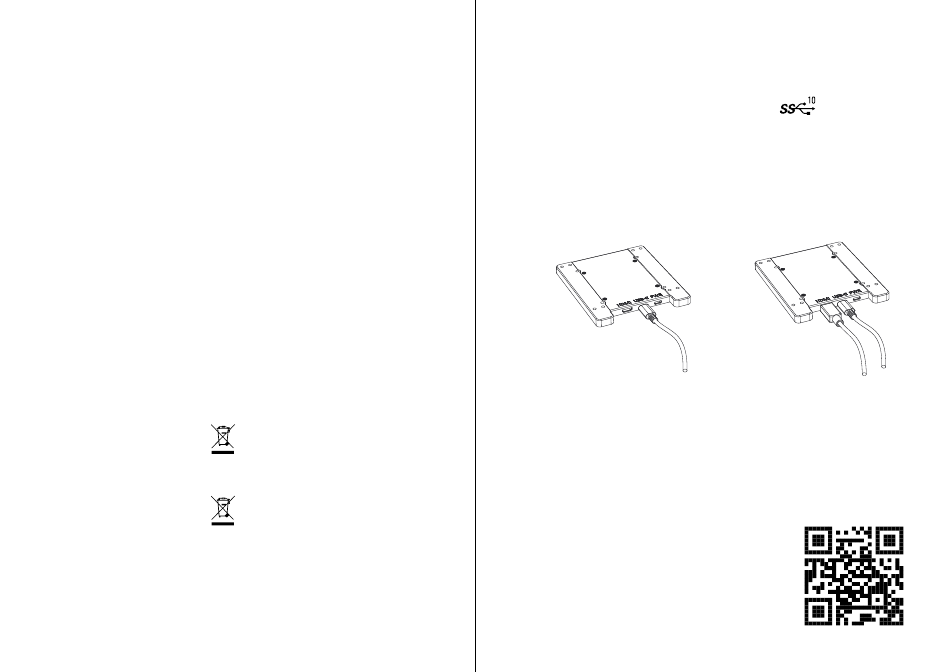

Figure A
WARRANTY
This display comes with a three year manufacturerʼs warranty. You can find details of the warranty
at www.instorescreen.com. '
For more information scan the QR code:
or visit https://rma.instorescreen.com
Figure B
3
