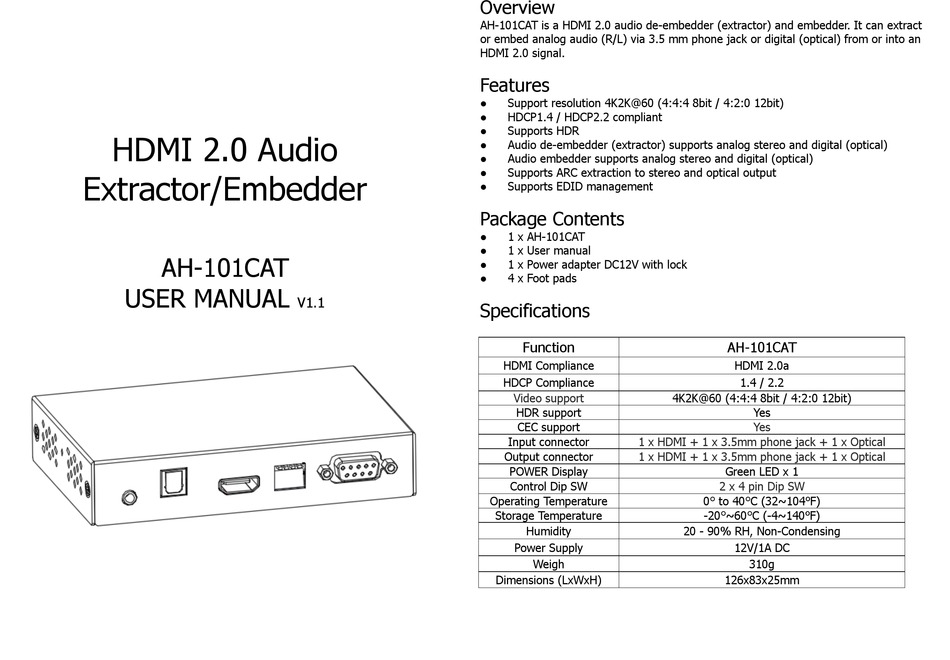

Elite Image AH-101CAT User Manual

HDMI 2.0 Audio
Extractor/Embedder
AH-101CAT
USER MANUAL
V1.1

Overview

AH-101CAT is a HDMI 2.0 audio de-embedder (extractor) and embedder. It can extract
or embed analog audio (R/L) via 3.5 mm phone jack or digital (optical) from or into an
HDMI 2.0 signal.

Features

Support resolution 4K2K@60 (4:4:4 8bit / 4:2:0 12bit)
l
HDCP1.4 / HDCP2.2 compliant
l
Supports HDR
l
Audio de-embedder (extractor) supports analog stereo and digital (optical)
l
Audio embedder supports analog stereo and digital (optical)
l
Supports ARC extraction to stereo and optical output
l
Supports EDID management
l

Package Contents

1 x AH-101CAT
l
1 x User manual
l
1 x Power adapter DC12V with lock
l
4 x Foot pads
l

Specifications

Function
HDMI Compliance
HDCP Compliance
Video support
HDR support
CEC support
Input connector 1 x HDMI + 1 x 3.5mm phone jack + 1 x Optical
Output connector 1 x HDMI + 1 x 3.5mm phone jack + 1 x Optical
POWER Display
Control Dip SW
Operating Temperature
Storage Temperature
Humidity
Power Supply
Weigh
Dimensions (LxWxH)
AH-101CAT
HDMI 2.0a
1.4 / 2.2
4K2K@60 (4:4:4 8bit / 4:2:0 12bit)
Yes
Yes
Green LED x 1
2 x 4 pin Dip SW
0° to 40°C (32~104℉)
-20°~60°C (-4~140℉)
20 - 90% RH, Non-Condensing
12V/1A DC
310g
126x83x25mm
