Greenwald Industries
INSTRUCTIONS FOR
REMOTE PROGRAMMER
INS. 2491 • REV. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the digicoin II: and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Greenwald digicoin II:

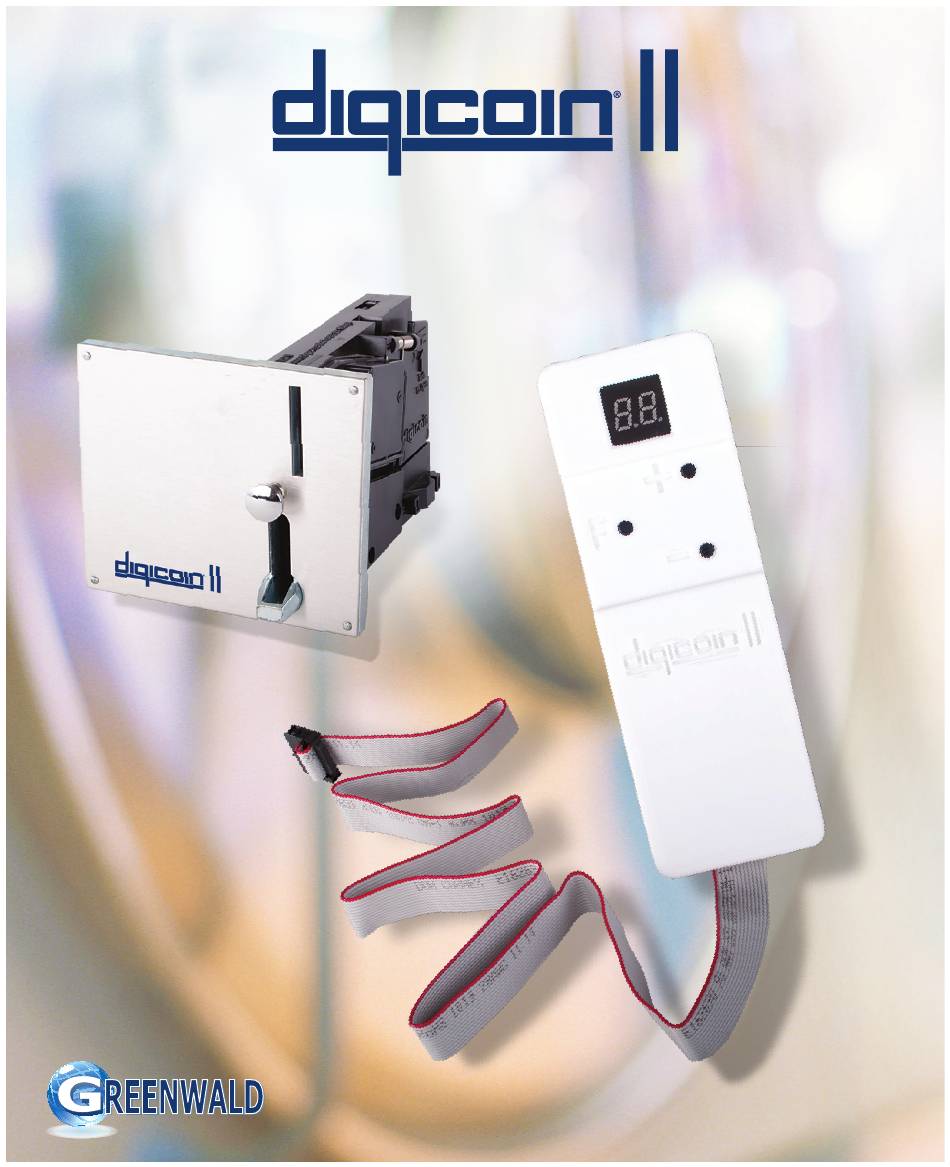

  • Page 1 Greenwald Industries INSTRUCTIONS FOR REMOTE PROGRAMMER INS. 2491 • REV. A...
  • Page 2 Greenwald Industries 212 Middlesex Avenue Chester, CT 06412 greenwaldindustries.com • Customer Service: 800-221-0982 2 • digicoin II • Remote Control Programming Instructions - INS.2491 REV. A...

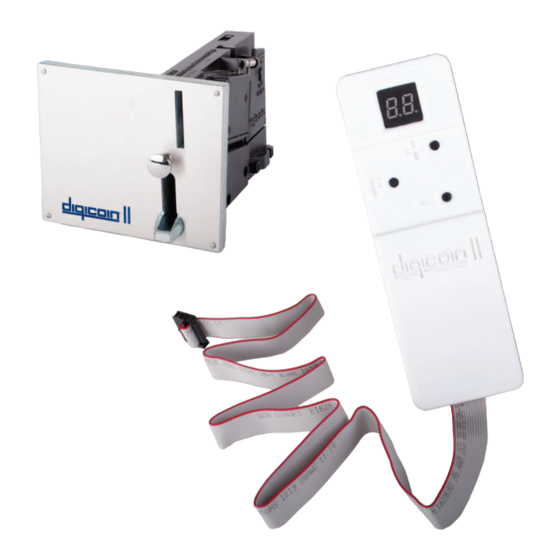

  • Page 3 1.75" INCREASE Greenwald Industries FUNCTION DECREASE 5.25" REMOTE PROGRAMMER PN# 46-1001 • INS. 2491 REV. A EN21-111 Button Function Overview: Long Press: Hold F button for >= 2 seconds Quick Press: Quickly press F button without holding it down Press and Hold: Press and hold F button until running lights are displayed...
  • Page 4 This page intentionally left blank 4 • digicoin II • Remote Control Programming Instructions - INS.2491 REV. A...

  • Page 5: Table Of Contents

    RECOVERY Reset all settings to factory defaults ..............13 REMOTE CONTROL FUNCTIONS FLOW CHART Overview .........................14 Greenwald Industries 212 Middlesex Avenue Chester, CT 06412 greenwaldindustries.com • Customer Service: 800-221-0982 Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 5...

  • Page 6: Teach - Coin Training

    TEACH - Coin Training Add a new coin or token digicoin II coin drops are preprogrammed to accept coins of varying types and denominations. Be sure to select an unused channel for a new coin or token unless you want to override an existing channel.
  • Page 7 Drop 6 coins. Quick press the F Quick press the F Press + to go to Display will count button to enter button to select the En menu to up to 06 and the select channel. the channel enable the coin return to tH.

  • Page 8: Pulses - Set Pricing

    PULSES - Set Pricing Adjust number of pulses to control pricing The digicoin II can be programmed to emit a number of pulses that coincide with the price determined for a particular coin or token. Long press the F Quick press the F Quick press the F button to enter button to enter...

  • Page 9: Coin Output

    COIN OUTPUT Chooses output pin (1 or 2) The digicoin II has two output ports. Either port can be assigned to each programmed coin channel. Quick press the F Long press the F Quick press the F button then use button to enter the button to enter the + or - button to...

  • Page 10: Tolerance - Adjusts Coin/Token Acceptance Ensure Slugs Are Not Accepted

    TOLERANCE Adjusts coin/token acceptance The acceptance of a coin is governed by 6 tolerances t1 = Diameter (low) t2 = Diameter (high) t3 = Mag 1 (low) t4 = Mag 1 (high) t5 = Mag 2 (low) t6 = Mag 2 (high) Tolerance levels can be set in the Use the + or - Long press the...

  • Page 11: Enable

    ENABLE Activate or deactivate a channel Quick press the F Quick press the F Use the + or - Long press the F button to enter button to select button to select button to enter the select channel. the channel the desired the main menu mode (CH will...

  • Page 12: Reset Channel

    RESET CHANNEL Reset a specified channel to the factory default Allows for a specified channel reset without changing adjustments made to other channels. Long press the F CH will be blinking. Use the + or - button to enter Quick press the F button to scroll the main menu.

  • Page 13: Recovery

    RECOVERY Reset all settings to factory defaults Completely reset the digicoin II to factory defaults. Long press the F Use the + or - Quick press the F button to enter the button to choose button to confirm main menu. Press + NO or YE.
  • Page 14 digicoin II remote functions flow chart Select Channel Set Pulses Set Coin Output Drop 6 Coins Function Function Function Function 00-05 Teach c1-16 1-99 1, 2 (Blink) (Esc) (Esc) (Esc) (Esc) Change Pulses Select Channel Function Function Pulses 1-99 c1-16 (Esc) (Esc) Change Output Pin...
  • Page 15 Notes _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ Remote Control Programming Instructions - INS.2491 REV. A • digicoin II • 15...
  • Page 16 Greenwald Industries 212 Middlesex Avenue Chester, CT 06412 greenwaldindustries.com • Customer Service: 800-221-0982 INS. 2491 REV. A • EN21-111...
