Summary of Contents for ROVER WHEEL Rover 12

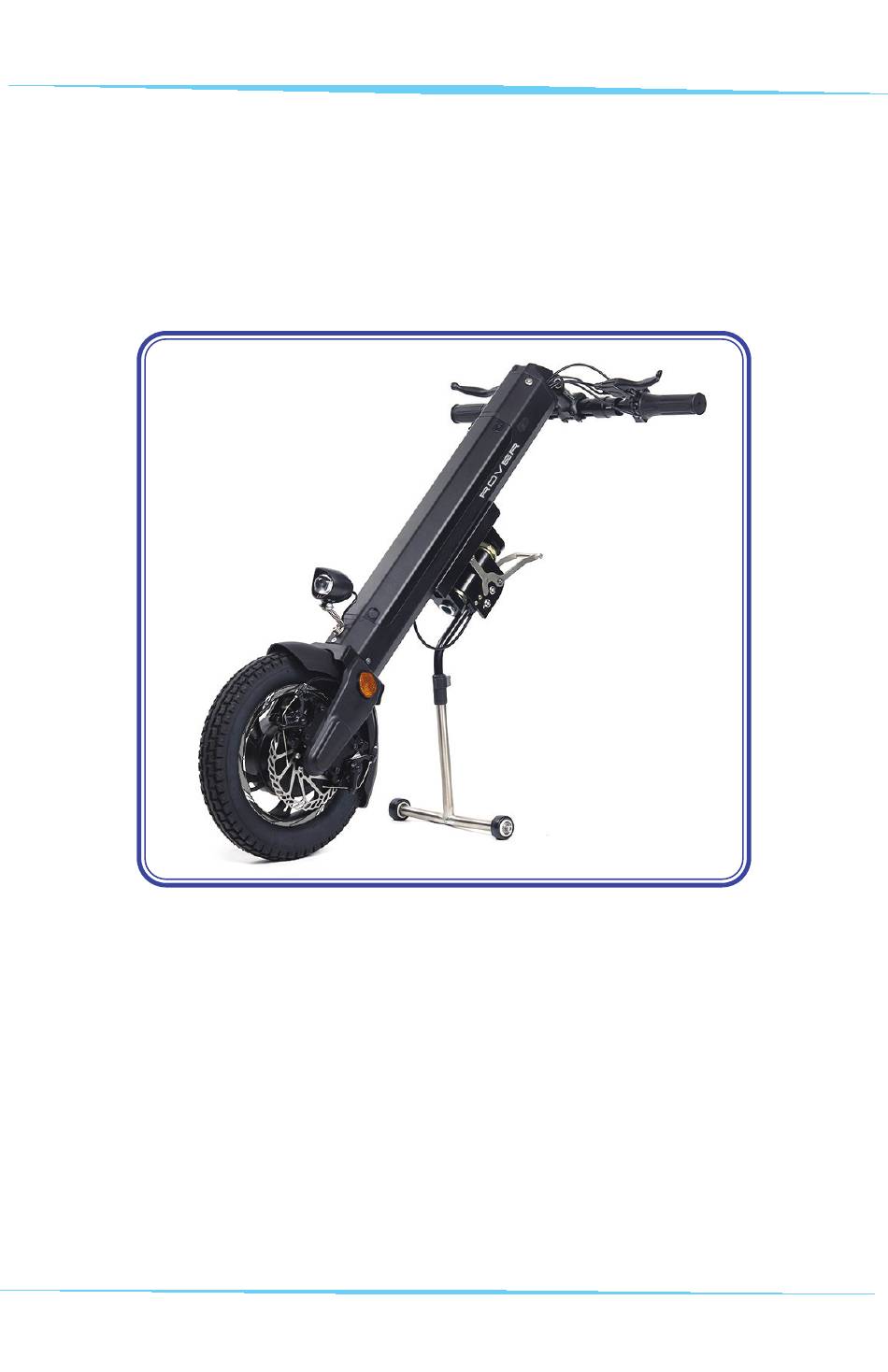

- Page 1 Rover Wheel™ Rover 12 User Manual www.roverwheel.com...
- Page 2 Rover Wheel™ IMPORTANT CONSUMER INFORMATION This manual contains important instructions that must be made available to the user of this product. Please do not remove this manual before delivery to the end user. SUPPLIER: This manual must be included with this product.
-
Page 3: Table Of Contents
Safety Measures and Precautions Warnings Rover Wheel Setup 8 - 9 Folding Frame Installation Fixed Frame Installation Connecting/Disconnecting Rover Wheel to Wheelchair Operation Instructions Charging Rover Wheel Maintenance / Maintenance Schedule 15 - 16 Warranty Terms and Conditions Warranty Registration... -
Page 4: Rover Wheel Products
Rover Wheel™ Rover Wheel Products Rover 6 Rover 12 Rover 16 MT-05 / MT-06 MT-01 / MT-02 MT-03 / MT-04 Folding Frame Fixed Frame MT-01/03/05 MT-02/04/06 Page 2... -
Page 5: Introduction
This manual should always be referenced in conjunction with a licensed clinician to assure safe use by the user. The Rover Wheel user manual should be read and fully understood, prior to the installation, set-up, and use of this product. -
Page 6: Rover Wheel Features
Rover Wheel™ Rover Wheel Features Rover 12 Features • Disc Brake system • 12” Pneumatic Tire • Motors • Combination Switch • Quick Release Pin • Removable Battery • Handle Bars • Foot Support • Battery Lock Button • Speedometer •... -
Page 7: Specifications
• If the shipping box is undamaged, remove all parts of the Rover Wheel from the cardboard protective boxes and check that everything is there based on the pictures below. -
Page 8: Safety Measures And Precautions
• To prevent accidental activation of the Rover Wheel, always completely turn the power OFF when parked, transferring from/to the wheelchair or loading/unloading. • Power OFF the Rover Wheel BY KEY and take it out. Using the red button only to power OFF is not safe enough. -
Page 9: Warnings
The Rover Wheel should only be used by one driver at a time. Never use the Rover Wheel while carrying a child. • The Rover Wheel is not to be driven in poor weather conditions such as strong snow or rain, on ice, or on slippery soil/mud. •... -
Page 10: Rover Wheel Setup
Fig. 2 Handlebar Setup The Rover 12 and 16 feature folding handlebars which help make transportation easier. To set the handlebars into driving position: first clear any wiring from the hinge points, then pull the handles up to a horizontal position, the Handlebar Lock Sleeves should snap into position, locking the handlebars into the driving position. - Page 11 Right Brake Adjustment Screen and Control Adjustment Rover 12 feature LED screen which must be attached before operating the Rover Wheel. Follow these steps to install the LCD screen to the Rover Wheel Handlebars. 1. Use a 3mm Hex to loosen the screw behind the right hand brake handle (shown in figure 3).
-
Page 12: Folding Frame Installation
Rover Wheel™ Folding Frame Installation Folding Frame Installation Use a 5mm Hex Key to loosen the screws in the clamps on the left and right arm of the spreader bar (circled in below). Pull the clamp mounting bars out to the required width needed to reach both front posts of your wheelchair. -
Page 13: Fixed Frame Installation
The Hook Bar should be at the same height as the Latch Pin of the Rover Wheel. Fixed Wheelchair Frame Adjustment Use a 5mm Hex Key to loosen the 2 screws on... -
Page 14: Connecting/Disconnecting Rover Wheel To Wheelchair
Hook Bar Hook Bar: Push the disconnect button is able to unhook from the Rover Wheel. Once the (shown in figure 5) to unlock the bottom Hook Bar is disengaged, roll the Rover Wheel away Hook Bar from the Rover. -
Page 15: Operation Instructions
Slow down before changing direction and while turning to avoid falling and/or losing control. • It is recommended to install reflectors and/or use the headlight on the Rover Wheel. • Wearing bright colored clothing while riding at night or during poor visibility conditions can increase your visibility to other drivers or pedestrians. -
Page 16: Charging Rover Wheel
Charging the Rover Wheel The current charge level of the battery of the Rover Wheel is displayed on the LCD screen (indicated with arrow in picture). The battery level can also be checked while the Rover is powered off. Pressing the Battery Indicator button (located on the battery) will display a coloured LED. - Page 17 5. If your Rover Wheel is not going to be used for a long period of time, make sure it is still being fully charged every two months in order to avoid damage due to “deep discharge”.
-
Page 18: Maintenance / Maintenance Schedule
The front wheel slips/spins in place: • The front wheel is too far from your wheelchair. Adjust the Rover Wheel so that the front wheel is as close as possible to the footrest. The Power Unit should be nearly vertical when the Rover Wheel is attached to your wheelchair. -
Page 19: Warranty Terms And Conditions
Contact your authorized dealer, or email Symmetric Designs directly, include a detailed description of the problem you are facing, and the serial number of your Rover Wheel. Please attach photos/videos of the problem to help our support team diagnose the issue. -
Page 20: Warranty Registration
Date of Purchase: Keep a copy of this registration form for your records and send the completed form within 30 days of receipt of your Rover Wheel by mail, or email a picture of this page, or scanned copy to: sales@symmetric-designs.com To submit your warranty registration online: Scan the QR code below, or go to www.symmetric-designs.com/rover-warranty, fill out the warranty... -
Page 21: Notes
Rover Wheel™ Notes Page 19 v1.0 - Feb/2023... -
Page 22: Trip Log
Rover Wheel™ Trip Log Battery Charge Odometer Reading Date Destination Start Start Finish Page 20... - Page 23 Rover Wheel™ Battery Charge Odometer Reading Date Destination Start Start Finish Download the Rover Wheel Trip Log to print your own trip log pages by visiting www.symmetric-designs.com/rover-wheel-trip-log or scanning the QR code below. Page 21 v1.0 - Feb/2023...
- Page 24 Rover Wheel™ Symmetric Designs Ltd tel: (+1) 250-537-2177 125 Knott Place fax: (+1) 250-537-1998 Salt Spring Island, BC V8K 2M4 toll-free: (+1) 800-537-1724 Canada sales@symmetric-designs.com...
