Anchor TM45 User Manual

Full Motion Flat Panel TV Mount for 13-65" Televisions
User's Guide for Model TM45 v1949-03
Warnings
A1
• The wall mounted parts of the TV mount must be firmly attached to a concrete/
brick/solid wood wall, or wall studs behind drywall.
• Tighten screws so that the wall plate is firmly attached, but do not overtighten.
A2
Overtightening can damage the screws and increase the chances of failure.
• Do not remove or loosen any screws until they are no longer engaged with the
B1
mount. Doing so may cause the screen to fall.
• It is highly recommended to have this mount professionally installed.
B2
• Supports VESA mounts up to 400 x 400mm (100 x 100mm for 13" TVs).
• This mount is designed to hold a maximum of 60 lbs (27 kg).
C1
WARNING: This product can expose you to chemicals including lead,
which is known to the State of California to cause cancer and birth
C2
defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov. This product meets and complies with
all Federal regulations.
D1
Recommended Tools
D2
• Power drill
• 5/32" drill bit for drywall
D3
• 3/8" or 10mm drill bit for concrete
• Stud finder
E
• Phillips screwdriver
F
Included Parts
A1 x4 G1
M4x12mm
A2 x4 G2
M4x20mm
G3
B1 x4
M5x12mm
B2 x4 H1
M5x20mm
C1 x4 H2
M6x12mm
H3
C2 x4
M6x20mm
D1 x4 I
M8x15mm
D2 x4 J
M8x20mm
K
D3 x4
M8x50mm
E x3
M6x50mm
F x3
ø10x50
G1 x11
ø6
G2 x4
ø8

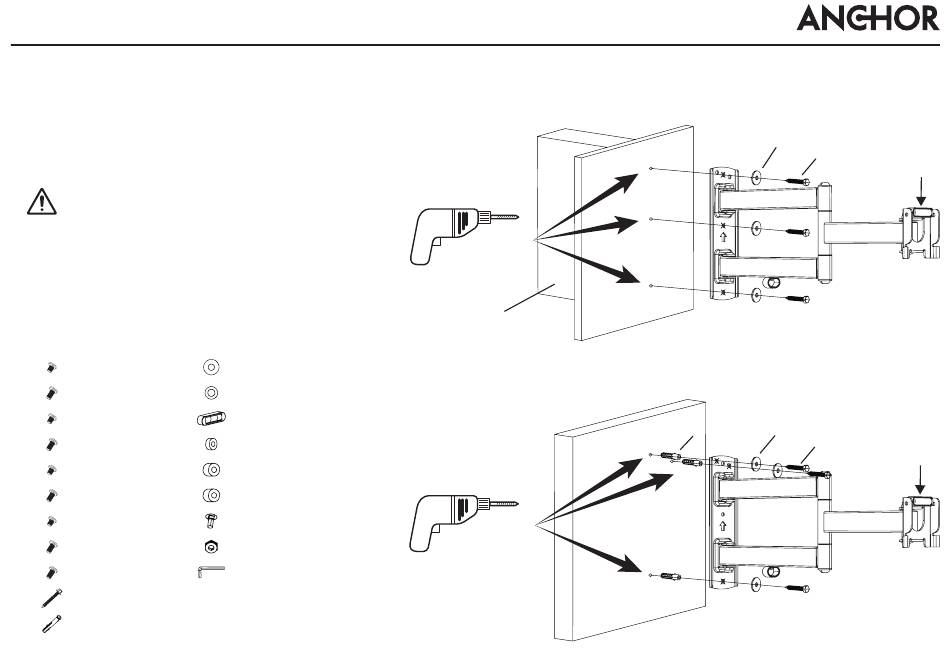

Step 1A: Mounting to Drywall
x4 • DO NOT DRILL AND HANG THE MOUNT DIRECTLY TO DRYWALL OR
M4x12mm
SHEETROCK. They are not strong enough to support a TV and will cause damage
if used this way.
x4
M4x20mm
• Use a stud finder to locate studs behind drywall.
• Pre-drill 3 holes into the stud using a 5/32"
x4
M5x12mm drill bit. Note the 3 screw hole locations for
attaching to a stud differ from those used for a
concrete wall.
x4
M5x20mm
• Attach the Swing Arm firmly to the wall using
the supplied washers and screws.
x4
M6x12mm
x4
M6x20mm
x4
M8x15mm
x4
M8x20mm
x4
M8x50mm
x3
M6x50mm
x3
ø10x50
x11
ø6
Step 1B: Mounting to Concrete Wall
x4
ø8
• Pre-drill 3 holes into the wall using a 3/8" or 10mm drill
x1
Bubble
bit. Note the 3 screw hole locations for attaching to a
Level
concrete wall differ from those used for a stud.
x4
• Insert the 3 wall anchors into the holes and attach the
ø8x5
Swing Arm firmly to the wall with the supplied washers
and screws.
x4
ø8x10
x4
ø8x20
x4
x4
Allen Wrench x1
5x5
x3
wood stud
x3
G1
E
F G1
E
G3
G3
