OGSI OG-75 Installation, Operation & Maintenance Manual

Oxygen generator

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Model OG-75 thru OG-750

Oxygen Generator

Installation, Operation &

Maintenance Manual

OG-100

Oxygen Generating Systems International

814 Wurlitzer Drive

North Tonawanda, New York 14120

Telephone - (716) 564-5165

Fax - (716) 564-5173

Toll Free - (800) 414-6474

E-mail -

ogsimail@ogsi.com

Web Site -

http://www.ogsi.com

Table of Contents

Need help?

Do you have a question about the OG-75 and is the answer not in the manual?

Questions and answers

Summary of Contents for OGSI OG-75

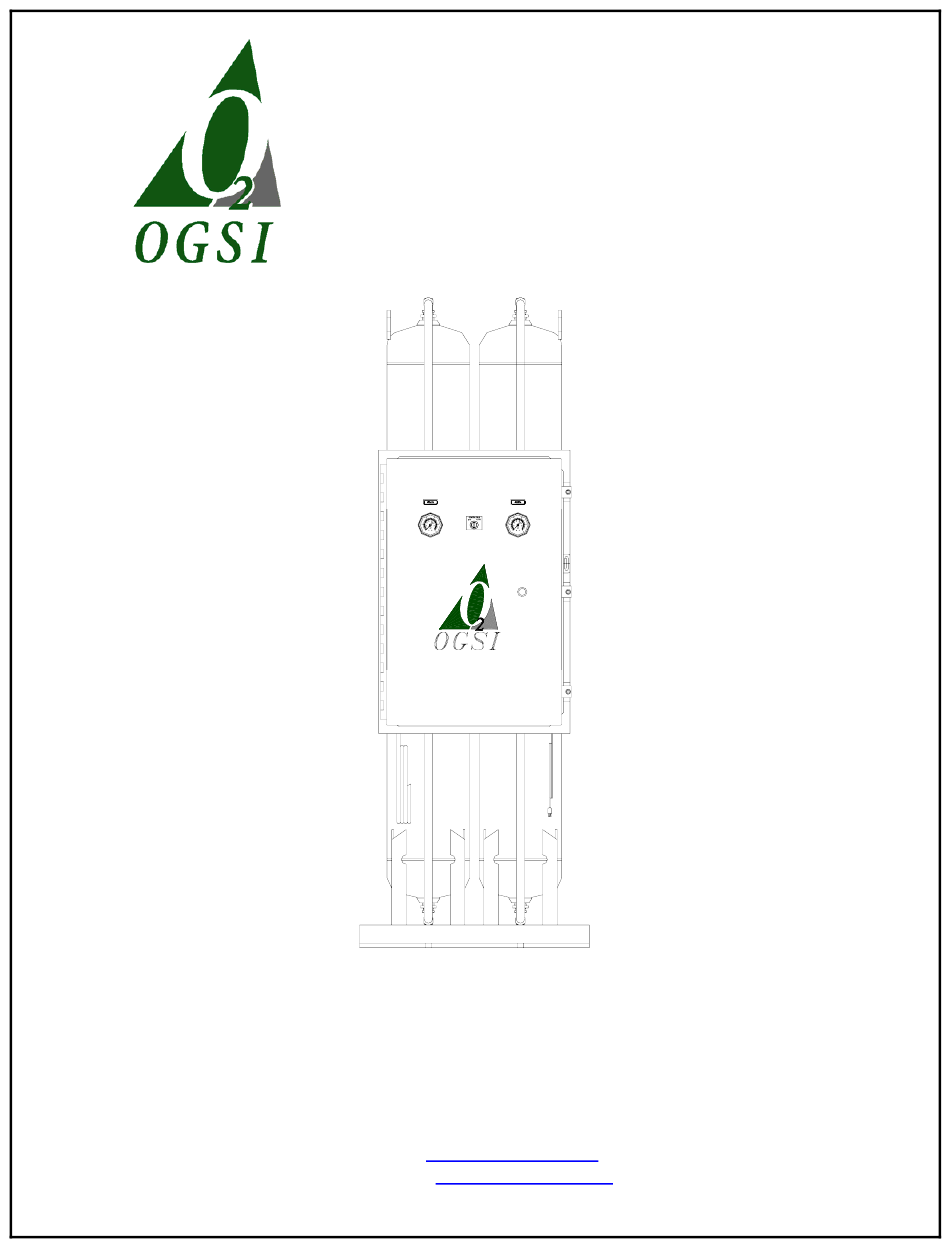

Page 1 Model OG-75 thru OG-750 Oxygen Generator Installation, Operation & Maintenance Manual OG-100 Oxygen Generating Systems International 814 Wurlitzer Drive North Tonawanda, New York 14120 Telephone - (716) 564-5165 Fax - (716) 564-5173 Toll Free - (800) 414-6474 E-mail - ogsimail@ogsi.com Web Site - http://www.ogsi.com...
Page 2: Table Of Contents
- Warranty Policy - Limits of Liabilities - Operational Warnings - Safe Handling of Compressed Gas Cylinders - Pressure Swing Adsorption (PSA) Technology - OG-75 thru OG-750 Specifications - Required Operating Conditions - Typical Setup Diagrams Operating Instructions: - Pre-installation Check...
Page 4: Unpacking Instructions
OGSI shipping terms are Free On Board (FOB), North Tonawanda, NY USA. This means that once the equipment leaves our dock you are the owner of it. OGSI has no legal claim to make against any shipping company for damage.
Page 5: Technical Service And Assistance
Technical Service and Assistance This manual is intended as a guide for operators of OGSI Oxygen Generators and Oxygen Generating Systems. It includes information on our warranty policy, on how the machines work, on proper set up and operation, and finally on how to maintain them.
Page 6: Warranty Policy
This warranty may be transferred to subsequent owners of a given machine only with the prior approval of OGSI. The warranties above are given expressly in lieu of any other warranty stated or implied and constitute the only warranties made by OGSI.
Page 7: Limits Of Liabilities
Oxygen Generator. In the event the buyer or leasee chooses to use the OGSI oxygen generator for medical or human life purposes, OGSI will not be liable for any special, indirect, incidental, or consequential damages resulting from such use.
Page 8: Safe Handling Of Compressed Gas Cylinders
20 feet apart; preferably separated by a fire resistant partition. • For additional information refer to the CGA publications that can be found at http://www.cganet.com • See also ISO publication 10083, available by request at OGSI, or online at http://www.iso.ch Effective April 2006...
Page 9: Pressure Swing Adsorption (Psa) Technology
Pressure Swing Adsorption (PSA) Technology The OGSI Oxygen Generator is an on-site oxygen-generating machine capable of producing oxygen on demand in accordance with your requirements. It requires less than 600 Watts of electrical power to control its operation. In effect, it separates the Oxygen (21% of air) from the air it is provided and returns the Nitrogen (78% of air) to the atmosphere through a waste gas muffler.
Page 10: Thru Og-750 Specifications
OG-75 Thru OG-750 Oxygen Generator Specifications Model Oxygen Output Air Required Power *SCF/Hour **NM³/Hour SCF/Minute NM³/Minute Watts/Hour OG-75 0.45 0.58 OG-100 OG-175 0.84 OG-250 1.18 OG-375 1.78 OG-500 13.1 2.31 OG-650 3.10 OG-750 19.7 3.50 Model Dimensions (D x W x H)
Page 11: Required Operating Conditions
Note: Operation outside of this temperature range will not be warranted by OGSI. Feed Air Requirements: The pressure of the incoming feed air supply should be at least 90 PSIG (620 kPa).
Page 12 Pipe scale, oil carryover from the compressor and water vapor should all be minimized to ensure long and trouble-free Oxygen Generator operation. These things can be accomplished with a few regular procedures. First, it is important to recognize that the air compressor is a critical component in the Oxygen Generating process.
Page 13: Typical Setup Diagrams
Typical Setup Diagrams Shown immediately below is a sample drawing that depicts how a typical system could look when connected. Occasionally a user may choose to maintain a liquid or cylinder backup and keep it connected to his system for critical applications. This is a precaution that ensures uninterrupted oxygen flow if the power supply should be lost or the compressor or generator malfunction.
Page 14: Pre-Installation Check
Pre-Installation Check Instructions Although every Oxygen Generator is thoroughly tested and checked before it is shipped from our factory, the following checks are necessary to insure that none of the internal components have been damaged in shipment. This check should take less than five minutes to perform.
Page 15: Sieve Re-Packing Diagram
Sieve Re-packing Diagram Effective April 2006...
Page 16: Type 1 Switch Connection Diagram
Type 1 Switch Connection Diagram Effective April 2006...
Page 17: Type 2 Switch Connection Diagram
Type 2 Switch Connection Diagram Effective April 2006...
Page 18: Setup Instructions
If you do not have a valve on hand at this time, skip this step as one can be installed at this point at a later date. OGSI does stock valves that can be used for this purpose. If you need one you can reach our sales department at (716) 564-5165.
Page 19 5.) Connect Your Oxygen Hose to the Oxygen Pressure Regulator on the Oxygen Storage Tank - If you are using an Oxygen Manifold as in one of the previous drawings, we recommend another ball valve between the hose that is connected to the Oxygen Regulator and the Oxygen Manifold.
Page 20: Safety Precautions
Safety Precautions It is very important that you read the precautions below and make yourself aware of the hazards of oxygen in general. While it can be handled and used very safely it can also be mishandled or applied incorrectly causing dangerous situations. 1.) Oxygen is a fire hazard.
Page 21: Start Up Procedures
Start Up Procedures Prior to attempting to run the Oxygen Generator it is important to check to connections that have been made to it. Make sure that they are all tight as leaks will be detrimental to the generator’s performance and increase your operating expenses. Also be sure to review the ‘Setup Instructions’...
Page 22 4.) If the Storage Tank Pressure is Above 30 PSIG (210 kPa), the Generator Switch can be Immediately Turned to ‘Automatic’ - This should be the case upon arriving in the morning to a system that was properly shut down the evening before or after starting up the first time and having vented the storage tank down to 40 PSIG (280 kPa).
Page 23: Shut Down Procedures
Shut Down Procedures Following these few simple steps will allow you to avoid having to run the generator while venting the storage tank every day or every time you want to use it. 1.) Close the Valve that Allows Oxygen to Flow to Your Manifold or Application -This will keep the storage tank from being depressurized while oxygen is not being used.
Page 24: Troubleshooting Guide
Troubleshooting Guide No Power: 1.) Ensure that power is available from the 110 vac supply 2.) Visually inspect the electrical wiring. Reconnect any loose wires to their appropriately labeled location. Oxygen purity is low: 1.) Check the system for leaks, using a leak testing solution. 2.) Ensure that operating environment is conducive to oxygen generation.
Page 25: Detailed Warning Description
Detailed Warning Description Thermal switch The appropriate thermal overload switch must be Warning reset (by pressing it), and the “Clear Warning” pushbutton (touchscreen option)- must be pressed. Normal operation can then be resumed. Pressure Switch If the pressure switch has tripped, this is an indication Warning of the high pressure transducer failure.
Page 26: Process Flow Schematic
Process Flow Schematic Effective April 2006...
Page 27: Process Flow Schematic:touchscreen Option
Process Flow Schematic: Touchscreen Option Effective April 2006...
Page 28: Process Flow Description
Process Flow Description The normal flow of air through the Oxygen Generating System is shown on the previous 2 pages in the Process Flow Schematic Drawings. As you can see once the incoming air is filtered and compressed to proper pressure it is directed into one of the two sieve beds.
Page 29: External Components Drawing
External Components Drawing Effective April 2006...
Page 30: External Components Description
A hose or pipe should be attached to this fitting. It should be of adequate diameter to supply air at a sufficient pressure and flow rate to feed the generator. OGSI can assist in sizing this line, if necessary.
Page 31 Hose Assembly should be connected to the inlet fitting of the Oxygen Storage Tank that you are using. If the storage tank was purchased from OGSI, it will have an appropriately sized fitting in place for this connection. If the tank was not...
Page 32 Oxygen Regulator - If your storage tank came from OGSI, there will be an Oxygen Regulator, which you should attach to it. It can be used to set the regulated Oxygen pressure out of the storage tank at any level up to 60 PSIG (420 kPa). Please keep in mind that our specification for the maximum oxygen pressure available from a system is 45 PSIG (310 kPa).
Page 33: Internal Components Drawing
Internal Components Drawing Di rect L OGIC Koyo Effective April 2006...
Page 34: Internal Components Description
Internal Component Description Equalization Valve A & B – The Equalization Valves allow gas to pass between the beds at the end of each pressurization cycle in order to increase the efficiency of the machine by reducing the amount air needed to produce a unit of Oxygen. Feed Valve A &...
Page 35 The noise muffler is used to silence the exhaust noise that occurs as a result of the sieve beds rapidly depressurizing to atmospheric pressure, venting their nitrogen. For installations where a lower noise level is required, OGSI offers an optional alternative muffler system that can decrease the emitted noise even further.
Page 36: Touchscreen General Introduction
The user must touch the yellow password area, to get a numeric entry system in which the user must enter their password. After the proper password is entered, the next screen will appear. OGSI will supply you with your own password, specified upon your request.
Page 37 This Final Screen contains all the general information of the generator, and how to contact OGSI. Effective April 2006...
Page 38: Individual Touchscreen Desriptions
USER TOUCH SCREEN SCREEN 1 If you want ENGLISH as your default language, touch anywhere in the Yellow Area. If you want SPANISH as your default language, touch anywhere in the Yellow Area. Once a language has been chosen press this button to advance to the next screen.
Page 39 Numeric Entry. When this appears allowed to change their default enter your numeric password given password, so keep it secure! to you by OGSI. Press Enter to advance to the Next Screen which is the Main Control Screen. Note: That once you have entered the Password Screen you can’t leave until a proper...
Page 40 SCREEN 3 In order to activate the MAIN CONTROL you must chose either CONTINUOUS or AUTOMATIC. Selecting either one will cause the Generator to begin Cycling. To stop the Generator from cycling Press STOP. If CONTINUOUS is selected, the generator will run in Continuous Mode, NOTE: That whenever the in this case the generator will cycle Generator has Power supplied...
Page 41 The Indicator Button; AUTOMATIC MODE represents if AUTOMATIC is selected in the main control. If any other option is selected on the MAIN CONTROL Switch AUTOMATIC MODE will read off. The Indicator Button; STANDBY represents if the Generator is in STANDBY MODE, meaning the Pressure switch has gone active meaning the machine is NOT...
Page 42 Switch simply touch the green area so it reads OFF. Once the area reads OFF and the area is red instead of green you may adjust the Pressure Switch according to OGSI specifications. The Button; SET LOW POINT FOR PRESSURE SWITCH allows you to set the LOW point for your Pressure Switch in Automatic Mode.
Page 43 This alarm is triggered when the machine has run either 4000 and/or 8000 hours. This message will be displayed for 1 cycling hour. So that you will be reminded to change your filters. This Numeric Display; HOURS METER displays the amount of hours that the machine has been running.
Page 44 SCREEN 5 This Meter; REGULATED AIR involves reading your incoming Regulated Air from the compressor. Measurements are in psig, there is both a analog reading and a digital gauge. The digital reading is exact, while the analog meter acts as a real meter.
Page 45 SCREEN 6 The Line Graph; METER GRAPH displays the activity of the Oxygen Purity, Oxygen Pressure, Waste Gas, and Regulated Air every 5 minutes as long as the generator is on. You can clear the readings, and if the generator is not cycling you can stop the graph from reading.
Page 46 SCREEN 7 This particular alarm is triggered when the Regulated Air is below 40 psi. This particular alarm is triggered when the Regulated Air is above 80 psi. This particular alarm is triggered when the Oxygen Pressure is below 40 psi. This particular alarm is triggered when the Oxygen Pressure is above 65 psi.
Page 47 If you want to go back to the Previous Screen/Pressure Screen all you have to do is touch the Blue Area. If you want to advance to the Next Screen/Final Screen all you have to do is touch the Blue Area.
Page 48 SCREEN 8 OGSI model number of your Generator. Serial Number This is the AVERAGE purity of your OGSI Generator. This is the date that your machine was shipped. General Information If you want to go back to the Previous Screen/Alarm Screen all you have to do is touch the Blue Area.
Page 49: Manifold Drawing
Manifold Drawing Effective April 2006...
Page 50: Manifold Operating Procedures
Manifold Operating Procedures Warning: High Pressure Oxygen may present a Hazard. Always follow proper operating procedures, and open valves slowly. Rapid pressurization may result in personal injury. Safety glasses and hearing protection are required when venting oxygen under high pressure. Attaching and filling a K-type cylinder: With all valves initially closed, connect the steel whip between a manifold valve and a cylinder valve, and tighten both connections using a 1 1/8”...
Page 51: Routine Maintenance
Routine Maintenance Instructions Filter Drain: Make sure the filter drain is working properly and not blocked by anything. When the unit first begins to cycle in the morning the filter drain should open for 5 seconds and then for 5-second periods once every 15 minutes. Do this daily. Filter Element Replacement: The filter element provided with the Oxygen Generator must be replaced every six (6) months.
Page 52: Filter Element Replacement Instructions
Filter Element Replacement Instructions 1.) Place the Generator in the ‘Continuous’ Mode 2.) Close the Valve that Supplies Air to the Generator 3.) Press the Manual Filter Drain Push Button until the Regulated Air Pressure Gauge Reads 0 PSIG 4.) Place the Generator in the ‘Off’ Mode 5.) Open the Cabinet Door 6.) Disconnect the Plastic Tube from the Brass Prestolok Fitting holding it in Place.
