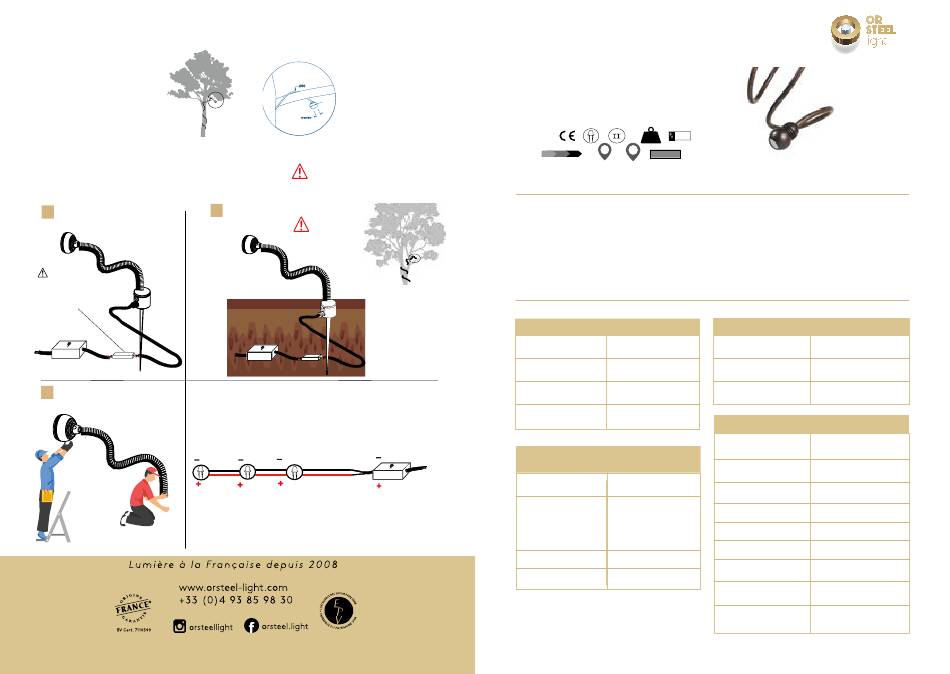

OR STEEL light BELUGE 230VAC Technical Manual

TECHNICAL SHEMATICS

INSTALLATION SHEMATICS

1
1
3
Not submerged
4 4
USE A IP68 CONNECTOR
IP67
Connecteur
IP68
3
Parallel wiring 230VAC
3
All data are given for information purposes only. They do not constitute a contractual commitment on our part and are subject
to change at any time.
40 40
22 22
sortie so rtie
Two people are needed to install the
projector, one person wraps it around
the shaft, while the other holds the
projector head.
2
Never rewind
a projector
already
installed.
3
IP67
Connecteur
IP68
IP68
TECHNICAL MANUAL
BELUGE
230VAC
NGR
0,72
IP68
IK10
A A+ A++
T° max 55°C
The Beluge shaft mounted LED marker light is composed of a head high on a
flexible shaft so that it can be swivelLED towards the object to be lit. Its powerful
LED light makes this marker light perfect for lighting access roads, paths, stairs,
landscaped gardens, small trees... It has been designed with landscape architects
in mind and blends perfectly into all your green spaces.

Electrical features

POWER 2,5W
SUPPLY 230VAC
POWER Included
SUPPLY
WIRING Parallel

Characteristics

lighting techniques

AVERAGE LIFE OF THE 60 000 hours
LED Certificated L90 B10
COLOUR EMISSION 2700K - 3000K -
4000K - 6000K
RED - GREEN
BLUE - AMBER
BEAM 6°-25°-40-115°
INITIAL OUTFLOW 237lm at 3000k

Mechanical characteristics

22x40mm
SIZE
WEIGHT 0.72KG
MATERIAL Brass -Bronze

General characreristics

OPERATING - 20°c ~+ 60°
TEMPERATURE
PROTECTION RAITING IP68
RESISTANCE INDEX IK10
A / A+ / A++
ENERGY CLASS
APPLICANCE CLASS CLASS II
WALKOVER FIXTURE NO
DRIVE-OVER FIXTURE NO
POWER SUPPLY Supply wire 2x1 mm2
CABLES in IP68
PHOTOBIOLOGICAL Risk group I
SAFETY
