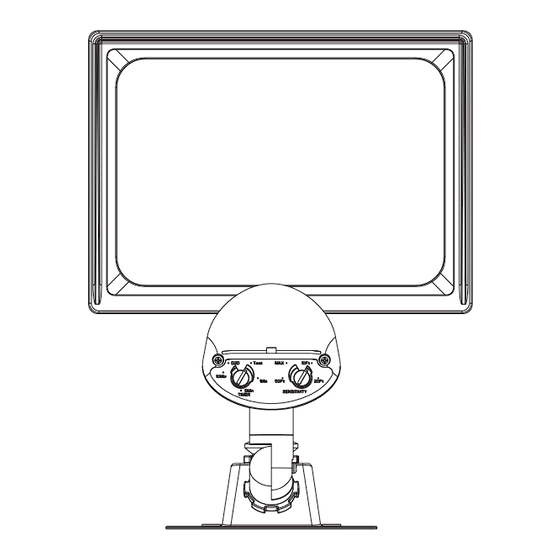

LED Knuckle Motion Sensor Flood Light SKU:HHSL04A1 [Instruction Manual] Thank you for your purchase. Please contact us if you have any questions. We will get back to you within 24 hours. Please attach your Order ID so that we can serve you better.
Page 2
WARNING: PROPOSITION 65 Handling the coated electrical wires of this product can expose you to chemicals including lead, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www. P65Warnings.ca.gov. WARNING Read all of these installation instructions before installing the fixture.
Page 3
8. To prevent rain, use silicone caulk to caulk the top and sides of the canopy and aiming arm. Outlet box (not provided) White neutral wire Ground wire Wire connector Black live wire Outlet box screw OPERATING INSTRUCTIONS The motion sensor on this fixture has a built in Dusk-to-Dawn sensor that automatically disables the motion sensor during daylight hours regardless of motion detection.
Page 4
2.Once the fixture has been tested for proper operation and sensitivity, rotate the TIMER control knob past the “1” setting into the timer settings. The timer settings indicate how long the light stays on after the PIR senses motion. Rotating this knob clockwise raises the stay on time of the motion sensor for up to 10minutes .Rotating the knob counterclockwise shortens the stay on time to as close as 1 minutes (can’t...
Page 5
NOTE: The higher sensitivity level increases the Likelihood of a false activation being triggered. 5.The 180 degree coverage of the motion sensor is measured side to side. Therefore, the sensor will better detect motion across the field of view (side-to-side), rather than motion coming straight at the sensor (in-and-out).
Motion Sensor Motion Sensor Features: Turn-On Light Levels: 10-90 Lux Turn-Off Light Levels: Max 800 Lux Time Delay: 10-300 Seconds (To avoid the influence of other light sources, a delay of 10s-300s is set when the fixture is turned off). Sensitivity: 10FT, 20 FT, 50 FT, 60 FT(MAX)...
NOTE: Manual override mode means that the TIMER button is between one and ten minutes. At night, when the lamp is on, turn off the power and turn it on again within two seconds. The lamp will automatically light up for eight hours during which the Motion Senor will not work.
Page 8
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. Shine a flashlight onto the light 1. Dusk-to-Dawn sensor is sensor. If the security light turns off a shaded area and is fooled into then the fixture is mounted in an area Security light comes on thinking it is nighttime.
- Screw x 4 One Year Limited Warranty EDISHINE warrants this product to be free from defects in material and workmanship for a period of one year from the date of purchase. Warranty is void if damage is caused by misuse or improper installation.
