Summary of Contents for BZBGEAR BG-MV41A

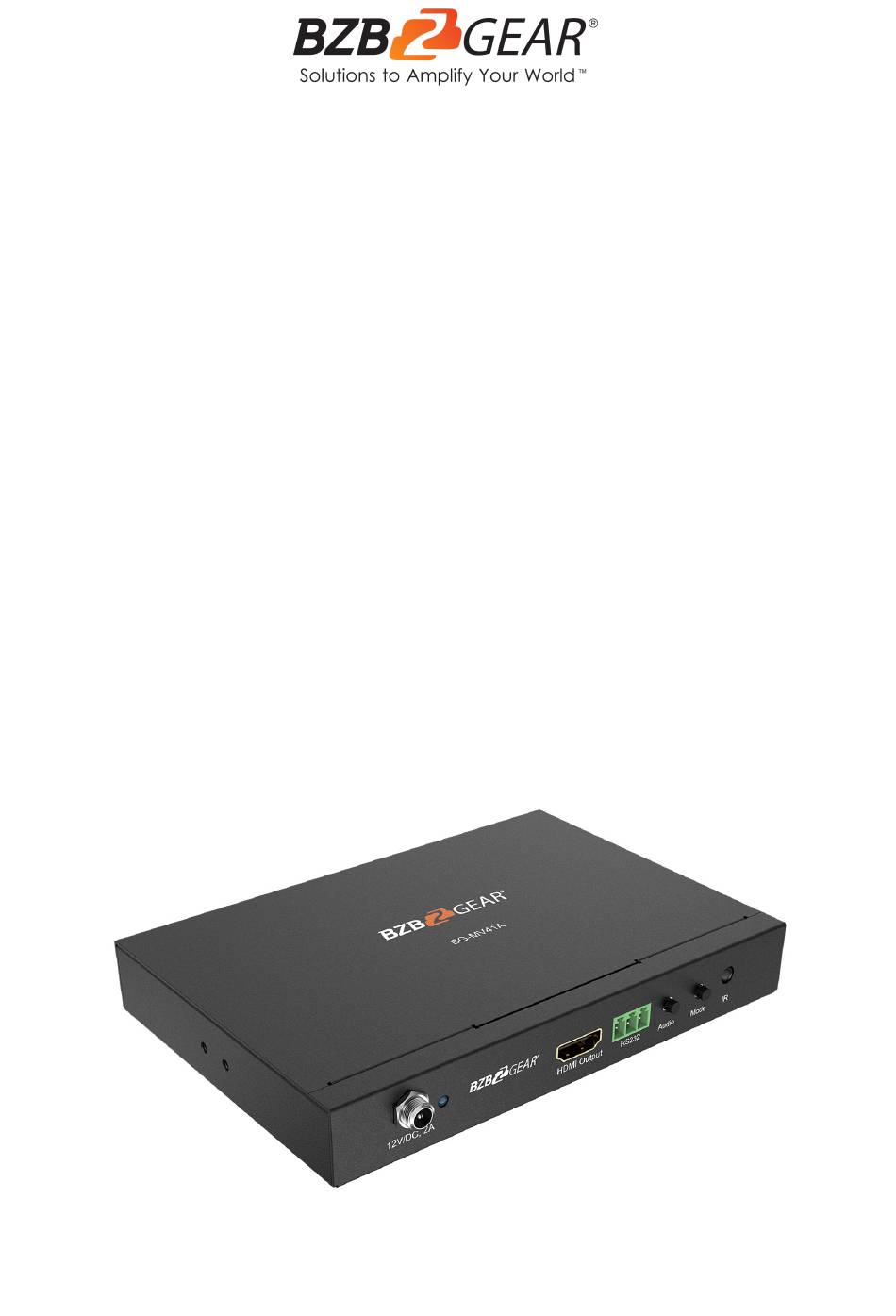

- Page 1 BG-MV41A 4X1 1080P Full HD Multiviewer with Scaler and RS-232 Support User Manual...
- Page 2 BZBGEAR BG-MV41A PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-MV41A PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Remote PC Controller User Guide Connection And Operation Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-MV41A is a 4X1 HDMI quad multiviewer with seamless switching capabilities. It supports four HDMI inputs which can be displayed on one screen in five different multiview modes. As a switcher, it can also seamlessly switch between the four HDMI inputs in full screen mode. -
Page 6: Specifications
BZBGEAR BG-MV41A PRODUCT MANUAL Specifications Signal Inputs/Output Maximum Single Link 1920x1080@60 Range HDMI Input/Output Type A 19 pin Connector Operating Frequency Vertical Frequency Range 50/60Hz Video Amplifier 2.25Gbps Bandwidth Resolutions Input Resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz Output Resolution... -
Page 7: Operation Controls And Functions
BZBGEAR BG-MV41A PRODUCT MANUAL Operation Controls and Functions Front Panel 1. 12V/DC: Plug the 12V DC power supply into the unit and connect the adapter to the AC wall outlet. 2. Power LED: Indicates unit is receiving power when lit. -
Page 8: Ir Remote
Preparation 1. Connect the PC to the multiviewer through a RS232 cable. 2. Power-up the multi-viewer 3. Double click BG-MV41A Quad multiviewer.exe icon to run the program. RS-232: The unit provides a passthrough for RS232 signal. Connect to another RS232 device such as a PC, IP Camera, Creston control panel, Smart Matrix, and so on. - Page 9 BZBGEAR BG-MV41A PRODUCT MANUAL 1. Select the PC COM port that is in use and ensure that your PC’s COM port is the same as the software’s COM port (default COM6). Next, click the “RS232 OFF” button to start the connection.
-
Page 10: Connection And Operation
BZBGEAR BG-MV41A PRODUCT MANUAL Connection And Operation 1. Connect the signal sources such as a Blu-Ray player, game console, audio/video receiver, satellite receivers, or computer equipped with an HDMI output interface. 2. Connect the HDMI output of the HDMI switcher to a display device. -
Page 11: Application Example
BZBGEAR BG-MV41A PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 12: Tech Support
BZBGEAR delivers quality products designed with users in mind. Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form.
