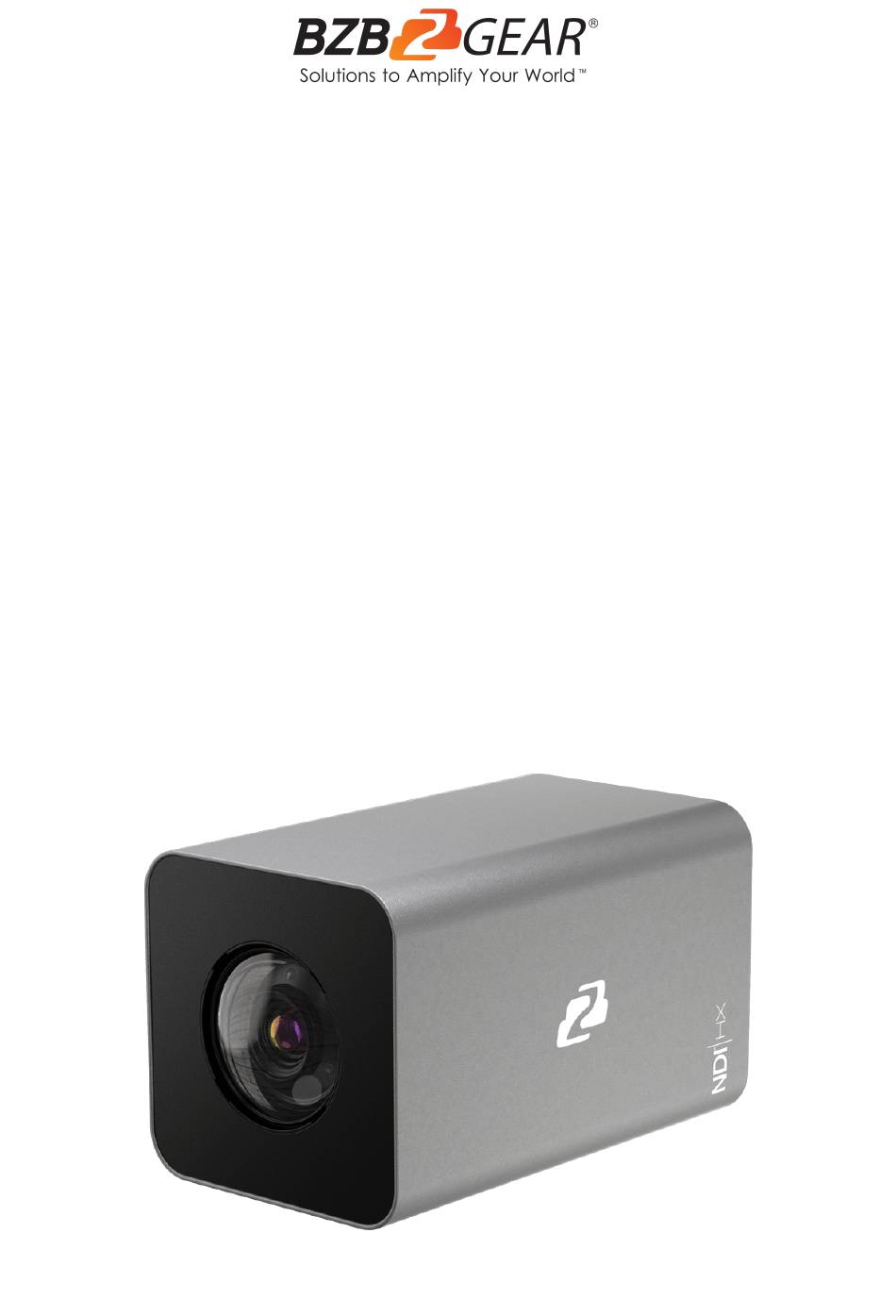

- Page 1 BG-BSHAN 1080P Full HD 20X/30X Zoom HDMI/SDI/IP/NDI|HX Box Camera with Audio Input User Manual...
- Page 2 BZBGEAR BG-BSHAN PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-BSHAN PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Product Interface & Dimensions Menu Setting Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906... -
Page 4: Statement
● Do not use the product beyond the specified temperature, humidity, or power supply specifications. ● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ·... -
Page 5: Introduction
A/V applications including lecture streaming, education, room monitoring, studios, and more. With a 1/2.8” Sony CMOS sensor, the BG-BSHAN series provides crystal clear imaging at resolutions up to 1080p@60Hz. The 20X/30X optical zoom lens allows the camera to capture tight close-ups, even at a distance. -
Page 6: Packing List
BZBGEAR BG-BSHAN PRODUCT MANUAL Packing List ● 1x BG-BSHAN Camera ● 1x 12V/ 2.0 A DC Power Adapter ● 1x User Manual ● 1x Power Cable Specifications Zoom 20X Optical 30X Optical Image Sensor 1/2.8" Exmor CMOS Sensor Effect Pixel 3.27 Megapixel... -
Page 7: Product Interface & Dimensions
BZBGEAR BG-BSHAN PRODUCT MANUAL Product Interface & Dimensions Interface Explain Explain Lens Five-direction Button Audio-IN HDMI Terminal Pin Interface A:RS485+ B:RS485- -+:DC12V Power Interface 3G-SDI Dimensions · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 8: Menu Setting
BZBGEAR BG-BSHAN PRODUCT MANUAL Menu Setting 1. Press and hold the center button for 3 seconds to enter the Main Menu 2. Press Up/Down to navigate the Menu and press the L/R direction buttons to enter/exit sub-settings menus. EXPOSURE Enter the Main Menu, and press Up/Down to select [EXPOSURE Press the Right Button to enter the Sub-menu: ●... - Page 9 BZBGEAR BG-BSHAN PRODUCT MANUAL COLOR Enter Main Menu, navigate to [ COLOR Press Right to enter Sub-menu: ● [ WB MODE ] Options: AUTO, INDOOR, OUTDOOR, ATW, OPW, MANUAL ● [ R GAIN/B GAIN ] When the WB MODE is set to MANUAL the R Gain\B gain values can be independently adjusted.
- Page 10 BZBGEAR BG-BSHAN PRODUCT MANUAL PRIVACY Enter Main Menu, navigate to [PRIVACY , Press Right to enter the Sub-menu: ● [ MASK NO ] Value range: 1-8 ● [ WIDTH ] Value range: 1-255 ● [ HEIGHT ] Value range: 1-255 ●...
- Page 11 (This is the address you will set the camera to). The third piece is the default IP address of your camera. Finally, you will need the IP address of your Default Gateway/Router. All versions of the BZBGEAR BG-BSHAN series cameras have the following default IP address: 192.168.1.162 The computer must be on the same subnet as the camera to connect successfully, therefore the computer must be connected to the 192.168.1.x subnet.
- Page 12 BZBGEAR BG-BSHAN PRODUCT MANUAL • For the following, refer to the diagram below. Select “Use the following IP address." • In the IP address field enter a non-conflicting IP address on the same subnet as the camera. If there is another device with the same IP address you will not be able to connect.
- Page 13 BZBGEAR BG-BSHAN PRODUCT MANUAL NOTE: When you are finished configuring the camera you will need to return to this screen and select “Obtain an IP address automatically" and “Obtain DNS server automatically" to restore internet connectivity to your computer. Also make sure to reconnect any ethernet cables you may have unplugged.
- Page 14 BZBGEAR BG-BSHAN PRODUCT MANUAL • Once you complete the camera setup, repeat the steps on your computer to adjust "Internet Protocol Version 4 (TCP/IPV4) Properties" and select "Obtain IP address automatically" and "Obtain DNS server address automatically." Click OK to close all network-related screens.
- Page 15 BZBGEAR BG-BSHAN PRODUCT MANUAL Configuration Screen From the configuration screen you can set and adjust all the functions and parameters of the camera. System Page The system page contains information regarding the camera, time settings, firmware, and main video output resolution.
- Page 16 BZBGEAR BG-BSHAN PRODUCT MANUAL ONVIF Configuration Tab ONVIF Authentication: Authentication enable, default disable. ONVIF Server Port: default 8554. ONVIF RTSP Authentication: Authentication enable, default disable. RTSP Port: ONVIF RTSP Port, default 8554. NDI Tab NDI Enable: NDI enable, default disable.
- Page 17 BZBGEAR BG-BSHAN PRODUCT MANUAL Image Page On the image page you will find all the image, iris, and focus settings for adjusting the camera's picture. Display Tab- Brightness: Brightness adjustment slider Contrast: Contrast adjustment slider Hue: Hue adjustment slider Saturation: Color saturations adjustment slider...
- Page 18 BZBGEAR BG-BSHAN PRODUCT MANUAL Safety Page From this screen you can modify the login information PTZ Page From this screen you can view and modify the PTZ control settings of the camera. PTZ Address: Set the PTZ control address of the camera...
-
Page 19: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 20: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
