Summary of Contents for BZBGEAR BG-EPTZ-AF

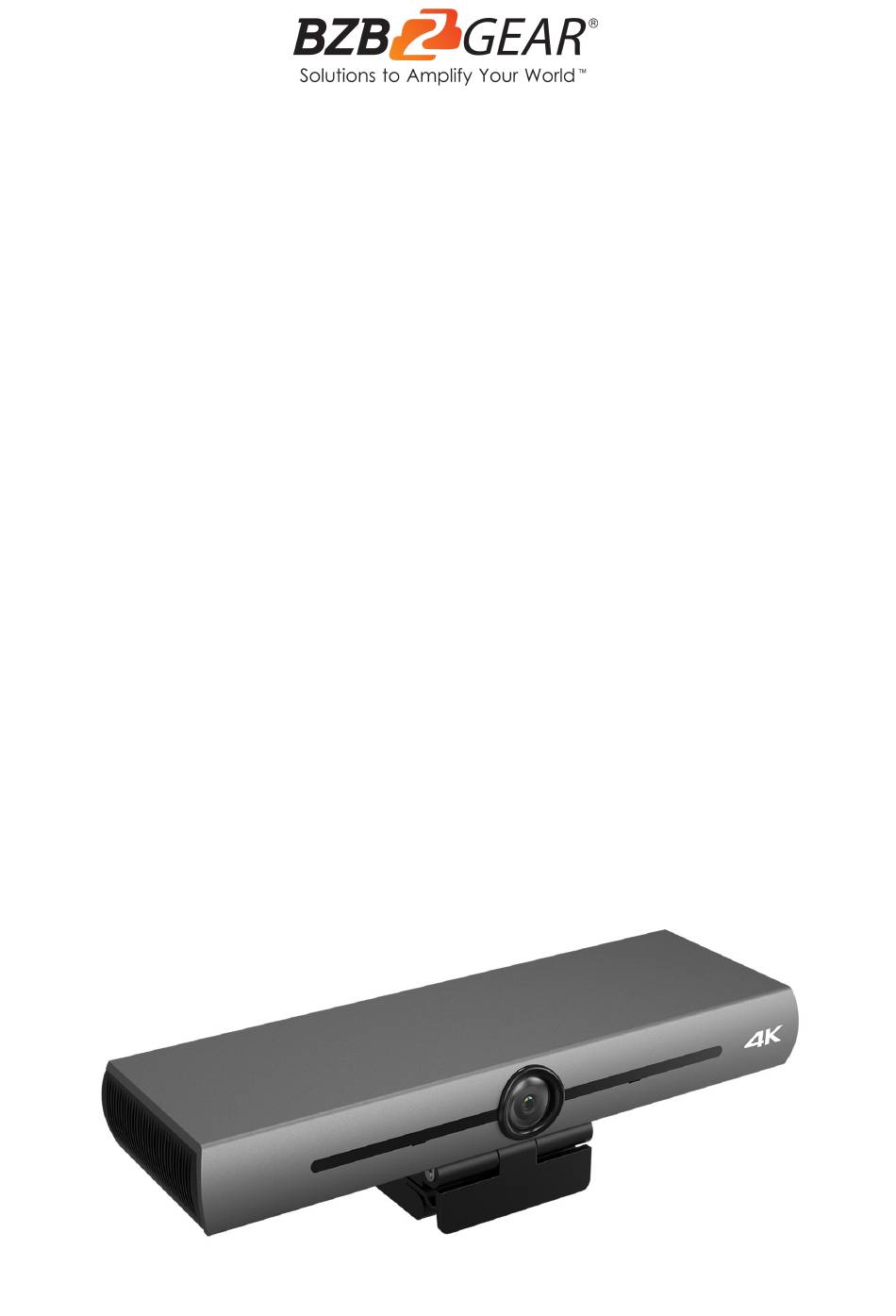

- Page 1 BG-EPTZ-AF 4K UHD USB 3.0 ePTZ Camera with Auto-Framing Function User Manual...
- Page 2 BZBGEAR BG-EPTZ-AF PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EPTZ-AF PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Camera Overview Remote Control Menu Introduction Maintenance and Troubleshooting Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Do not turn the camera head manually. Doing so may result in mechanical damage. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-EPTZ-AF is a 4K UHD ePTZ video conference camera. It is built with AI functionality to automatically detect and frame all participants in a meeting. It also utilizes advanced ISP processing algorithms that provide vivid images with even brightness, strong color layering, high resolutions, and fantastic color rendition. -
Page 6: Technical Specifications
BZBGEAR BG-EPTZ-AF PRODUCT MANUAL Technical Specifications Camera Parameters Image Sensor 1/2.5" High Quality 4K CMOS Sensor Effective Pixels 8.28MP 16:9 Video output port 1x USB 3.0, Type B, support audio output over USB 3.0 Audio input 2 built-in MIC pickups Mainstream: 3840x2160p@30Hz, 1920x1080p@30Hz/25, 1280x720p@30Hz/25, etc. -
Page 7: Camera Overview
BZBGEAR BG-EPTZ-AF PRODUCT MANUAL Camera Overview Camera Interfaces 1. Camera Lens 2. Bracket 3. Built-in MIC 4. Tripod fixing hole 5. Positioning hole 6. USB: Connect the USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom. - Page 8 BZBGEAR BG-EPTZ-AF PRODUCT MANUAL Camera Operation 1. Product Installation: The camera can be installed on an LCD screen, the top of a computer, or placed directly on a desk or tripod. 2. Connect camera via USB cable to computer, video conference terminal, or other USB input device.
-
Page 9: Remote Control
BZBGEAR BG-EPTZ-AF PRODUCT MANUAL Remote Control Keys Instruction 1. Standby Key（not supported currently） The camera enters standby mode if the power button is pressed for 3 seconds. Press and hold power for 3 seconds to wake up the camera and it will perform the... - Page 10 BZBGEAR BG-EPTZ-AF PRODUCT MANUAL 11. Address Setting 【*】+【＃】+【F1】: Camera Address No.1 【*】+【＃】+【F2】: Camera Address No. 2 【*】+【＃】+【F3】: Camera Address No. 3 【*】+【＃】+【F4】: Camera Address No. 4 12. Key Combination Functions 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【9】: Flip switch...
- Page 11 BZBGEAR BG-EPTZ-AF PRODUCT MANUAL 3. Presets 1) Preset setting: to set a preset position, the users should press the “【SET PRESET】” key first and then press the number key 0-9 to set a relative preset, Note: 10 preset positions in total are available by remote controller.
-
Page 12: Menu Introduction
BZBGEAR BG-EPTZ-AF PRODUCT MANUAL Menu Introduction Main Menu When using MJPG/ H.264 / H.265 compression, press 【MENU】key to display the menu, using the up and down arrows to point at or highlight the selected items. Language: press 【← →】key to select... - Page 13 BZBGEAR BG-EPTZ-AF PRODUCT MANUAL Exposure Setting Move the pointer to EXPOSURE in the Main Menu, click the【HOME】and enter the (EXPOSURE SET) as follows: Mode : Auto, Manual, Shutter priority, Iris priority and Brightness priority. EV : On/Off (only available in auto mode)
- Page 14 BZBGEAR BG-EPTZ-AF PRODUCT MANUAL 5. Image Setting Move the pointer to IMAGE in the Menu, click the【HOME】and enter the (IMAGE) as follows, Brightness: 0~14 Contrast: 0~14 Sharpness: 0~15 Flip-H: On/Off Flip-V: On/Off B&W Mode: color, black/white Gamma: default, 0.45, 0.50, 0.55, 0.63 DCI: Dynamic Contrast: Off,1～8...
- Page 15 BZBGEAR BG-EPTZ-AF PRODUCT MANUAL 8. Version Move the pointer to VERSION 9. Restore Default Move the pointer to RESTORE DEFAULT in the Main Menu, click 【HOME】and enter RESTORE DEFAULT as below: Restore default: Yes/No for options. (the video format and color style won’t be...
-
Page 16: Maintenance And Troubleshooting
BZBGEAR BG-EPTZ-AF PRODUCT MANUAL Maintenance and Troubleshooting Camera Maintenance 1) Please disconnect the camera if it is not used for a long time. 2) Use soft cloth or tissue to clean the camera cover. 3) Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed. -
Page 17: Application Example
BZBGEAR BG-EPTZ-AF PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 18: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 19: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. · ·... -
Page 20: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
