Summary of Contents for Exyz printing da Vinci Jr.2.0 Mix

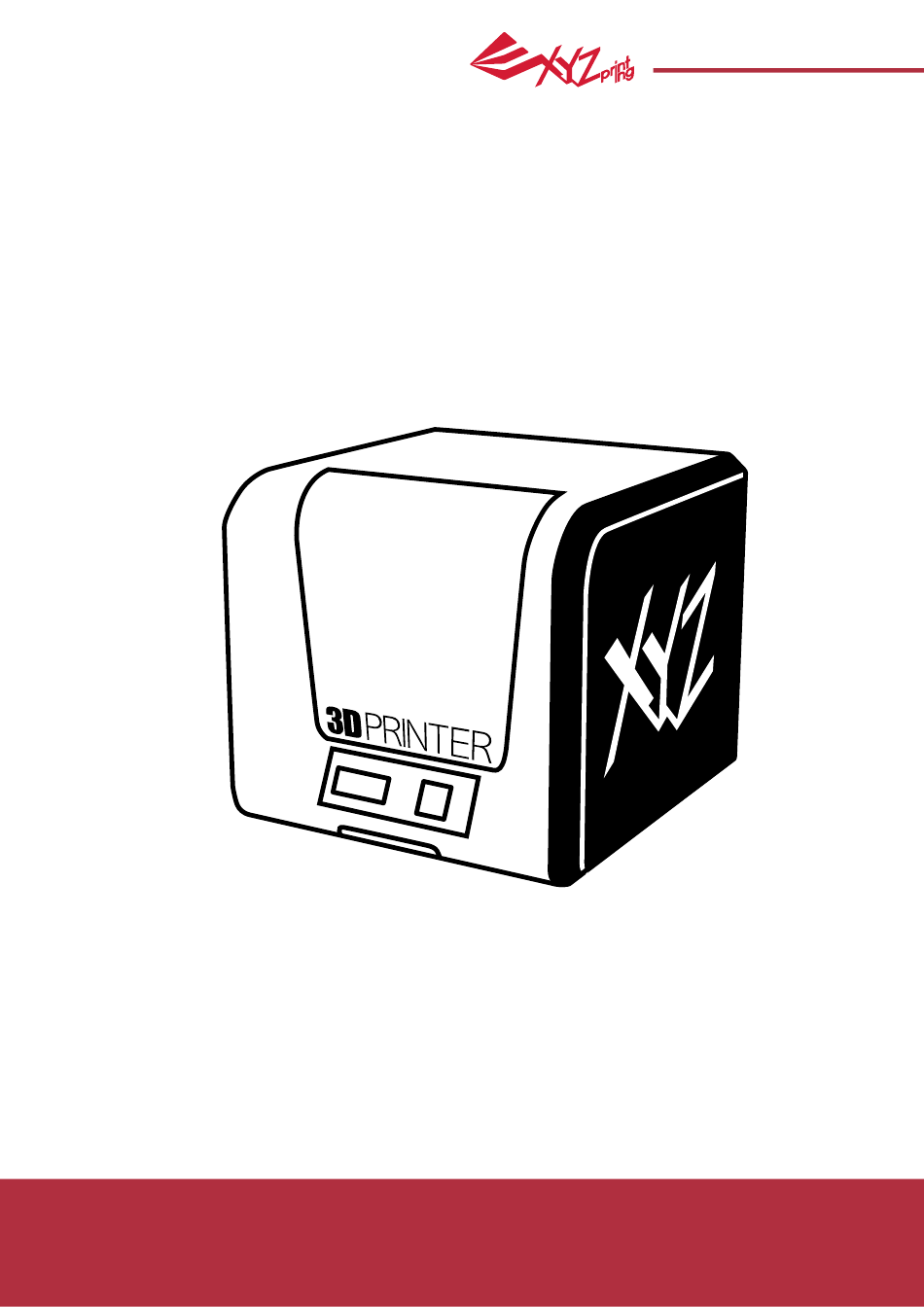

- Page 1 Vinci Jr.2.0 Mix July 2016 da Vinci Jr. 2.0 Mix 3D Printer da Vinci Jr. 2.0 Mix User Manual...
- Page 2 Vinci Jr.2.0 Mix July 2016 The purpose of this user manual is to help users understand and use the da Vinci Jr. 2.0 Mix 3D printer correctly. It contains the operating instructions, maintenance information and application skills of the da Vinci Jr. 2.0 Mix 3D printer. To learn more about the latest news of the da Vinci Jr.
-
Page 3: Accessory Checklist
Vinci Jr.2.0 Mix July 2016 Product Overview G: SD card port (Storage format: FAT32 Systems are compatible with SDHC cards up to 32GB in size.) H: Control and display panel I: Front cover A: Filament movement area J:Feed module 2... -
Page 4: Unpacking The Product
Vinci Jr.2.0 Mix July 2016 Open the box and remove the Remove the plastic bag and accessories and cushions. the tape. Remove all fixing tape and the Remove the securing styrofoam and fixing tape on the print cushion between print bed and bed. -
Page 5: Installing The Accessories
Vinci Jr.2.0 Mix July 2016 Note: Please follow these steps and ensure that the guide tube and extruder are properly installed before starating the "LOAD FILAMENT" function. Failure to install the guide tube will disrupt filament feed. Install the Filament Guide Tube and Extruder... -
Page 6: Load Filament
Vinci Jr.2.0 Mix July 2016 Chang Spool First retrieve the filament spool to install the filament Take out and separate the filament spool spool axle ring. axle ring into its two components. Install the sensor chip. Please pay attention to the position Insert the filament spool axle ring components to of the installation holes on the chip. -
Page 7: Unload Filament
Vinci Jr.2.0 Mix July 2016 Auto-loading Filament Select "UTILITIES" > "CHANGE SPOOL" > "LOAD FILAMENT". Jr. Mix UTILITIES CHANGE SPOOL BUILD (SD CARD) CHANGE SPOOL LOAD FILAMENT UTILITIES HOME AXES UNLOAD FILAMENT SETTINGS JOG MODE Wait for the screen to show After installing both filaments, press "OK"... -
Page 8: Product Features
Vinci Jr.2.0 Mix July 2016 About the da Vinci junior series 3D printer The da Vinci junior series 3D printer (da Vinci Jr.) is a brand new product from XYZprinting that is dedicated to the 3D printer market. Its intricate and colorful exterior as well as its high resolution printing specifications are set to make it the new favorite for families and home hobbyists. -
Page 9: Button Instructions
Vinci Jr.2.0 Mix July 2016 Button instructions After switching on the printer's power, the user may use the display panel at the front of the printer to understand its status and usage data. The functional buttons on the right allow the user to perform the relevant operations. - Page 10 Vinci Jr.2.0 Mix July 2016 Home Menu Top Menu Sub Menu Page CHANGE SPOOL LOAD FILAMENT UNLOAD FILAMENT HOME AXES JOG MODE UTILITIES BUILD FROM CARD CALIBRATE CLEAN NOZZLE Z OFFSET BUZZER LANGUAGE ENERGY SAVE SETTINGS AUTO LEVEL RESTORE DEFAULT...
- Page 11 Vinci Jr.2.0 Mix July 2016 HOME AXES “HOME AXES” moves the extruder to the lower left corner, The "Y-AXIS" print bed will move to the back. To home axes: home axes are you sure Select “YES” to proceed. JOG MODE “JOG MODE”...
- Page 12 Vinci Jr.2.0 Mix July 2016 CALIBRATE Calibration is enabled for this new extruder module. Please update printer firmware via XYZware before using the new extruder. 1. Active print bed calibration by selecting “UTILITIES”>”CALIBRATE”>”YES” on the screen. 2. Press the detection head on the right side of the print head according to the instruction of screen message, followed by pressing OK.
-
Page 13: Preparation Of Tools
Vinci Jr.2.0 Mix July 2016 Note: The machine can be turned off only when the cooling fan of the print head stops running after the print is completed. Turning off the power directly may clog the print head. References: Please refer to UTILITIES>CLEAN NOZZLE... - Page 14 Vinci Jr.2.0 Mix July 2016 CLEAN NOZZLE Over time, carbon deposits or filament dust buildup in the nozzle may decrease its performance. It is advised to clean the nozzle after every time of printing. Also, if the print bed calibration shows “ERR” or if there is any residue on your prints, you may want to try to clean the nozzle.
- Page 15 Vinci Jr.2.0 Mix July 2016 BUZZER When the buzzer is turned on, the printer will output an audible signal when a button is pressed, print job is finished, or issue is detected. Buzzer is turned on by default. To switch off the buzzer: buzzer Select “OFF”...
- Page 16 Vinci Jr.2.0 Mix July 2016 STATISTICS In “STATISTICS”, you can check the accumulated print time and last print time. statistics lifetime 00006h last time 00h34m to return SYSTEM VERSION Firmware version is shown here. For stable printing performance, it is advised to keep the firmware up to date. To check for firmware updates, please go to XYZscan/XYZware.
- Page 17 Vinci Jr.2.0 Mix July 2016 PRINTING This is the unique multicolor function mode of da Vinci Jr. 2.0 Mix. You can choose from "Multicolor Mode" and "Blending Mode". First, open the XYZware software and then select the printer da Vinci Jr. 2.0 Mix in the settings.
-
Page 18: Wireless Printing
Vinci Jr.2.0 Mix July 2016 Wireless printing This chapter introduces how to carry out the setting correctly and to operate the wireless printing function. To understand if your product is designed with wireless printing function, please refer to the table below. - Page 19 Vinci Jr.2.0 Mix July 2016 3. Please enter the printer name and then press “SCAN” to scroll down the menu for obtaining the exact Wireless Access Point related information. The description sample will use XYZprinting as the name of Wireless Access Point.
-
Page 20: Specifications
Vinci Jr.2.0 Mix July 2016 da Vinci Junior 2.0 Mix 3D Printer Model Name da Vinci Junior 2.0 Mix 3D Printer Dimensions 16.54 x 16.93 x 14.96 inches （ 420 x 430 x 380 mm ） Weight 26.46 lbs (12kg) Display 2.6”... -
Page 21: Support Details
Vinci Jr.2.0 Mix July 2016 The troubleshooting instruction may guide you to fix the problem. If any error persists, please contact customer service. When an error occurs, please refer to the service code shown on the printer and/or in the software, and check the suggestions below for troubleshooting. -
Page 22: Term Of Service
Vinci Jr.2.0 Mix Other Information July 2016 1. This product is guaranteed for specific period from the purchase date against any breakdown within the scope of proper and reasonable usage of their product as defined by XYZ printing. Presentation of warranty card with the product will ensure free service and repair of inherent faults in the product within the warranty period. - Page 23 Vinci Jr.2.0 Mix July 2016 Warning ● Do not let children operate this device without adult supervision. Electric shock hazard. Moving pars can cause serious injury. ● Do not place the printer on an unbalanced or unstable surface. Printer may fall or tumble causing harm and/or injury.
