U s e r M a n u a l
RVM7
7" TFT Colour Monitor
PRODUCT FEATURES:
- 7" TFT Colour Monitor
- Brightness/Contrast/Colour Adjustment
- Language Adjustment
- 16:9/4:3 Viewing Option
- 4 Position Screen Setting
- PAL/NTSC
- 100:1 Contrast Ratio
- Pixels: 480 (W) RGB 234 (H)
- Bracket Stand or Flush Mounting Options
- Infra-Red Remote Control
- Operating Current = 320mA @ 13.8V
- Standby Current = 56mA @ 13.8V
- Power Consumption = 4.5W
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any tech-
nical issues. With this in mind, when contacting Connects2, try to provide as much Infor-
mation as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
Advertisement
Table of Contents
Summary of Contents for Connects2Vision RVM7
- Page 1 U s e r M a n u a l RVM7 7” TFT Colour Monitor PRODUCT FEATURES: - 7” TFT Colour Monitor - Brightness/Contrast/Colour Adjustment - Language Adjustment - 16:9/4:3 Viewing Option - 4 Position Screen Setting - PAL/NTSC - 100:1 Contrast Ratio...

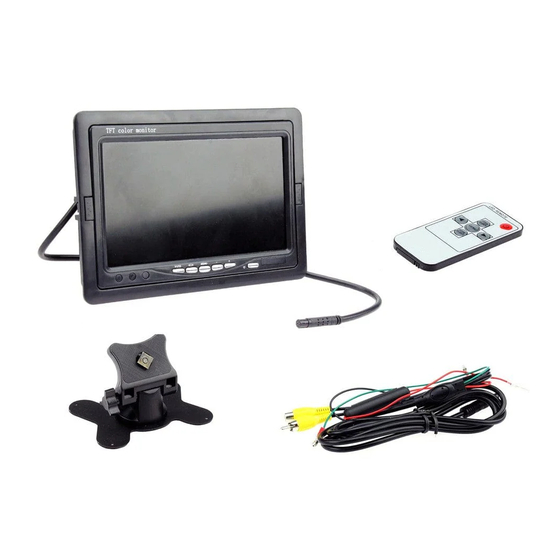

- Page 2 Connects2Vision CONTENTS - 7” TFT Colour Monitor - Infra-Red Remote Control - Adjustable Dash Mount Bracket & Flush Mount Holder - 2x Video Input Cable w/ Auto-Switching Functionality INSTALLATION 1. Connect the main harness to the monitor. 2. Connect the AV1 input (designated by default as the front camera input) to the front-facing camera 3.
