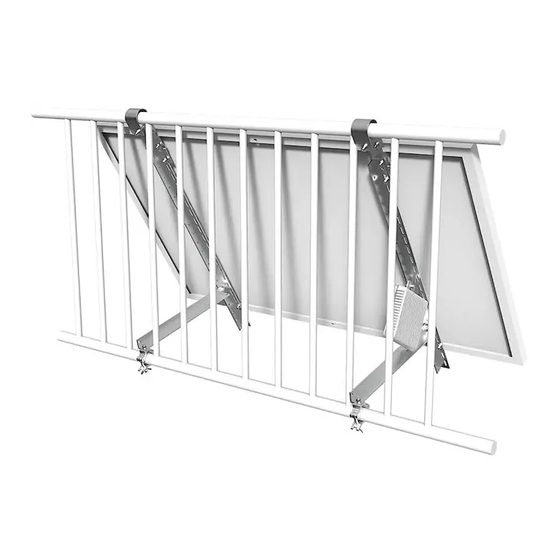

- Page 1 BALCONY SOLAR PANEL MOUNTING SYSTEM Alu PV balcony mount (adjustable) Art.-Nr. :5410007...
-
Page 2: Dimension(Mm)
L-Bracket 1040 1040 Ø8.5 J-Bracket 69.80 Ø8.5 Rail connector Ø8.5 Ø8.5 Ø10.5 Ø10.5 M8*25 Hexagonal Bolt G-Bracket Ø8 M8*90 Hexagonal Bolt M10*30 Hexagonal Bolt Ø8 Ø10 Copyright© 2022 SolarV GmbH All rights reserved. - Page 3 Tools(not incl.) Copyright© 2022 SolarV GmbH All rights reserved. M8 M10 Allen key Cordless srewdriver Use M8*25 bolt to connect J-bracket and L- Bracket Copyright© 2022 SolarV GmbH All rights reserved.
- Page 4 Use M8*25 boltto connect short rail connector and long L- bracket Use M10*30 bolt to connect the short rail connector and G-bracket. Copyright© 2022 SolarV GmbH All rights reserved.
- Page 5 Repeat steps 1 to 3 to install the other bracket Connect the J-bracket with solar panel Copyright© 2022 SolarV GmbH All rights reserved.
- Page 6 Use M8*25 to connect J-bracket and solar panel Use M8*25 to connect L- bracket and solar panel Copyright© 2022 SolarV GmbH All rights reserved.
- Page 7 Repeat Step 5-Step 7 and mount all the brackets onto the solar panel Mount the J-bracket on the balcony rail Use long bolt and nut M8*90 to connect the J-bracket and balcony rail Copyright© 2022 SolarV GmbH All rights reserved.
- Page 8 Use G-bracket to connect the balcony rail and rail connector Tighten all screws and bolts to secure the system Copyright© 2022 SolarV GmbH All rights reserved.
- Page 9 J-bracket micro-inverter and balcony rail Copyright© 2022 SolarV GmbH All rights reserved.
- Page 10 SolarV GmbH info@solarv.de www.solarv.de Copyright© 2022 SolarV GmbH All rights reserved.
