Summary of Contents for roblight FL 1100 XT C DMX

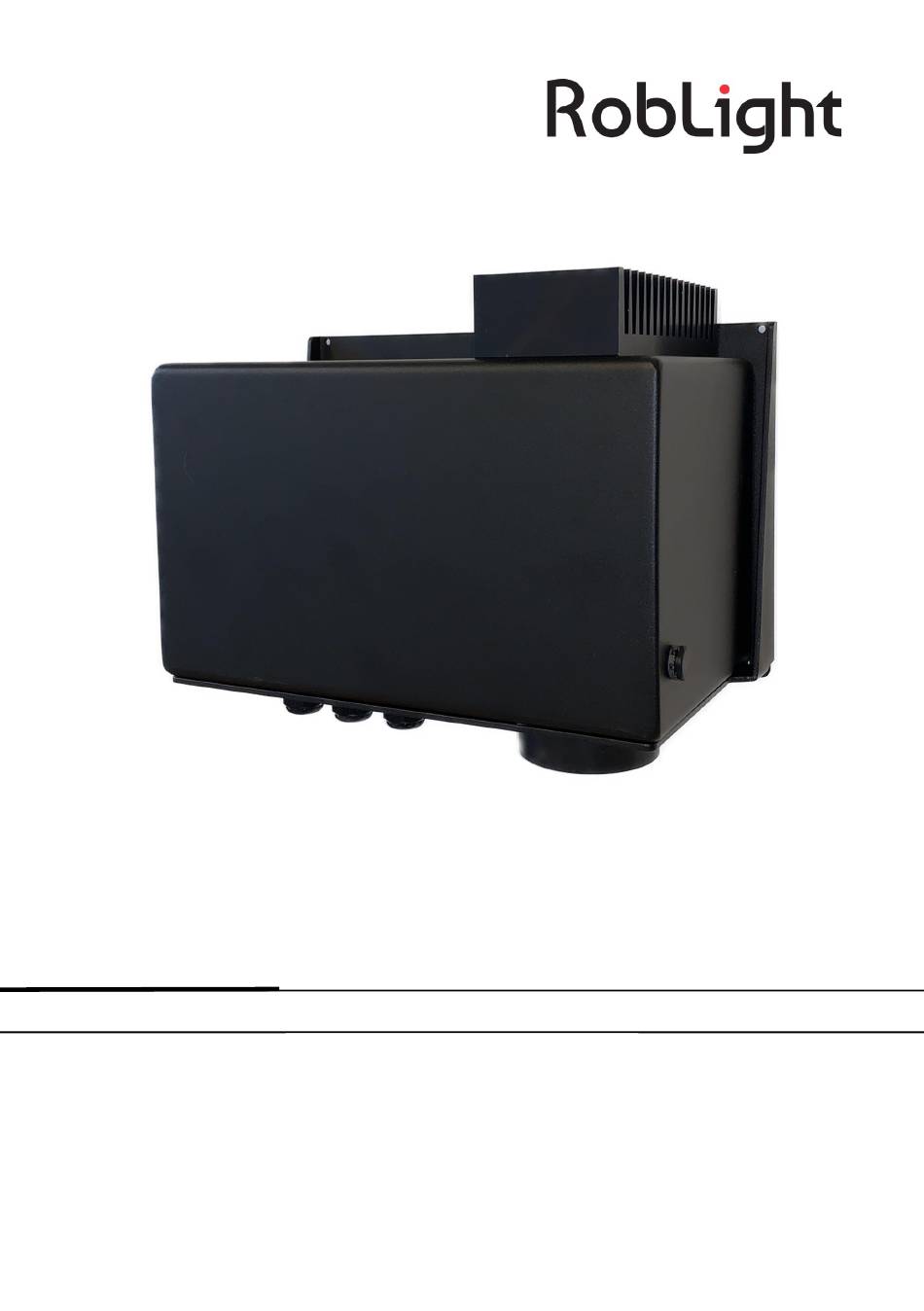

- Page 1 FL 1100 XT C DMX User manual...
-
Page 2: Installation Instructions
Introduction The RobLight FL 1100 XT C DMX light generator is designed for outdoor use with glass and PMMA fibre harness Ø28 mm. It can be used in all installations set-ups, including closed compartments if limits for max ambient temperature are followed. -
Page 3: Warranty Label
The extremely high intensity will increase the temperature in the material. Using non RobLight harnesses in this light generator is at its own risk. Ensure that the polyconnector is undamaged and clean before using the light gener- ator in retrofit RobLight installations. -
Page 4: Light Source
Technical data General Light port Ø9/Ø28 mm Fibre type PMMA or glass Material Aluminium, POM and other Dimensions (L x H x W) 320 x 180 x 250 mm Weight (total) 6000 g Safety CE, RoHS Environmental Protection rating IP 65 Thermal protection Automatic resettable Cooling... - Page 5 Installation instructions a) Remove cap from the light port b) Check that the end face of the polyconnector is clean and undamaged c) Insert the poly connector fully in the light port d) Remove the airvent, tighten the screw inside the light port and mount the airvent e) Ensure all installation and ventilation requirements are met WARNING!
-
Page 6: Vertical Mounting
Vertical mounting This light generator should not be mounted with light port downwards. At high am- bient temperature the operational lifetime of the internal components and harness will be reduced. Mounting Attach to surface using three screws in the baseplate holes. Be aware that the total weight of this system is more than 3.3 kg + the downforce from the fibre harness. - Page 7 Closed compartments MAX AMBIENT TEMPERATURE 40°C. Recommendations: (should always be tested in a mock up) Secure enough space to allow natural heat transmission through surfaces. Surfaces should not be insulated. Cooling air for the polyconnector can not be obstructed in any way, as it is essential to avoid damage to the harness.
- Page 8 Accessories / Spare part Part name Description Item no. To change the light Adapter Ø28/Ø9 port from Ø28 to 7800 0130 Ø9 mm DMX 512 Sunlite con- 0160 0302 trol unit USB Factory DMX address- 9903 0071 DMX control unit pro- 9903 0070 gramming per hour...
- Page 9 This light source is not supposed to be otherwise serviced, if used as recommended. The fan can be replaced using standard tools. A replacement kit with guide is avail- able. If the product is not performing as specified, use the troubleshooting guide. If you need further assistance, please contact RobLight.
-
Page 10: Application Notes
Application notes The light generator is an electronic device and must be handled accordingly. The different components will have different factors influencing the practical lifetime. The most important factor for this system is the condition of the surrounding air (temperature and cleanliness). The data we have stated about or and the expected lifetime of the key components, are at the temperatures that the suppliers have performed during their standardized tests in clean environments. -
Page 11: Troubleshooting
Remove dirt and dust from light gene- light generator Light switches ing system. rator. on and off Check the active Remove dirt and dust from the light cooling system generator If problems are not solved using this guide, please contact RobLight A/S. - Page 12 RobLight A/S, Nordhavnsvej 1A, DK-9900 Frederikshavn T: +45 9244 4888, E: info@rob-light.com www.rob-light.com RobLight accepts no responsibility for possible errors in catalogues, brochures and other printed material. RobLight reserves the right to alter or discontinue its products without notice. © 2019 RobLight A/S...
