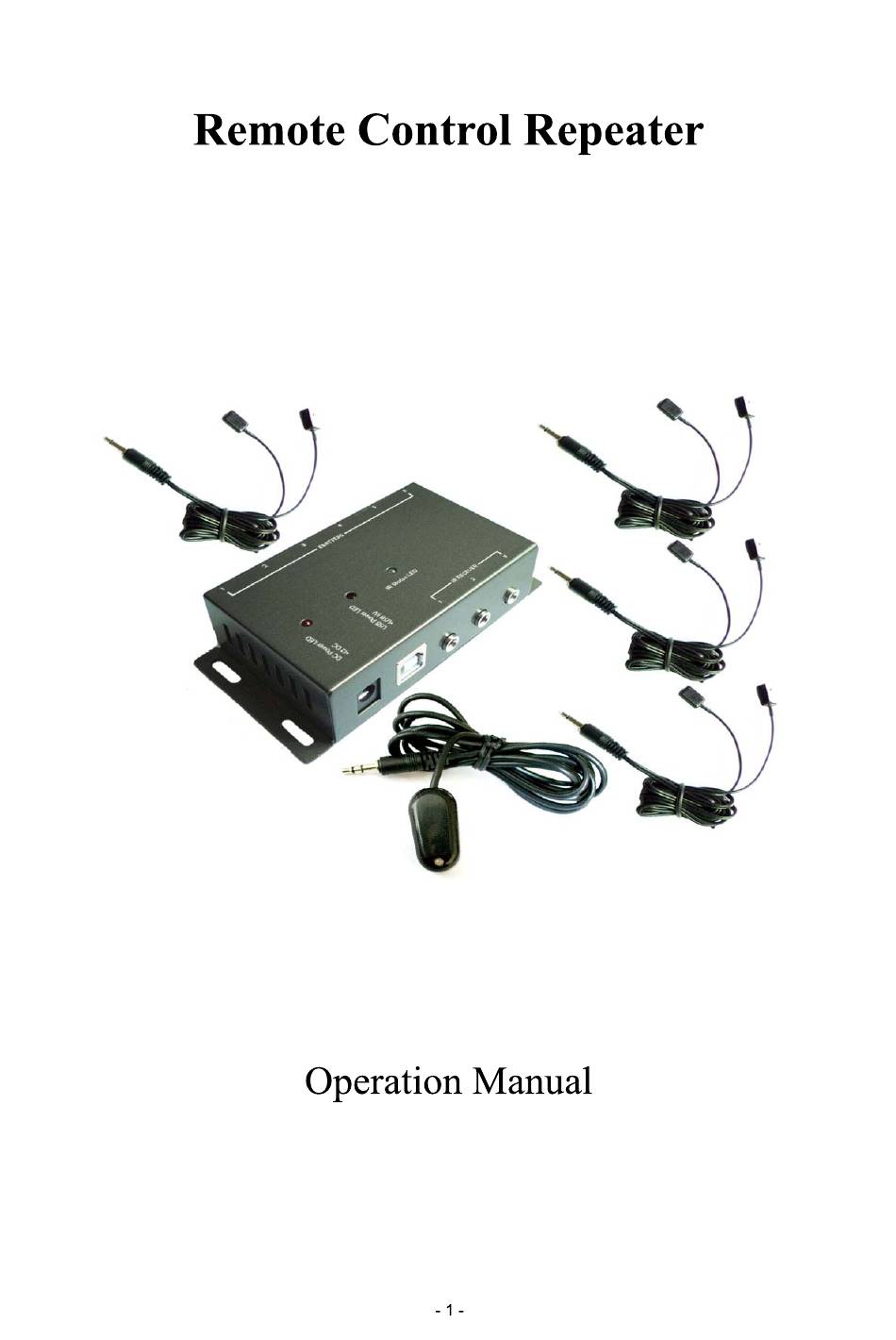

- Page 2 Table of Contents Cover ……………………………………………………………..1 Table of Contents ………………………………………………….2 Functions ………………………………………………….……….3 Features ……………………………………………………………3 Connecting the Remote Control Repeater... ……………………….4 Specifications………………………………………………………6 Package Contents ………………………………………………….7 - 2 -...
- Page 3 Remote Control Repeater hank you for purchasing this Remote Control Repeater. We recommend that you read this manual thoroughly and retain for future reference. Function: The Remote Control Repeater is a system that repeats the signal of your audio/video device remote control. You can have your audio/video equipment in a closed closet and use this system to connect to the equipment, so you may be able to use your remote control(S) outside of the closed space.
- Page 4 Connecting the Remote Control Repeater Note: Careful consideration must be used when placing the IR Receiver near a Plasma Display. Plasma Displays emit IR frequencies during use and may cause interference. 1. Take the Mini IR Receiver(up to three) and connect it to the IR Receiver input jacks labeled 1-3 on the IR Connecting Block.
- Page 5 3. Place the emitters on the source equipment. 4. Connect the 12VDC/ 5V USB Power Supply to the power jack on the IR Connecting Block and plug the Power Supply in the wall outlet. The LED will illuminate with a red light letting you know power is connected.
- Page 6 Specifications Receive Frequency Range 34 KHZ to 60KHZ Transmit Frequencies 38 KHZ & 56KHZ Receive Range 8 Meter Emitter Range 5-10CM Power 12VDC,30mA MAX. Dimensions (IR Receiver) 31(L)×17(W)×13(H)mm (IR Emitters) 13L)×8(W)×5.5(H)mm (IR Connecting Block) 90(L)×55(W)×26(H)mm Cord Length (IR Receiver) 1.5 Meter (IR Emitters) 3 Meter Connector Type...
