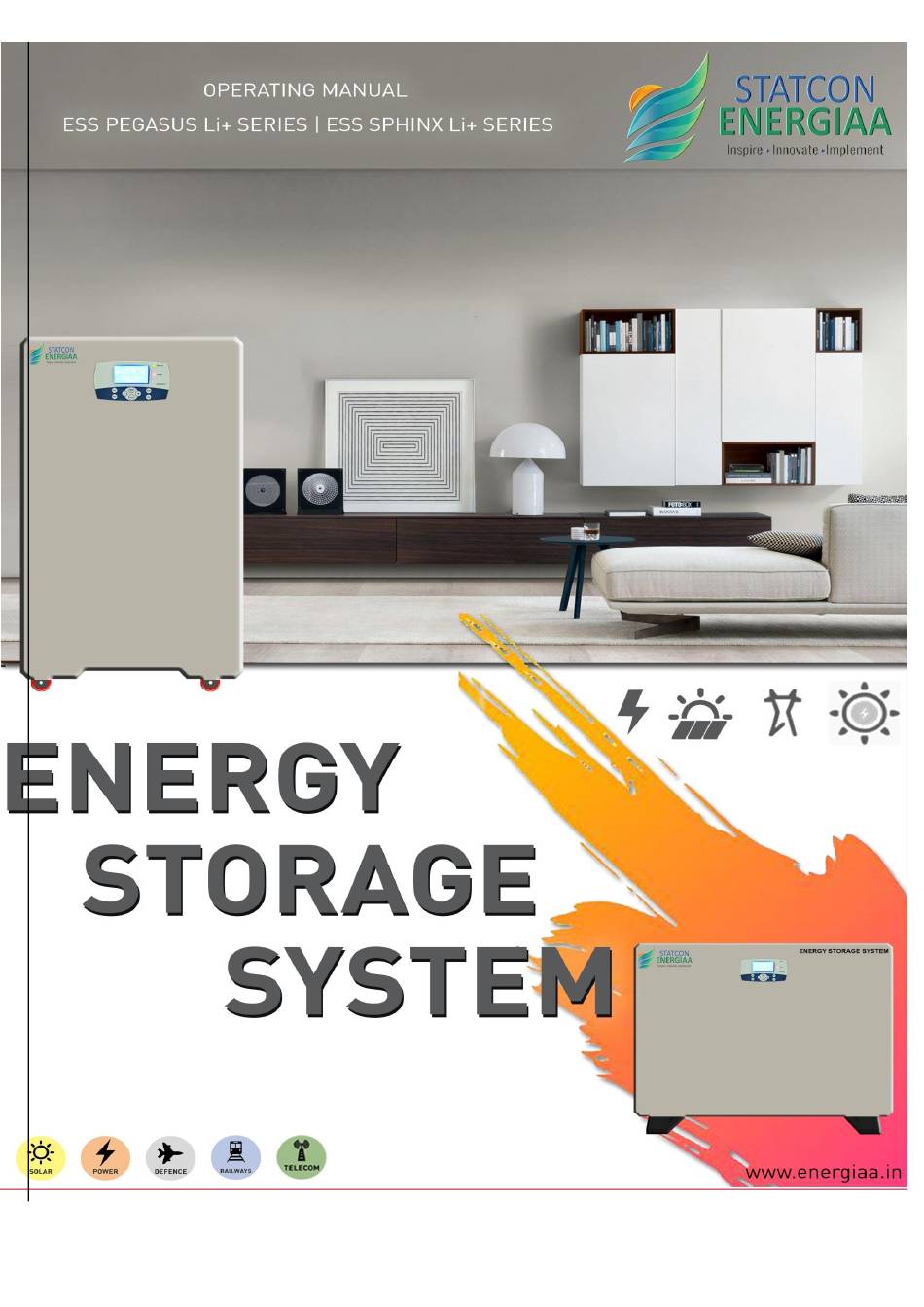

Summary of Contents for STATCON ENERGIAA ESS PEGASUS Li+ Series
-
Page 2: Table Of Contents
INDEX I. PRODUCT DESCRIPTION ......................... 1 ENERGY STORAGE SYSTEM (ESS) ..........................1 BATTERY ..................................... 2 PACKAGE CONTENTS ..............................2 WORKING OF SYSTEM ..............................2 II. PRODUCT NOMENCLATURE ......................3 III. PRODUCT SCHEMATIC ......................3 SAFETY GUIDELINES ....................... 4 SYMBOL INDICATIONS ..............................4 GENERAL SAFETY RULES ............................. -
Page 3: Battery
This would involve uninterrupted running of all household loads along with air conditioner (upto 1.5 ton) during multiple power cuts throughout the day. These machines are a perfect fit for low maintenance and efficient supply for residential usage. The ESS under the series name of PEGASUS Li+ & SPHINX Li+ is 1-phase system of 3 to 5 KVA with 48 V Lithium battery. -
Page 4: Product Nomenclature
ENERGY FLOW DIAGRAM PRODUCT NOMENCLATURE ESS-PGSLI-048-003K-1P-003M 1-11-C02-100AH SYSTEM TYPE ESS-PGSLI ESS - PEGASUS LITHIUM BATTERY VOLTAGE 48 V KVA RATING OF INVERTER 003K 3KVA PHASE SINGLE PHASE kWp RATING OF MPPT CHARGER 003M 3KW SOLAR CHARGE CONTROLLER NUMBER OF MPPT CHANNEL SINGLE MPPT CHANNEL LOAD TYPE EXTENDED OVERLOADS... -
Page 5: Safety Guidelines
PEGASUS Li+ FRONT VIEW SPHINX Li+ SAFETY GUIDELINES 1. SYMBOL INDICATIONS Warning! Electrical Shock Danger Electrical Hazard. Hazard. Do Not Open. No User Turn Off Power Before Serviceable Parts Inside. Refer Servicing. Servicing To Qualified Service Personnel. Danger. Indicates A Hazardous Caution! Risk Of Electric Situation Which, If Avoided, Will Shock!! -
Page 6: Precautions During Installation & Repair
To disconnect the ESS, turn off the MCBs/switch/terminals on the ESS & remove the battery fuse holder. Use the ESS according to our instructions for operation. Metal bracelets, rings and other metal objects should be removed before touching the ESS to avoid contact with electricity carrying items. -
Page 7: Cable Connections
The room where this machine is placed should be of stationary nature with firm walls, base and roof. It should be well ventilated with a proper mechanism of fresh air entry and exhaust. Air conditioned room will ensure a more reliable functioning of this machine. -
Page 8: Earthing
TERMINAL CONNECTIONS All terminals provided are of copper material only. Hence lugs used should be of copper only for homogeneity of contact. In case of Aluminium cable, bimetallic lugs are mandatory. Use proper spanners to tighten the nut/ bolts. Ensure that once tightened, all the lugs should be vertical. The conductors are carrying high currents and voltages;... -
Page 9: Commissioning
EARTHING For earthing of our solar power energy system, connect the earth wire from PV panels and ESS to the common earthing of house. Inverter ground should not be connected to the PV structure ground or the lightening arrestor ground. COMMISSIONING Once the unit has been firmly secured and all the incoming/ outgoing cables properly connected, this machine is ready for being powered up. -
Page 10: First Time Energizing The Machine
2. FIRST TIME ENERGIZING THE MACHINE Now turn on the battery MCB and with a pause of 1 second the machine should become live. There should be a sound of contactor and display should lit up with possibly a buzzer sound. ... -
Page 11: Display Keypad Unit
II. Within 15 seconds the inverter should start providing AC 230V/ 415V output on the load terminals. The load circuit breaker should be in OFF condition at this moment. III. Ensure that initially only a couple of loads such as bulbs/ CFL etc are connected. Turn on the Load circuit breaker and check that the connected loads are getting powered up. -
Page 12: Led Description
For internal use BOOST TEST For internal use Turn off Alarm Mute/ Clear Fault/ Latch Reset Battery RESET 2. LED DESCRIPTION LABEL INDICATION MEANINGS Green: Mains voltage is present within acceptable limits MAINS ON Green No Flash: Normal condition : Abnormal condition occurs NOTE: Light will flash on and a buzzer will sound. - Page 13 The first line shows the mode of operation in which the machine is at that moment of time. The operations are mains connected, Anti-Islanding, Standalone, boost charging, float Charge, Bulk charge, charge absorption, Invrt + Sync and System off. The details and understanding of all these modes have been explained later on. ...
- Page 14 Load AC kw Total power consumed by load Total power delivered by Inverter section Invert. AC kw 5. CURRENT SCREEN 6. POWER SCREEN TEXT DISPLAYED INFERRED PARAMETER Load Max kw Maximum overall kW load running on three phase. Load Avg kw Average load running on all three phases and it will update in every 5 Minutes Mains Max kw Maximum kW Power is drawing from Grid/Mains.
- Page 15 The settings change should be performed by authorized personnel only and whenever any such changes are made, manufacturer should be intimated about this. In case of faulty settings, the warranty of the machine may be void.These KEYS if pressed together for 5 seconds give access to the settings inside the DKU: On entering configuration menu, following settings are accessible….
- Page 16 PRESS + TO NAVIGATE AHEAD # Press –TO GO BACK #Each of these may or may not be password protected, which can be changed whenever required. Each of these contains a bunch of set points which can be changed as per the requirement. Page 15 of 33...
- Page 17 SYSTEM CONFIGURATION 1. FLOAT & BOOST CHARGING SETUP These settings are not required for ESS type of Systems 2. ALARM & TRIP SETTING Path: Menu> Press# +/- button>Alarm & Trip Setting. Press# Mode/Ack to enter sub menu. And use +/- buttons to set the parameter. SECURED MENU CODE-100(default) Parameter Meaning...
- Page 18 Temp comp Enable Enable battery temperature compensation Boost Enable Enable boost equalization Fahrenheit Enable Temperature unit configuration Genset Enable Enables automatic Genset changeover if mains is not present HVDC Enable High voltage inverter application Auto Batt Test Not for use Auto Start Enable inverter’s automatic starting Schedule Export...
- Page 19 SMS Prefix SMS Suffix Access PIN CODE Report period Log Period Total solar energy (in kWh) generated till Enable Solar kWh (Do not change default value) 8. AUTO SCHEDULE SETTINGS CAUTION! Do not change these settings yourselves without informing the servicing team. Incorrect settings may result in system breakdown.
-
Page 20: Appendix
Sets the minimum state of charge that the battery is allowed to operate to during scheduled grid Min SOC Export% disconnect and scheduled grid export operation. This prevents excessive battery cycling, extending battery life. The level at which inverter should stop feeding the Min SOC Island% load Sets the minimum number of minutes to inhibit the... -
Page 21: Pv Module Array Series-Parallel Arrangement
More is the current in any path, more are the losses. Hence always bother about the sizing (gauge and length) of higher current paths first. DC side losses are always higher than the AC side losses. Hence always give preference to minimize DC side losses through #1, #2 and #3. -
Page 22: Troubleshooting
No of MPPT Channels Per Channel PV Capacity (Nominal/ Peak) Max. Open Circuit PV Volts (Voc) MPPT Voltage Range PV Minimum Voltage Max I/P Amps per channel More are the number of modules in series, higher is the plant efficiency and higher is the generation from PV modules. But there is a limit to maximum number of modules mentioned in the inverter datasheet. - Page 23 The inverter The fault could have been caused by 4. Reduce your source high voltage voltage became the inverter voltage tolerance settings tolerance. The inverter may not high and out of being narrower than the source operate continuously at more than range.
- Page 24 eventually. 21. If fault continues contact Technical Support Cabinet ambient The inverter heat sink temperature on 22. Reduce the load for 15 minutes so temperature is this system is too high and the inverter that temperature can lower. high has shut down to protect itself again 23.
-
Page 25: How To Select Operating Mode Of Your Choice
The Inverter control is experiencing an 35. Contact our technical personnel. DC Offset excessively large DC offset. Communication The Inverter controller is not 36. Open front door and check is the COMMS fails communicating with the supervisory wire, FRC Cable for any loose or Fail system. - Page 26 11. In case of partial loads and battery charged, there are chances that PV power is available but not getting utilized. This will lead to poor PV generation as power export is not allowed. HYBRID MODE WITH EXPORT 1. Order of Priority is PV > Grid > Battery along with export of PV power allowed. 2.
- Page 27 No change in DKU Remove the jumper from Hybrid Hybrid JMP5 in CC21 (SEPL- with 24V1) Ref. below figure Export Only change No change in jumper Ac charge start: Hybrid with Off-Grid Off-Grid/Hybrid/Hybrid with Export Mode : 1.92 X Export Battery Voltage/2 Ac charger stop: Off-Grid : 2.39 X Battery Voltage/2;...
-
Page 28: Single Phase Energy Storage System Datasheet
5. SINGLE PHASE ENERGY STORAGE SYSTEM DATASHEET INVERTER (VA) 3000 5000 A. SOLAR CHARGE CONTROLLER (SCC) Charger Type & Topology Buck Type MPPT PV Total Nominal Capacity (W) 3000 5000 No of MPPT Channels Per Channel PV Capacity (W) (Nominal/ Peak) 3000/3300 5000/5500 Max. - Page 29 factor INVERTER RATING (VA) 3000 5000 D. PROTECTIONS Reverse Polarity, Surge Protection PV Side (Class D) Battery Side Reverse Polarity, Over/ Under Voltage, Current Limit Grid Side Over/ under Voltage, Over/ Under Frequency, Surge Protection (Class D) Load Side Overloads, Short circuit System Protection Over Temperature E.
-
Page 30: Warranty Claims
WARRANTY CLAIMS StatconEnergiaaPvt. Ltd warrants to the original purchaser provided the product is still in possession of used by the original purchaser from the date of purchase. The warranty stands on all parts (except LEDs, switches and external body) for ESS. ... - Page 31 5. Heavy soiling with dirt or dust 6. Transport damage 7. Changes to the product or repair attempts without prior approval from STATCON ENERGIAA. 8. Failure to comply with the applicable safety regulations. For more detail of ESS working visit our website and Watch presentation slide.
-
Page 32: Warranty Card
WARRANTY CARD NAME ADDRESS CITY STATE PHONE NO. PRODUCT NAME MODEL NO. DATE PERIOD OF WARRANTY. Yrs. STAMP SIGNATURE *valid under warranty claims Page 31 of 33... - Page 33 AVAILABLE PRODUCTS VARIANTS FOR SOLAR APPLICATIONS Single Phase Off-Grid Solar Inverter Telecom DC Hybrid System 3 Phase Central Grid Tie Inverters Intelligent String Monitoring Units 1/3 Phase Hybrid Solar Inverter Array Junction/Combiner Boxes 3 Phase String Inverters Energy Storage Systems Solar, Power, Defence &...
- Page 34 Page 33 of 33...
