- Page 1 Q-tron Audio Q-tron Audio PRE14B4 Pre-amplifier user manual Q-tron Audio 1(5) Manual PRE14B4R2 Page...
- Page 2 Q-tron Audio INTRODUCTION ....................3 CONTENT OF DELIVERY ..................3 UNPACKING ......................3 SETUP ........................3 FUNCTION ......................3 CONTROLS AND CONNECTORS ............... 3 Front panel............................3 Back panel ............................4 REMOTE CONTROL .................... 4 PERFORMANCE DATA: ..................4 CONTACT INFORMATION ................... 5...

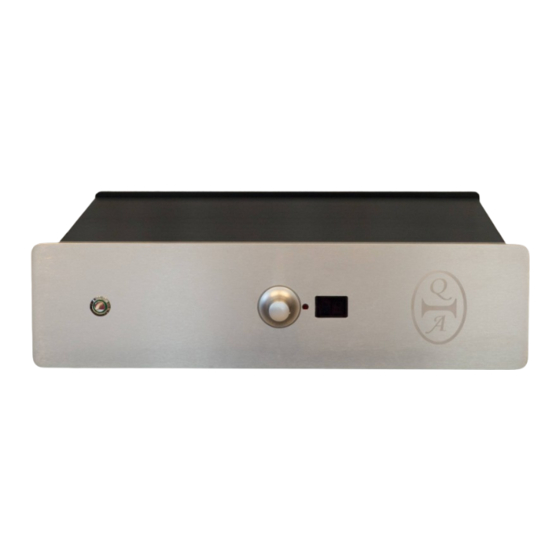

- Page 3 Q-tron Audio Fig 1 Front view Introduction PRE14B4 is a pre-amplifier with low output impedance and very high transparency, 4 select-able inputs and a relay-switched volume control built with discrete resistors Content of delivery Amplifier PRE14B4 Remote control Unpacking Put the box on a table or other steady surface. Open the box and put the amplifier on a steady surface with the front panel facing towards you.
- Page 4 Q-tron Audio Function The amplifier is equipped with RCA phono and XLR connectors for input and output signals. The active circuit in the amplifier is powered by an advanced power supply with controlled start-up sequences to prolong the tubes’ life and avoid any voltage transients on the output.
- Page 5 Q-tron Audio The power inlet accepts a standard power cord with an IEC320 plug. The 2 mains fuses can be accessed if the power cord is removed and the fuse cover/holder is removed, replace the fuses only with fuses of the same rating, (for 230VAC mains power fuse rating is 2A slow blow and for 120VAC mains power fuse rating is 4A slow blow).
- Page 6 1 output Gold plated XLR, 1 output Mains connector IEC320 socket with integrated Power switch Remote Control function Volume level, input channel selection, mute Weight 13kg Contact information Manufacturer Q-tron Audio Sweden www.qtron.se sales@qtron.se Q-tron Audio 6(5) Manual PRE14B4R2 Page...
