Hiltron security XM22K Manual

Console xm with key key

Table of Contents

Download this manual

security

Made in Italy

BT2014/35/UE

EMC2014/30/UE

Alphanumeric LCD display LCD backlit(2x16 caracters)

Protection tamper anti opening and tear-resistant

Color white

Input programmables 1

Reader for proximity key integrated

Buzzer

Power Supply 12Vcc ±5%

LED signalisation

Degree case protection IP40

Logic output of collector opened 30mA max. 1

Exterior case ABS

Degree security 1

Environmental Class 2

Dimensions (LxAxP) 107x141x25mm

Complies with standards CEI EN 50131-1

Installation

Don't install the console in places exposed at extreme temperatures or bad weather.

To fix the consolat a height that let an easy access to the frontal panel.

For a solide and accurate fixing ,it's essential make sure that the supporting surface is plain.

NOTES: The console are protected

in the covering zoneof a volumetric detector is a supplementary protection.

The fund of the consolle can be mounted on a

common mural box type "503".

For a tear-resistant protection,to fix

with the screw included

Lead free

RoHS

compliant

against tampering, but the installation in a protected local and eventually

XM22K

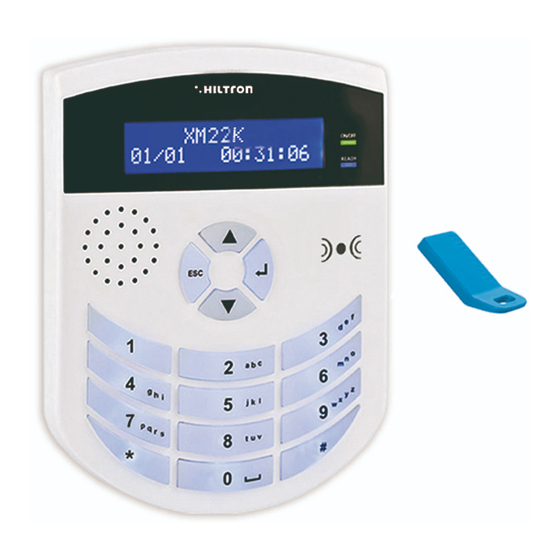

Console XM with key KEY

Close the screw like in the figure

to fix the cover with base

Table of Contents

Do you have a question about the XM22K and is the answer not in the manual?

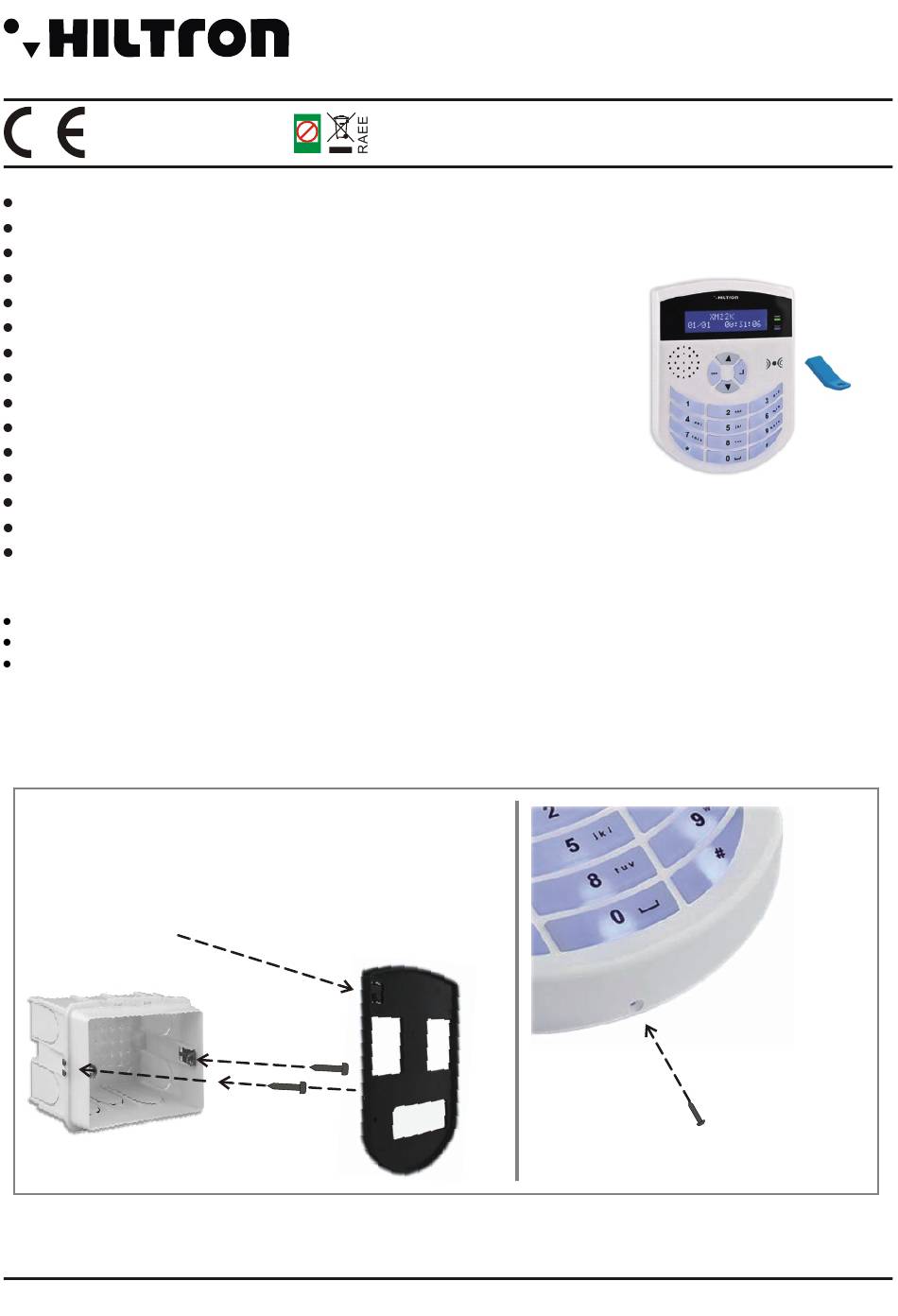

Page 1 XM22K security Made in Italy Lead free Lead free Lead free Lead free BT2014/35/UE Console XM with key KEY RoHS RoHS RoHS RoHS EMC2014/30/UE compliant compliant compliant compliant Alphanumeric LCD display LCD backlit(2x16 caracters) Protection tamper anti opening and tear-resistant...
Page 2 '+ EXT and 'GND' that feed multiplexer line Key reader XM22K (Type 08) The console XM22K is composed of a proximity key reader : For use it it’s necessary to connect also the blue cable on the Multiplexer line.
Page 3 Functioning LED On the console XM22K two LED indicate normally the status of inserter inside. If is pressed an any botton two LED indicate,instead, the status of the console for 5 seconds.
Page 4 XM22K - Console XM with key KEY security Console Table XM22K (Type 04) The following table shows what are the main functions of Type 04 PARAMETERS ENABLING DESCRIPTION SERIAL FUNCTION STATUS MPX NO ONE ERROR LINK MPX DISCONNECTION TAMPER / INPUT 24H CONNECTION POLAR.
