Summary of Contents for G-Homa 15UKD/3A

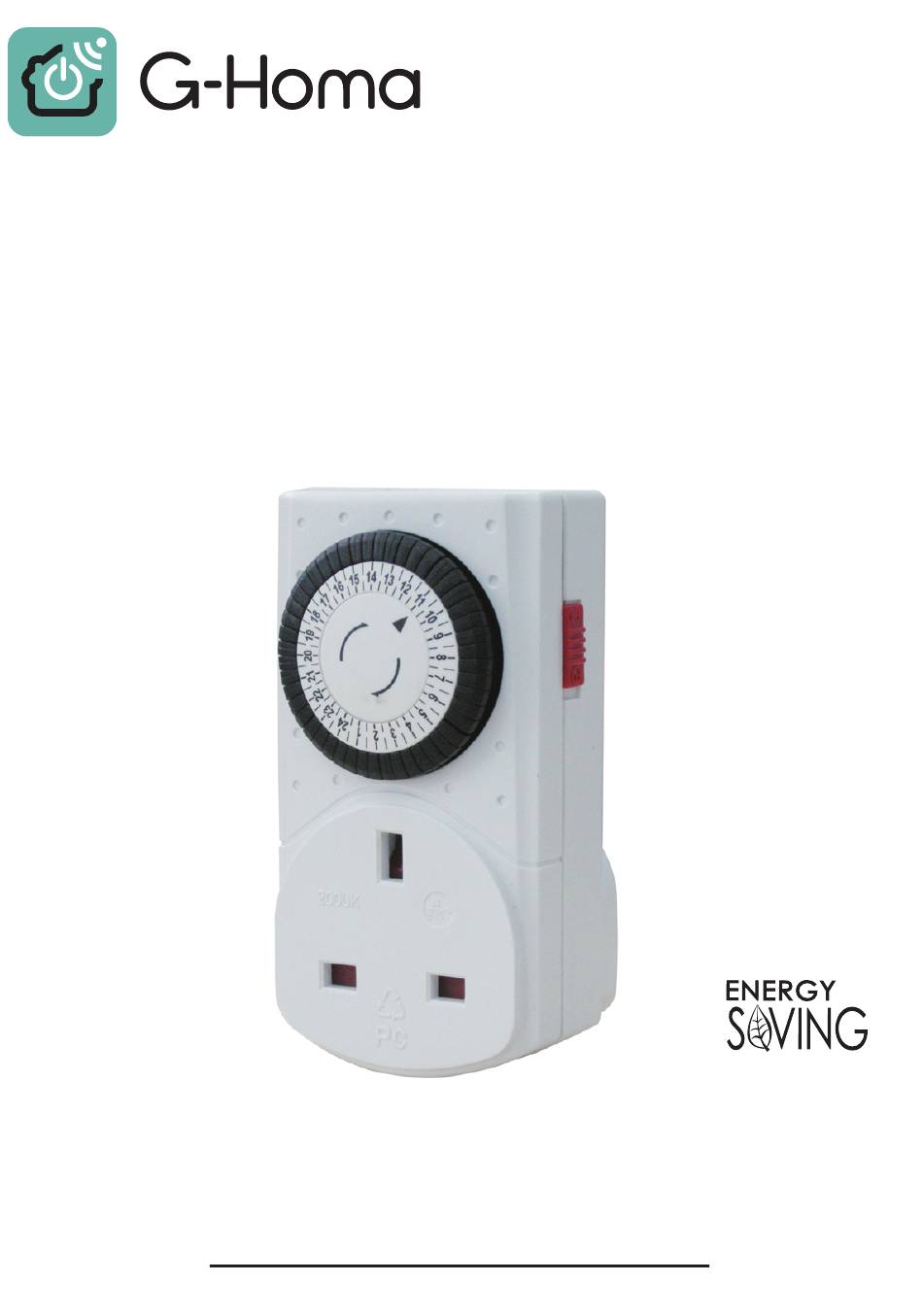

- Page 1 PRODUCT #15UKD/3A 24 HOUR MECHANICAL TIMER Please keep this handbook www.g-homa.com...
- Page 2 Operating Instructions 15GD/3A 17GD/3A 18GD/3A Daily Plug-in Mechanical Timer PRODUCTS VIEW Clock Dial: Arrow: Slide Switch: Push Pins: Socket: Clock Dial: Black Part=12PM-12AM Hours, White Part=12AM-12PM Hours. Arrow: Indicates the current time of day. Slide Switch: Slide the switch up to "ON" position; Slide the switch down to "...
- Page 3 1. Setting the On/O periods Daily Plug-in Timer: This timer can set up to 24 On/O commands a day. Using your finger, a pen or screwdriver Fig 1. Pull up pull up all the segments that correspond to the desired “O ” period. For the desired “On”...
- Page 4 4. Manual On/O The pre-set On/O commands can be interrupted by using the manual override switch located on the side of the unit. When switched to the position I, the connected appliance Fig 5 is switched on permanently. 5. Specifications Power Supply: 230V~, 50Hz Capacity: 13A resistive load Min.
- Page 5 Copyright 2021 G-Homa G-Homa and the G-Homa Logo are trademarks of EverFlourish Global Development Co., Ltd. or www.g-homa.com E-mail: support@g-homa.com...
