Summary of Contents for TMS LC-18-4CH-KP1

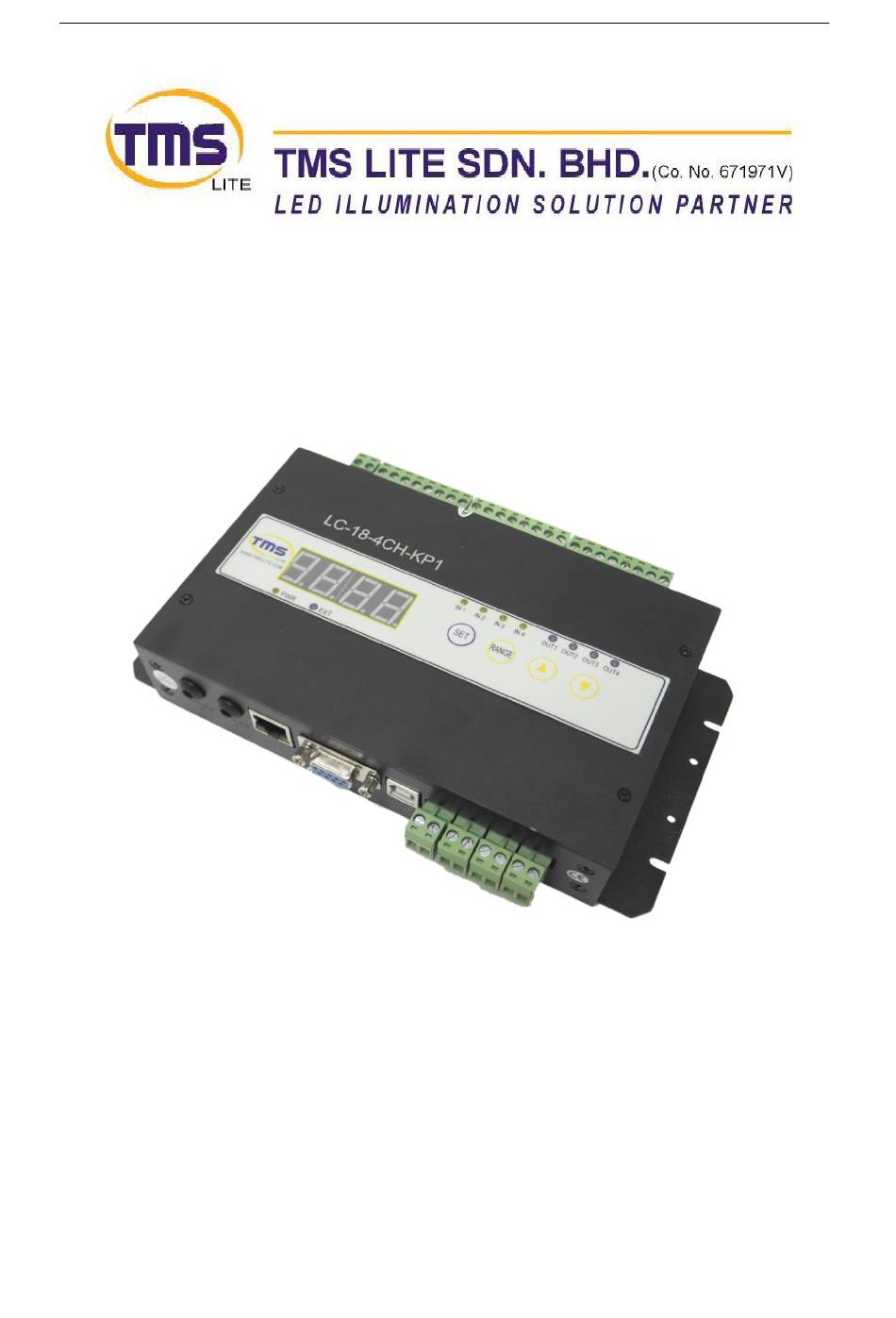

- Page 1 TMS Lite LC-18-4CH-KP1 ________________________________________________________ ________________________________________________________ LC-18-4CH-KP1 Lighting Controller Unit USER MANUAL...
-
Page 2: Table Of Contents
TMS Lite LC-18-4CH-KP1 Table of Contents General Description ..........................2 Specification ............................2 Connectors Description........................... 3 Operation Mode ............................. 5 Constant Mode ........................... 5 Strobe Mode ............................5 Trigger Mode ............................6 Current Multiplier ........................... 6 Control Mode ............................7 Manual Control ............................ -
Page 3: General Description
LC-18-4CH-KP1 General Description The LC-18-4CH-KP1 controller provides intensity control of LED lightings for machine vision applications. The controller consists of 4 channels with individual settings for each channel. There are 3 modes of operation provided to support different types of application. This controller has built in display and keypads for manual control. -
Page 4: Connectors Description
TMS Lite LC-18-4CH-KP1 Connectors Description Terminal Function 7-Segment Display Display for manual setting PWR Indicator Controller power indicator EXT Indicator Manual/External mode indicator Button (SET, RANGE, Buttons for manual setting UP, DOWN) IN Indicator Input signal indicator OUT Indicator Output signal indicator... - Page 5 TMS Lite LC-18-4CH-KP1 Terminal Function POWER INPUT + Controller Power Supply + Controller Power Supply – POWER INPUT - LIGHT INPUT + Power Supply for Lighting + LIGHT INPUT – Power Supply for Lighting – IN + External Input + IN –...
-
Page 6: Operation Mode
TMS Lite LC-18-4CH-KP1 Operation Mode Constant Mode Constant mode offers continuous lighting intensity control. Lighting intensity is controlled using constant current technique. Brightness can be adjusted from fully off to fully on in the range of 0 – 255. Strobe Mode Strobe mode provides short interval triggering for applications that require high intensity and high precision. -
Page 7: Trigger Mode
TMS Lite LC-18-4CH-KP1 Trigger Mode Trigger mode provides most flexibility for variable timing light output. The light output ON when input trigger signal received and OFF when no input signal. External Trigger Lighting Strobe Current Multiplier Current Multiplier setting provides more precise control of lighting intensity for lightings with different current ratings. -
Page 8: Control Mode
LC-18-4CH-KP1 Control Mode The LC-18-4CH-KP1 lighting controller can be controlled using either the display panel or external control (RS232/USB/TCPIP), but both controls cannot be used at the same time. The LED labeled “EXT” is an indicator of which control is in use: 1) LED turned on –... -
Page 9: Manual Control
TMS Lite LC-18-4CH-KP1 Manual Control Button In Manual Control Mode, the 4 Buttons (Set, Range, Up and Down) are used for setting the controller’s parameter. Button Function Select and Set parameter RANGE Moving digits when setting parameter Increase parameter value... -
Page 10: Setting Up Using Display Panel
TMS Lite LC-18-4CH-KP1 Setting up using Display Panel Idle State Press and hold SET for about one second Use UP and DOWN to select channel (CH1 to CH4) Press SET` Use UP and DOWN to select the current multiplier (1 to 10 which equals to 10 –... - Page 11 TMS Lite LC-18-4CH-KP1 Press SET Output Delay Press SET Output Width Press SET Back to Idle State...
-
Page 12: Setting Up Tcpip Parameters
TMS Lite LC-18-4CH-KP1 Setting up TCPIP Parameters Idle State Press and hold SET for about one second Press RANGE Press RANGE Select “TCP” for IP Address Setting Press SET Press SET Press SET Setting for: - IP Address - Subnet Mask... -
Page 13: Input Signal
TMS Lite LC-18-4CH-KP1 Input Signal Input signal is used to turn on the lighting under Strobe/Trigger mode. The lighting output is turned on after a delay time defined by Strobe Delay, while the turn on duration is defined by Strobe Width. -
Page 14: Drawing Dimension
TMS Lite LC-18-4CH-KP1 Drawing Dimension... -
Page 15: Communication Protocol
TMS Lite LC-18-4CH-KP1 Communication Protocol 1. Communication Setting COMPORT Baud Rate = 115200 Data Bits = 8 Parity = None Stop Bits = 1 TCPIP Default IP: 192.168.0.100 Default Subnet Mask: 255.255.255.0 Default Gateway: 192.168.0.1 Port No: 80 USB - HID... - Page 16 TMS Lite LC-18-4CH-KP1 2. Command Message Format (ASCII) Write ZZZZ Starting Board Channel Command Open Close Bracket Data Byte Address Code Bracket (End Byte) Read Starting Board Channel Command Open Close Bracket Byte Address Code Bracket (End Byte) Return Message...
- Page 17 TMS Lite LC-18-4CH-KP1 3. Write Command List Command Code (YY) Command Description Data No. of Byte 0 = Constant Set Channel Mode 1 = Strobe 2 = Trigger Set Current Multiplier 1-10 Set Intensity 0 - 255 0 – 9999 Set Strobe Delay (99.99ms)
- Page 18 TMS Lite LC-18-4CH-KP1 4. Read Command List Return Command Code (YY) Command Description Data (ZZZZ) No. of Byte 0 = Constant Read Channel Mode 1 = Strobe 2 = Trigger Read Current Multiplier 1-10 0 – 255 Read Intensity 0 – 9999 Read Strobe Delay (99.99ms)
- Page 19 TMS Lite LC-18-4CH-KP1 Example Write Board Address = 0 1) Set CH1 to constant mode Tx > @01SM{0} Rx < @01SM{0} (Success) 2) Set CH1 to strobe mode Tx > @01SM{1} Rx < @01SM{1} (Success) 3) Set CH1 Intensity = 90 Tx >...
- Page 20 TMS Lite LC-18-4CH-KP1 Read 1) Read CH1 mode = Constant Tx > @01RM{} Rx < @01RM{0} (Success) 2) Read CH1 Current Multiplier = 2 Tx > @01RR{} Rx < @01RR{02} (Success) 4) Read CH1 Intensity = 150 Tx > @01RI{} Rx <...
