PHYWE 11207-30 Quick Start Manual

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
D-37079 Göttingen
Phone +49 (0) 551 604-0
Fax +49 (0) 551 604-107
E-mail info@phywe.de
Internet www.phywe.com
Operating instructions
The unit complies with
the corresponding EU
guidelines.
CONTENTS
1

SAFETY PRECAUTIONS

2 Purpose And Description
3 Functional And Operating Elements
4 Handling
5 Notes On Operation
6 Technical Specifications
7 Waste Disposal
www.phywe.com, © All rights reserved

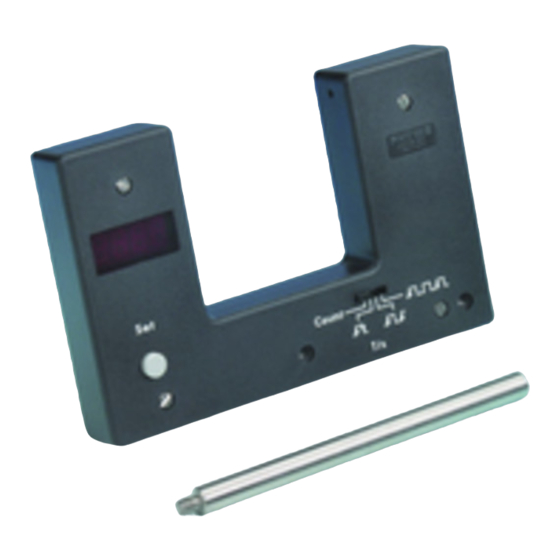

Light barrier with counter
Fig. 1: Light barrier with counter 11207-30.
1 SAFETY PRECAUTIONS
Attention!
Carefully read these operating instructions completely
•
before operating this instrument. This is necessary to
avoid damage to it, as well as for user-safety.
Only use the instrument for the purpose for which it was
•
designed.
Only use the instrument in dry rooms in which there is no
•
risk of explosion.
Protect the instrument from dust, moisture and vapours.
•
Only clean it in voltage-free state with a slightly
moistened, lint-free cloth. Aggressive cleaning agents
and solvents are unsuitable.
Do not open the unit.
•
Do not connect any other pieces of equipment other than
•
those specified to the instrument.
The optical path is composed of non-visible infrared radi-
•
ation. Do not look into the emitter (optical path).
11207-30
1
11207-30 / 0218
